Dimension drawings
10.4 SIWAREX WL260 SP-S SA
SIWAREX WL200
Operating Instructions, 07/2016, A5E02199611B-03
71
10.4
SIWAREX WL260 SP-S SA

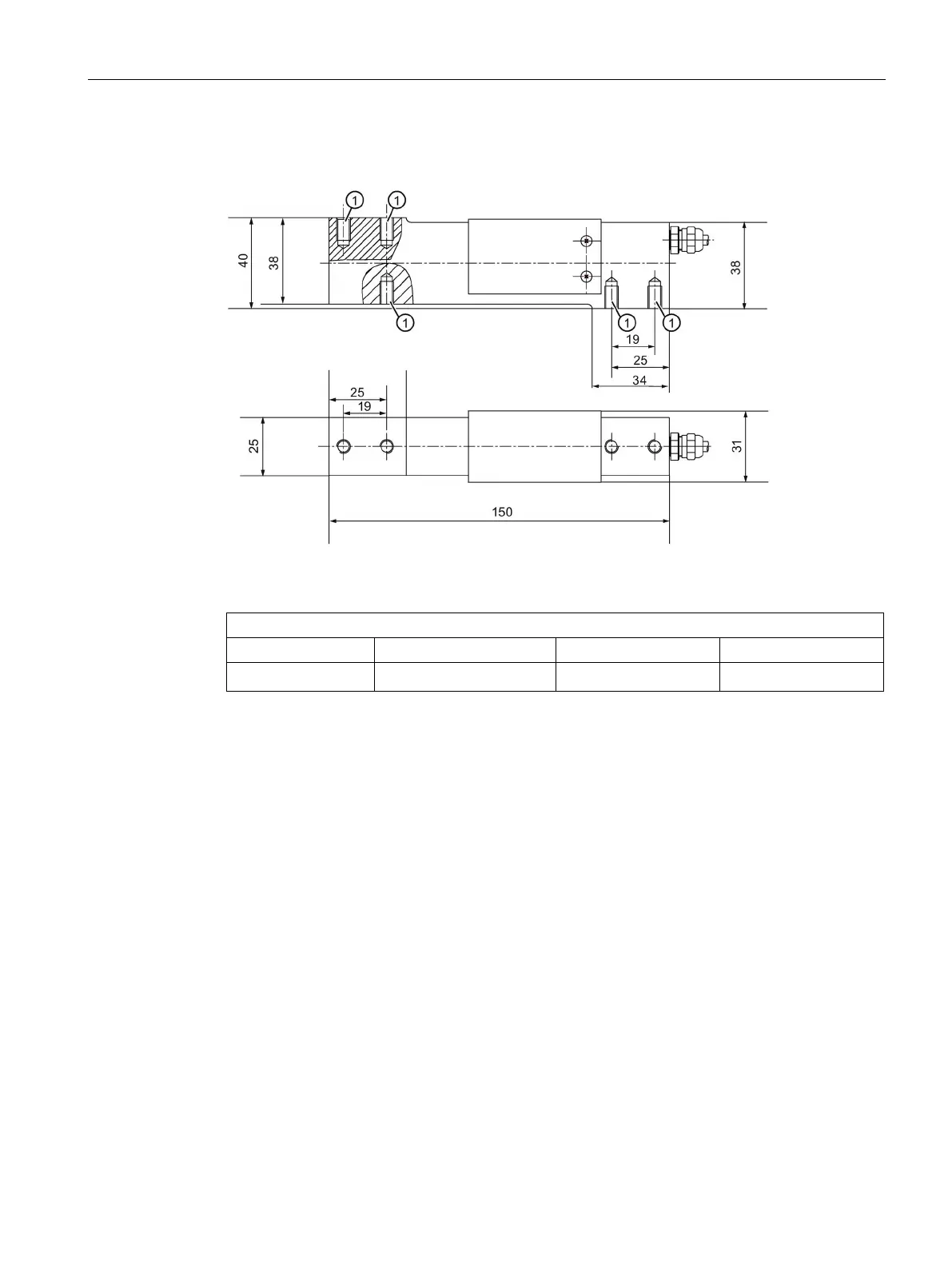

Figure 10-4 SIWAREX WL260 SP-S SA dimension drawing
Threaded holes
Designation
Thread
Thread depth
Hole depth
①
M6 15 mm 18 mm
