Siemens Vector Control User Manual

Installation in Conformance with EMC Regulations 05.2006
6SE7087-2JD60 Siemens AG
6-4 Operating Instructions SIMOVERT MASTERDRIVES
~
=
~
=
Control
Cabinet 1 Cabinet 2 Cabinet 3
Grounding rail
Rule
19
Rule 8
Rule 12
Netz
*) *)
Z
Fig. 3.5.3
Fig 3.5.4
Fig. 3.5.6
Rule 2
Rule
4, 5, 7
Rule
9, 10
Rule 16
Rule
17
Rule
13
Fig. 3.5.2
*) Keep the radio interference
suppression filters away from
SIMOVERT MASTERDRIVE
S
air discharge duct, e.g. by
mounting at another level
Z
Shield connection
Rule
14
Netz

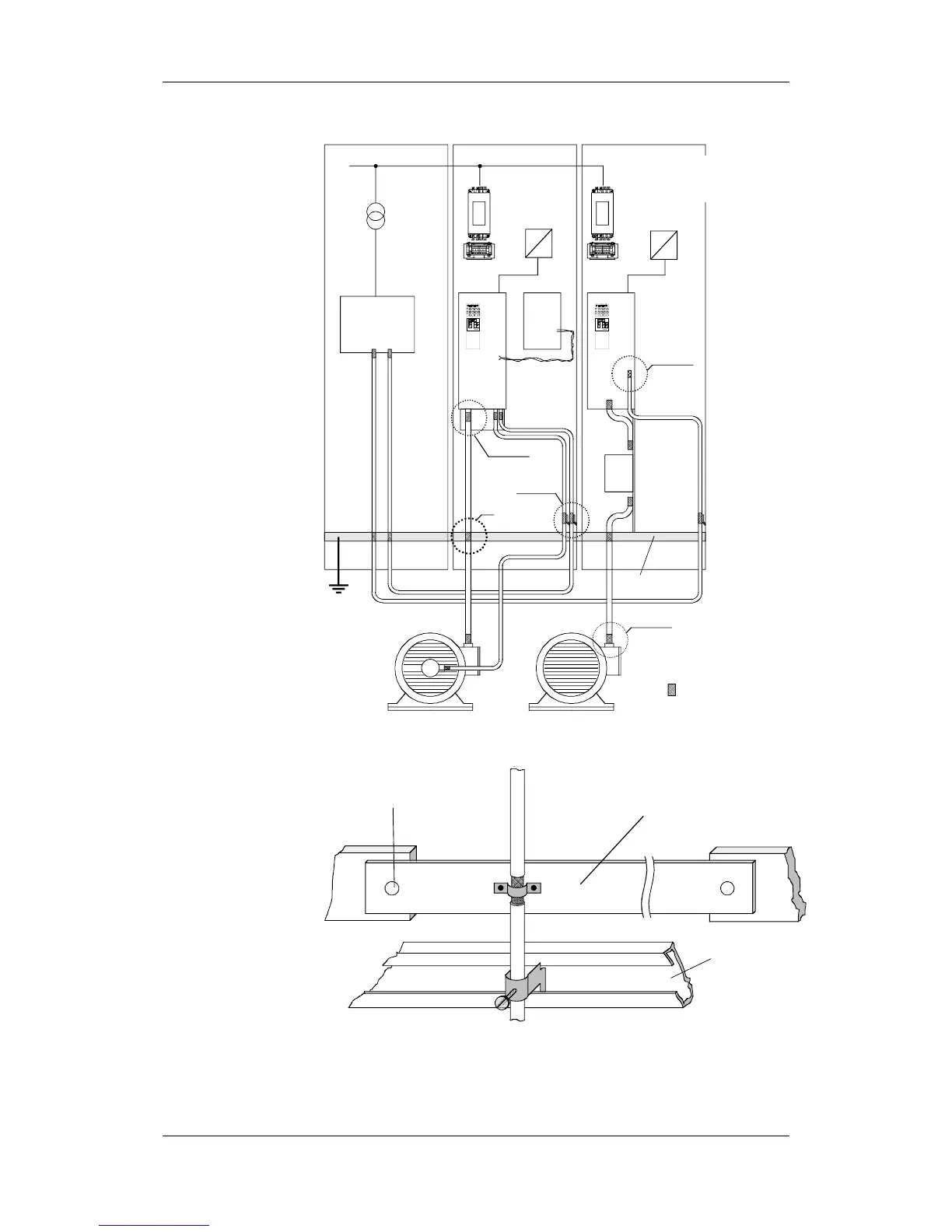

Fig. 6-1 Examples for applying the basic EMC rules
Cable retaining bar
Connect at both ends to the
cabinet housing through the
largest possible surface area!
Shield rail
Fig. 6-2 Connecting the motor cable shield where the cable enters the cabinet
