8.4 Parameter input via the PMU
The PMU parameterizing unit enables parameterization, operator
control and visualization of the converters and inverters directly on the
unit itself. It is an integral part of the basic units. It has a four-digit
seven-segment display and several keys.
The PMU is used with preference for parameterizing simple
applications requiring a small number of set parameters, and for quick
parameterization.
X300
ON key
OFF key
Lower key
Toggle key
Raise key
Reversing key
Seven-segment display for:
Drive statuses
Alarms and
faults
Parameter numbers
Parameter indices
Parameter values

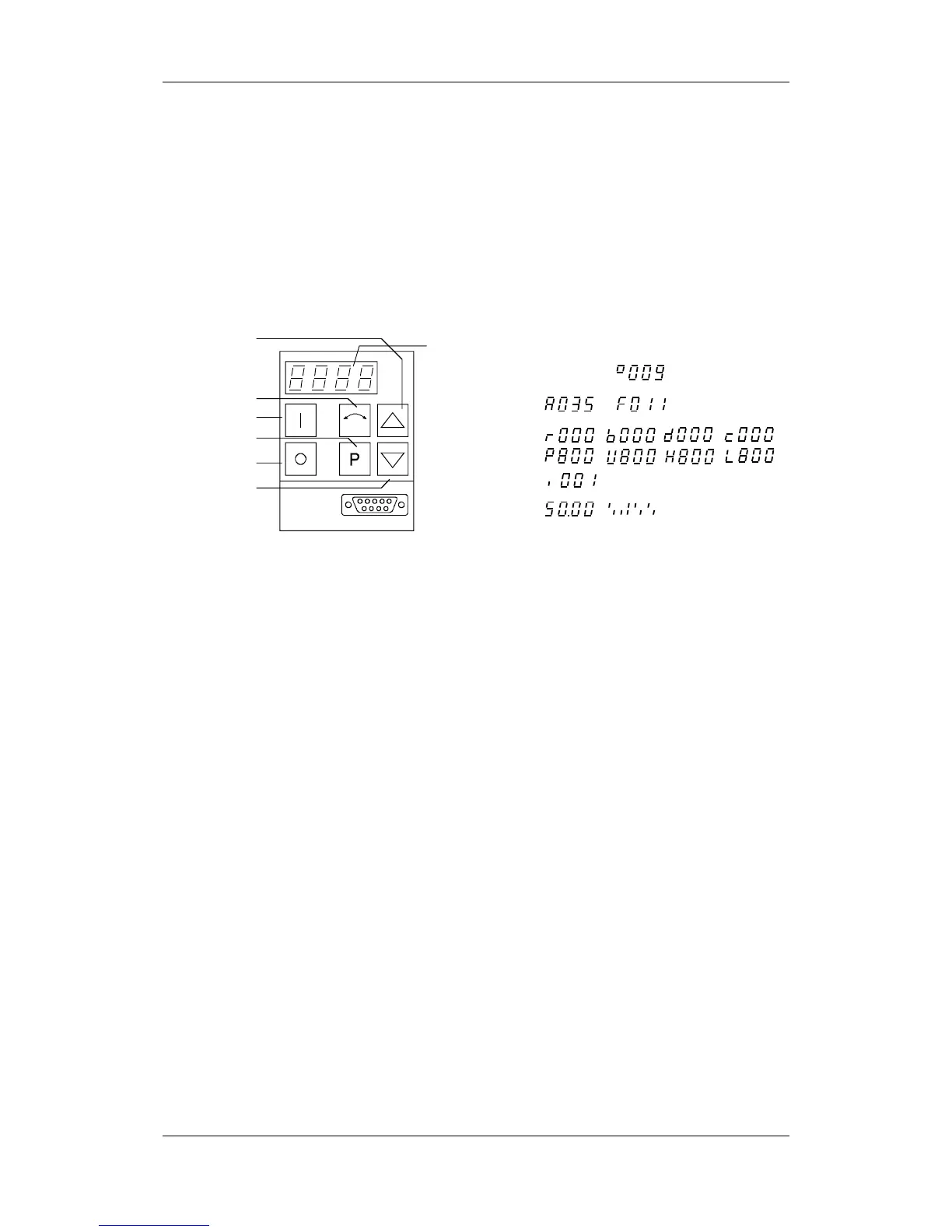

Fig. 8-14 PMU parameterizing unit
