05.2006 Parameterization
SIEMENS AG 6SE7087-2JD60
SIMOVERT MASTERDRIVES Operating Instructions 8-17
8.3.3.2 General diagnostics
Via the Diagnostics
Æ General diagnostics menu the following window
opens. This window gives a general overview of the active warnings
and faults and their history. Both the warning and the fault number as
well as plain text are displayed.

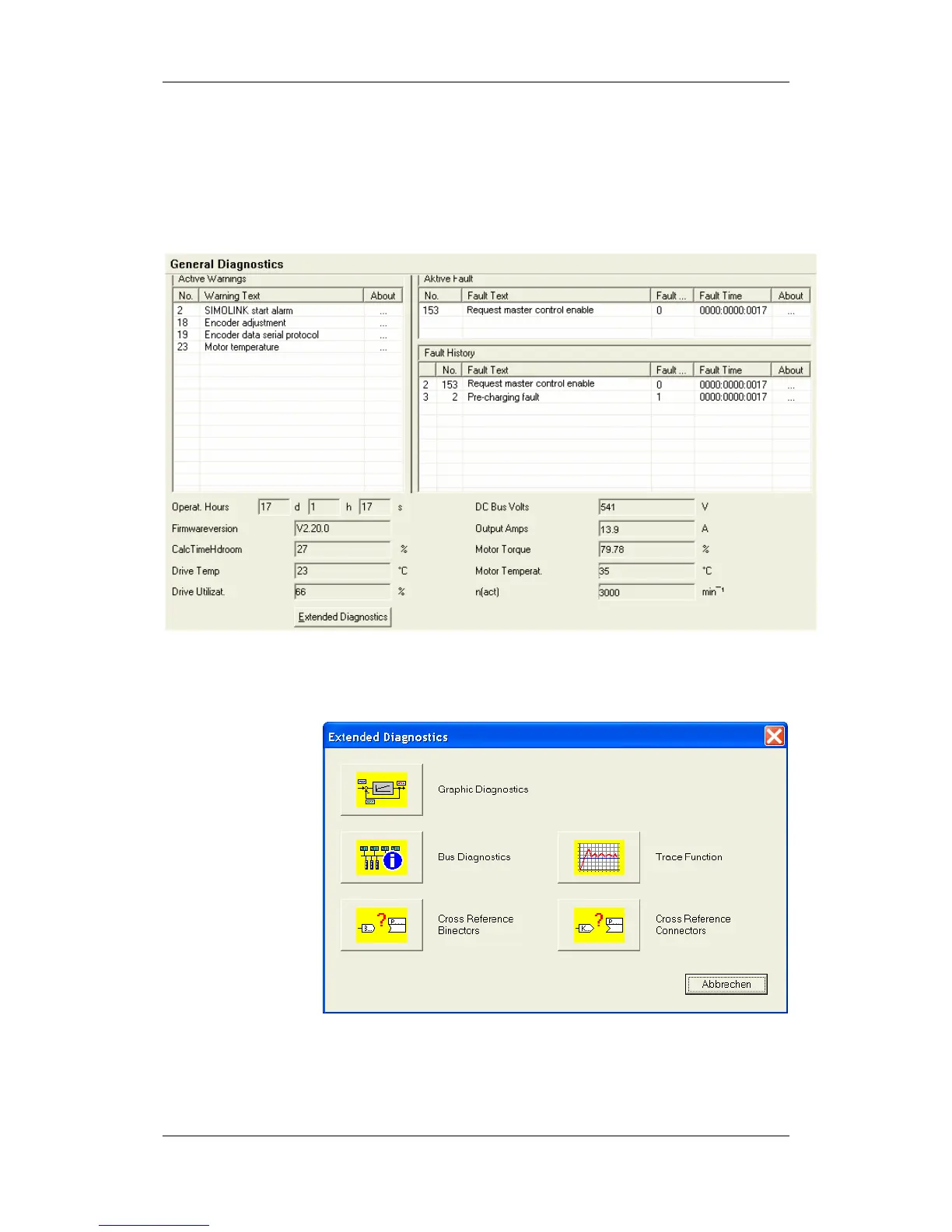

Fig. 8-12 General diagnostics
Via the Extended Diagnostics button you can reach the next
diagnostics window.
Fig. 8-13 Extended diagnostics
