Siemens Vector Control User Manual

Parameterizing Steps 05.2006
6SE7087-2JD60 Siemens AG
9-2 Operating Instructions SIMOVERT MASTERDRIVES
Detailed parameterization should always be used in cases where the
exact application conditions of the units are not known beforehand and
detailed parameter adjustments need to be made locally, e.g. on initial
start-up.
The description of detailed parameterization in section 9.4 is divided
into the following main steps:
1. Power section definition (P060 = 8)
2. Board definition (P060 = 4)
3. Drive definition (P060 = 5)
4. Function adjustment.
Motor
Motor
encoder
Supply
conditions
Optional
boards
Power sections
CUVC
Power section definition
(P060 = 8)
Drive setting
(P060 = 5)
Function adjustment
As-delivered state
Parameterizing with existing parameter files (download, P060 = 6)
Parameterizing with parameter modules(quick parameterization, P060 = 3)
Parameterizing with user settings (fixed setting, P060 = 2)
Factory settings (parameter reset) (P060 = 2)
Board configuration
(P060 = 4)
Procedures for
quick parameterization
Detailed
parameterization

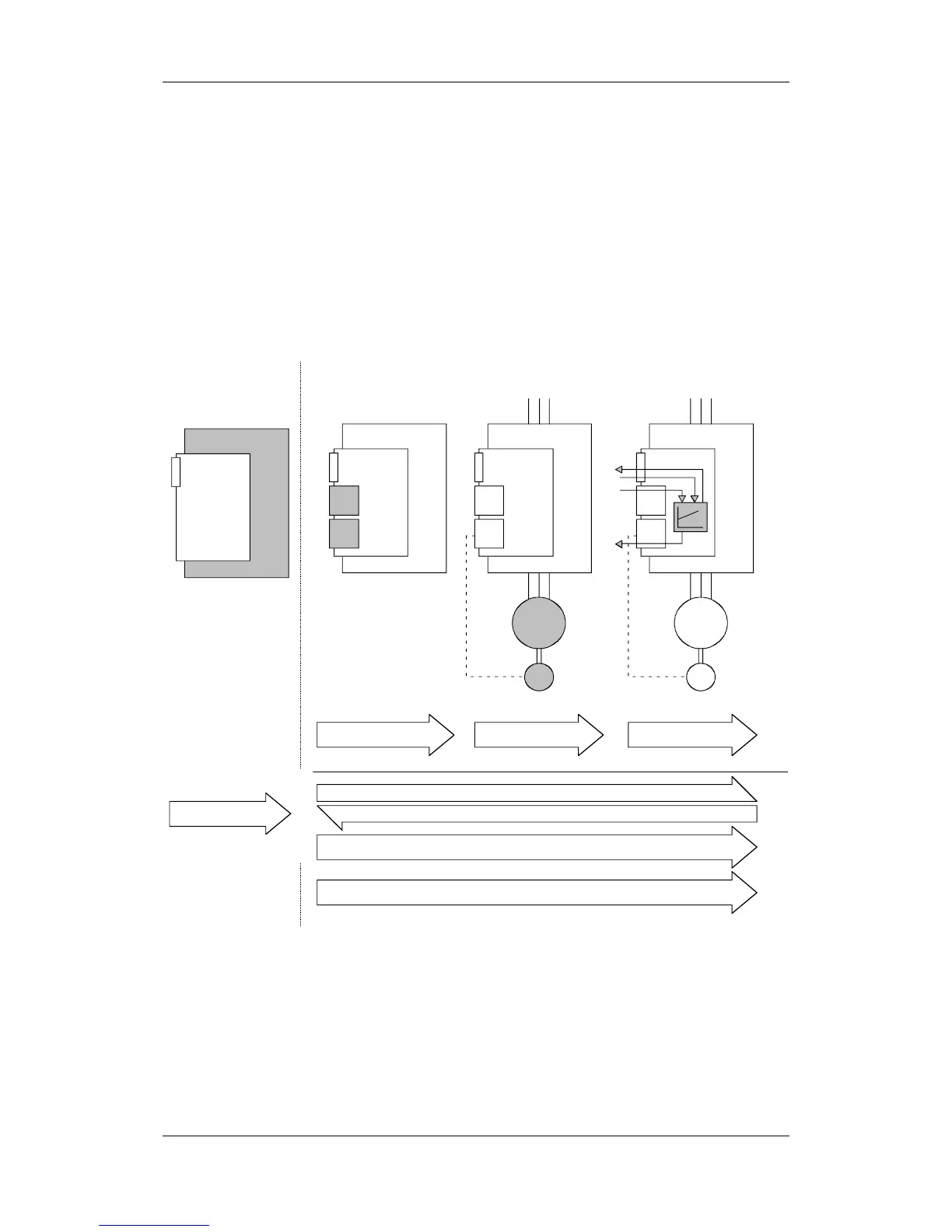

Fig. 9-1 Detailed and quick parameterization
