Siemens Vector Control User Manual

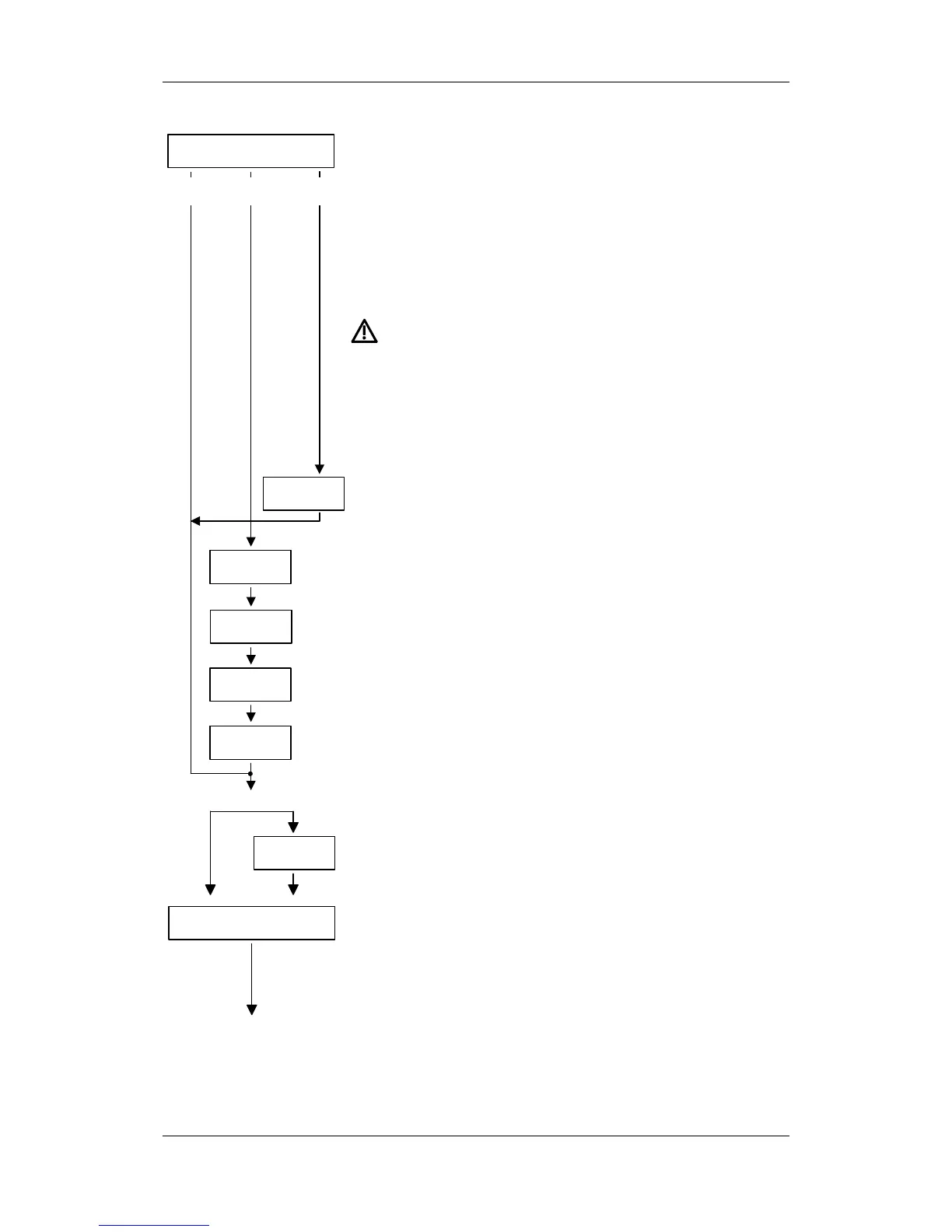

05.2006 Parameterizing Steps
Siemens AG 6SE7087-2JD60
SIMOVERT MASTERDRIVES Operating Instructions 9-55
Select the motor encoder
5: External SBP board
10: Without motor encoder
11: Pulse encoder (default if P095=2, P097>0)
12: Pulse encoder with control track
13: Analog input 1
14: Analog input 2
15: Pulse encoder with zero track
16: Pulse encoder with zero and control track
P130 = ?
P151 = ?
Enter the pulse number/revolution of the pulse encoder
P130 =
10,13,14
P130 =
11,12,15,16
P131 = ?
Select TmpSensor
0: KTY84 (evaluation via P380/P381)
3: PT100 (evaluation only possible for SBP)
P139 = ?
Configuration of setpoint encoder
P140 = ?
Setpoint encoder pulse number
P141 = ?
Reference frequency of setpoint encoder
P130 =
5
WARNING
Please check that the encoder has been connected
correctly!
Pulse encoder: Do not mix up tracks A and B!
Analog tachometer: Check voltage polarity (direction of
rotation) and amplitude!
In the event of faults the drive may involuntarily race to
maximum speed! For testing the encoder see parameter
P115=7 and P115=3 and 4.
P100 =
0,1,2
P330 = ?
Characteristic 0: Linear characteristic (constant torque drives)
1: Parabolic characteristic (fans/pumps)
P339 = ?
Release the edge modulation systems (FLM)
0: All systems
1: Edge modulation systems from 60 Hz
2: Edge modulation systems from 100 Hz
3: No edge modulation systems
4: Overmodulated space vector modulation
