Siemens XC1005-A User Manual

Accessories
52
Building Technologies A6V10257473_e_en_--
Fire Safety 2015-03-04
Technical data:
- Power supply voltage range: 8 … 30V
- Current consumption:
- standby condition: 12 mA
- alarm condition: 20 mA
- Operating / Storage temperature: -5°C … +40°C / -10°C … +60°C
- IP rating: IP40
- Dimensions (l x h x p) : 210 x 200 x 48 mm
- Weight : XT1001-A : 510 g / XT1002-A : 625 g
9.4.2 User interface

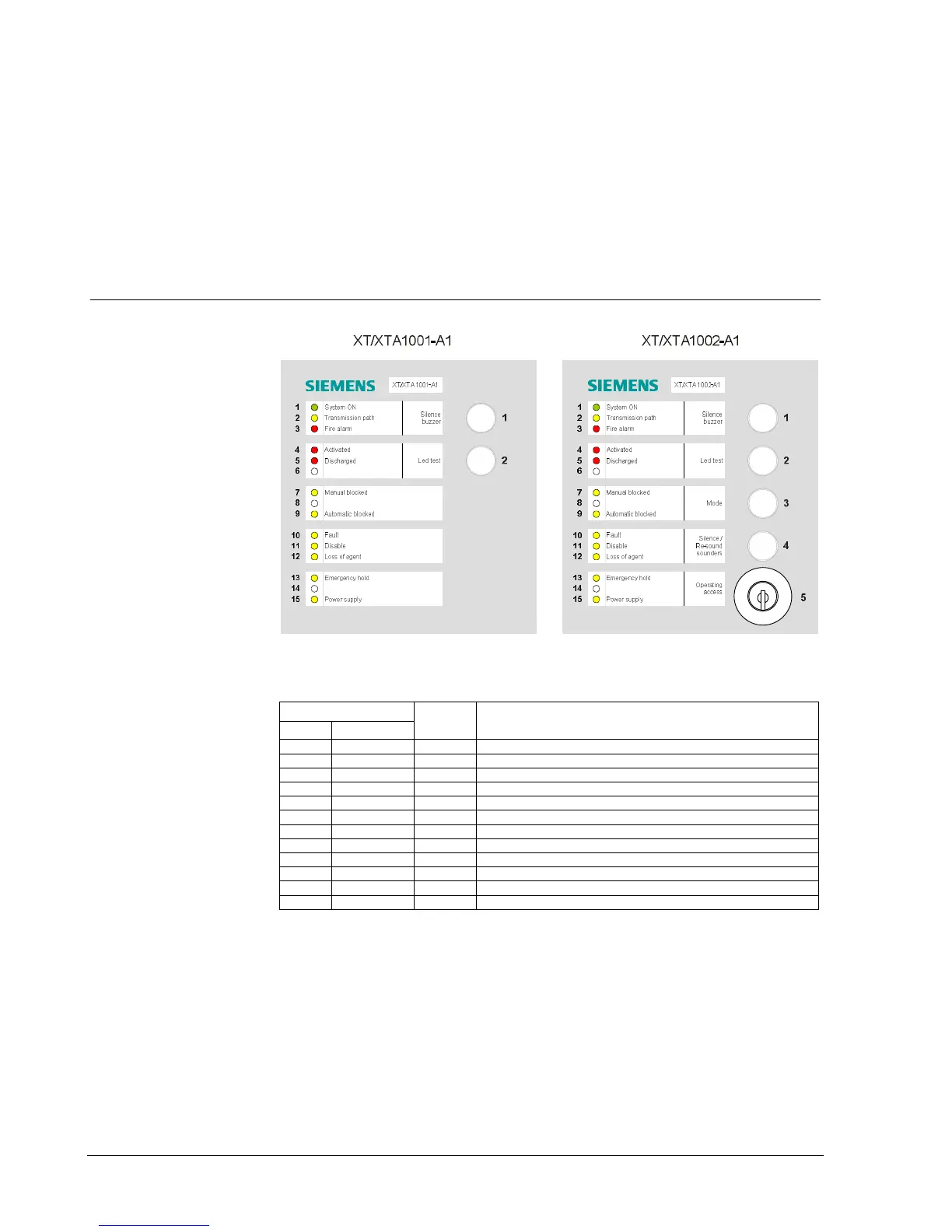

Fig. 36 XT/XTA1001-A1 – XT/XTA1002-A1 user interface
Led
Etat Description
N° Color
1 Green On Repeater is powered
2 Yellow On Communication fault with the XC10
3 Red - Image of the led (8) of the XC10
(1)
4 Red - Image of the led (17) of the XC10
(1)
5 Red - Image of the led (18) of the XC10
(1)
7 Yellow - Image of the led (14) of the XC10
(1)
9 Yellow - Image of the led (16) of the XC10
(1)
10 Yellow - Image of the led (2) of the XC10
(1)
11 Yellow - Image of the led (6) of the XC10
(1)
12 Yellow - Image of the led (13) of the XC10
(1)
13 Yellow - Image of the led (24) of the XC10
(1)
15 Yellow On Power supply fault
(1)
see paragraph 4.6 « User interface »
