Siemens XC1005-A User Manual

Accessories
53
Building Technologies A6V10257473_e_en_--
Fire Safety 2015-03-04
Key N° Description
1
Silence internal buzzer
è Operating access level required for this operation: level 1 or level 2
è This operation silences the repeater buzzer only, not the XC10 buzzer
2
Led and buzzer test (duration = 5 seconds):
All led indicators are switched on and the internal buzzer sounds continuously
è Operating access level required for this operation: level 1 or level 2
è This operation starts the repeater led test only, not the XC10 led test
3
Remote control of the XC10 «
Mode of operating
», by successive pressing:
– 1st pressing: automatic blocked
– 2nd pressing: automatic and manual blocked
– 3rd pressing: normal mode
è Operating access level required for this operation = level 2
è Status indication on XC10 is automatically updated
4
Remote control of the XC10 «
Silence / Re
-
sound sounders
», by successive pressing:
– 1st pressing: silence sounders
– 2nd pressing: restart sounders
– 3rd pressing: silence sounders
– etc
è Operating access level required for this operation : level 2 (silence sounders is not
possible during pre-discharged warning time)
è Status indication on XC10 is automatically updated
5
Operating access level is selected with the KABA key:
- key on the vertical position: operating access level 1
- key on the horizontal position: operating access level 2 (in this position, the key cannot
be removed)
9.4.3 Mainboard

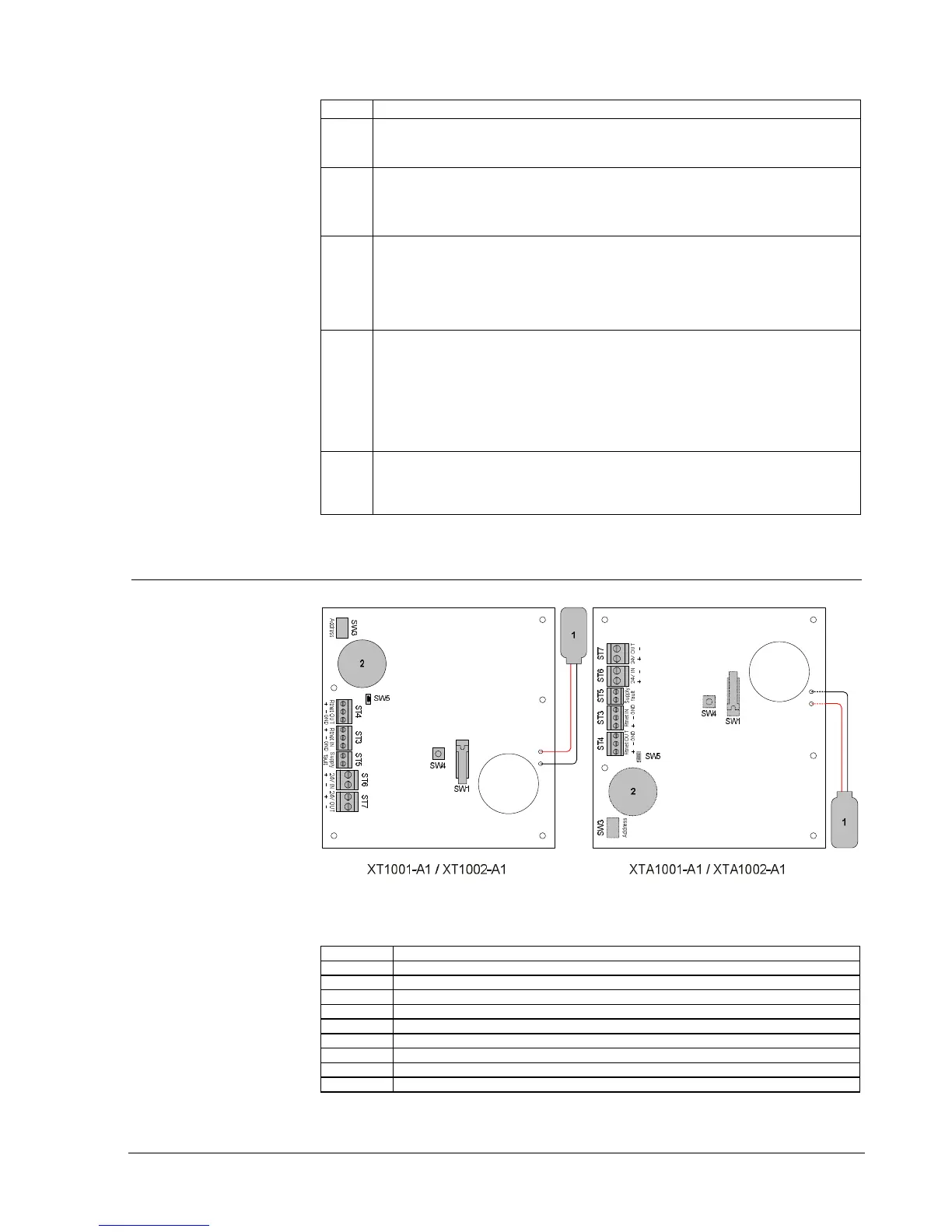

Fig. 37 XT/XTA1001-A1 – XT/XTA1002-A1 mainboard
Id Function
SW1 Switch for operating access level 2 (XT/XTA1002-A1 only)
SW3 Rotary switch for selection of the repeater address
SW4 Reset
SW5 RTNet end of line element (factory setting: ON)
ST3 / ST4 RTNet (RS485)
ST5 External power supply fault
ST6 / ST7 24V power supply
1 9V battery connector
2 Internal buzzer
