System Features
The front of the Uscan tablet display and probe are shown in Fig 1.3. The Uscan handheld display contains the
features in Fig 1.3 except the dock connector but may differ from the layout shown.

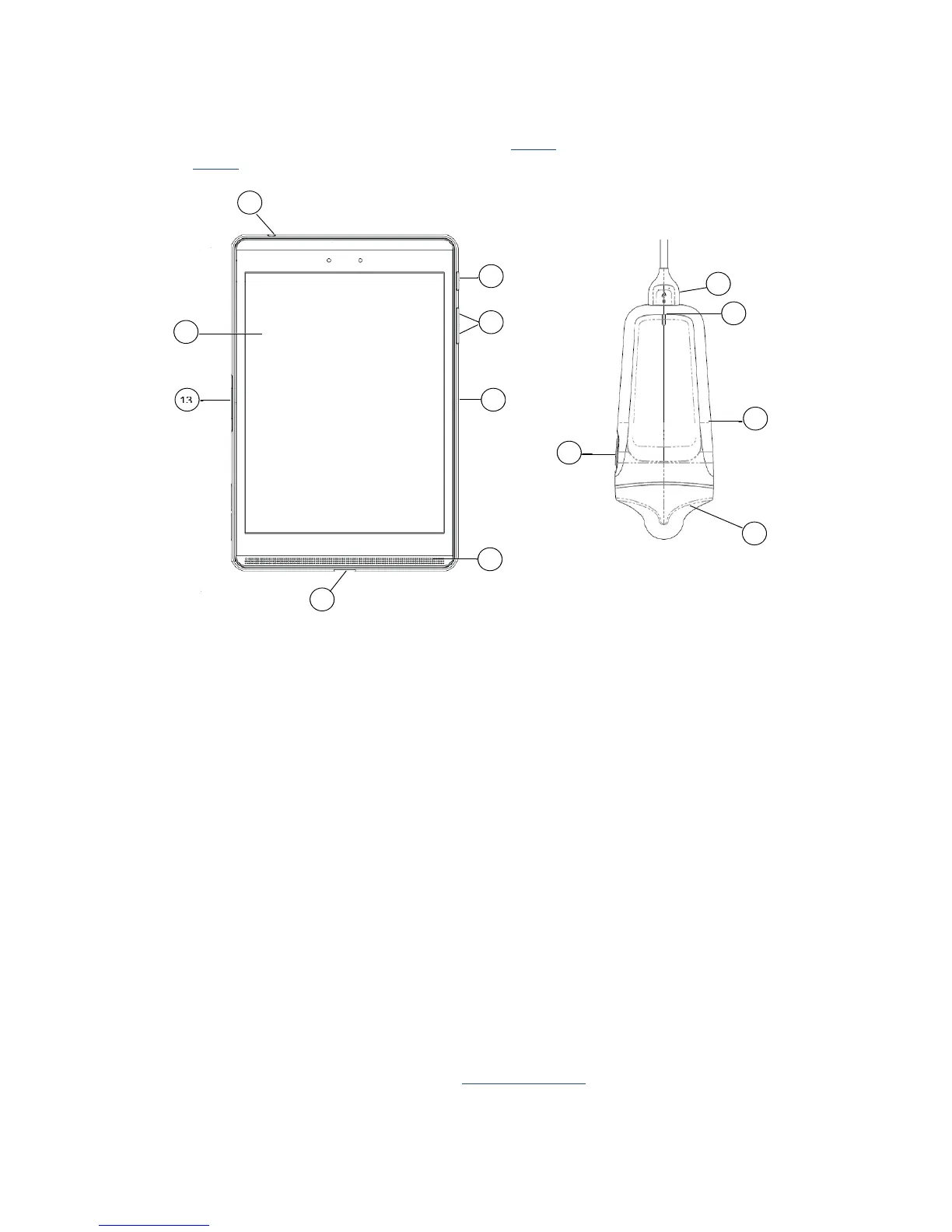

Fig 1.3 System Features
1 Audio output/Audio input 8 USB Connector
2 Touch screen 9 Power LED
3 Power On/Off 10 Over-mold
4 Volume Up/Volume Down 11 Transducer
5 Microphone 12 Scan button
6 Speaker 13 Dock Connector
7USB port
Camera for bar code scanning is on the rear of the display.
Classifications
The Uscan is internally battery powered during scanning.
The Signostics Power Supply P003198 classification for Protection against electric shock: Class II
equipment.
The B3-5 Sector (P004200) transducer is: Type BF Applied Part.
The Uscan probe is classified as IPX1.
The Uscan is not for use within an oxygen rich environment.
The Uscan is suitable for non-continuous operation (Mode of Operation (page 41)).
