Sime BRAVA ONE BF - Plumbing and Gas Connections

62
EN
m
CAUTION
– The height of the boiler is to be such that disassembly
and maintenance interventions are facilitated.

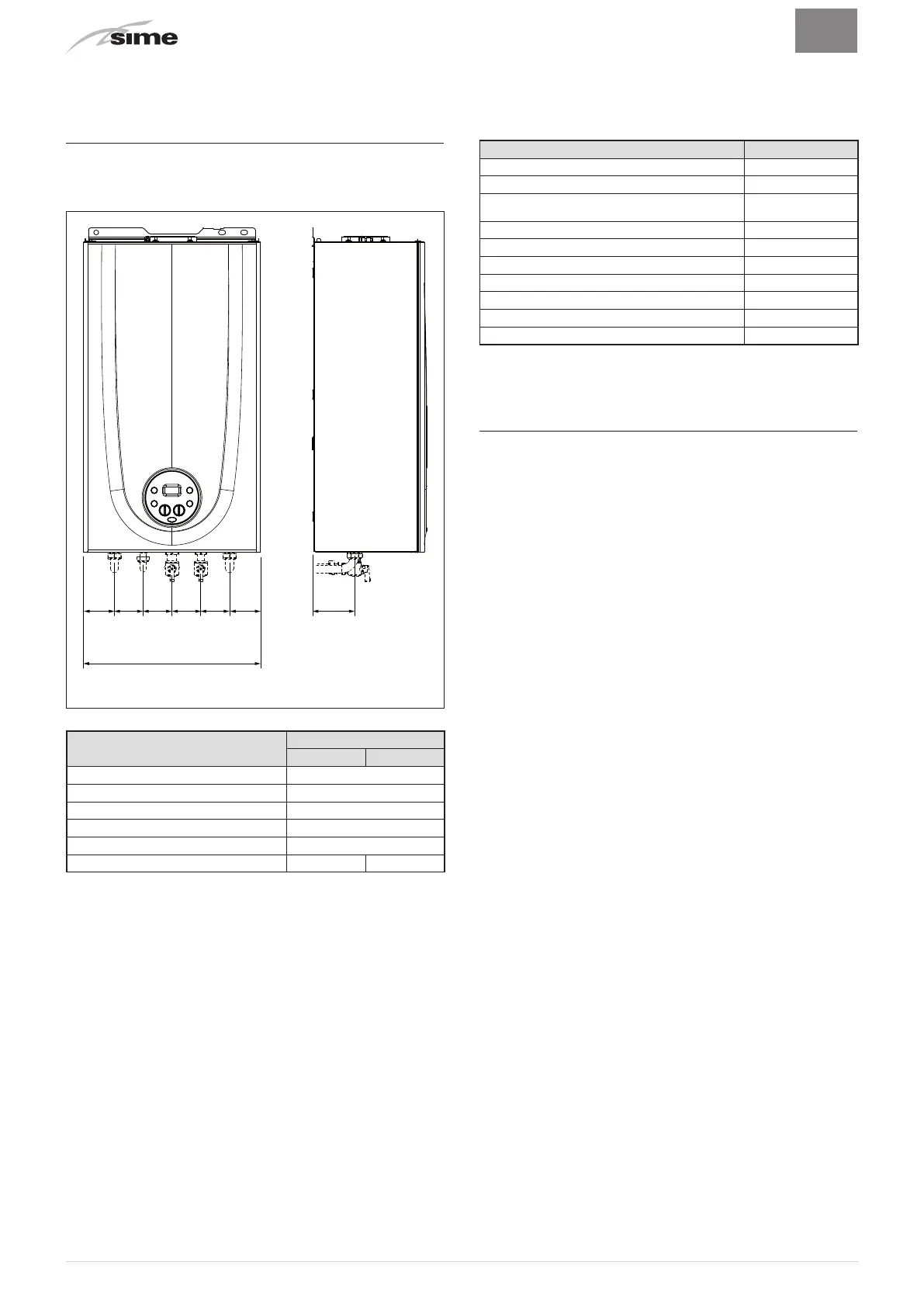

6.9 Plumbing connections
The plumbing connections have the following characteristics
and dimensions.
9565 65 65 65 ==
L
M U G E R
Fig. 21
Description
Brava One BF
25 30
M - System delivery Ø 3/4" G
R - System return Ø 3/4" G
U - Domestic hot water output Ø 1/2" G
E - Domestic hot water inlet Ø 1/2" G
G - Gas supply Ø 3/4" G
W (mm) 400 450
6.9.1 Plumbing accessories (optional)
To facilitate plumbing and gas connections to the systems, the
accessories as shown in the table below are available and are to
be ordered separately from the boiler.
DESCRIPTION CODE
Installation plate 8075441
Curve kit 8075418
Curve and valve kit with connections from DIN
to SIME
8075443
Cocks kit 8091806
Valve kit with connections from DIN to SIME 8075442
Wall mount replacement kit for other makers 8093900
Fitting protection Kit (25 kW) 8094530
Fitting protection Kit (30 kW) 8094531
Polyphosphate dosing kit 8101700
Dosing recharge kit 8101710
NOTE: kit instructions are supplied with the accessory itself or
are to be found on the packaging.
6.10 Gas supply
Brava One BF boilers leave the factory specifically prearranged
for G20 gas or G30/G31. The G20 models can be converted to
function with G30/G31 using the "specific nozzle kit" (optional)
provided by
Sime on request separately from the boiler.
If changing the type of gas to be used, carry out the entire
“GAS
CONVERSION”
phase of the appliance.
Boiler connection to the gas mains must be carried out in full
compliance with installation Standards in force.
Before connecting the boiler to the gas mains, the user must
ensure that:
– the type of gas is correct for the appliance
– the pipes are clean
– the gas supply pipe is the same dimension as or greater than
that of the boiler fitting (G3/4") and with a load loss less than
or equal to that contemplated between the gas mains and the
boiler.
a
WARNING
Once installation has been completed, check that
the joints are air tight as indicated in the installation
Standards.
m
CAUTION
It is recommended that the gas line has a suitable
filter.
