Sime BRAVA ONE BF - Coaxial Duct (Ø 60;100 Mm and Ø 80;125 Mm); Separate Ducts (Ø 80 Mm)

64
EN
m
WARNINGS
– The smoke flue and the connection to the flue pipe
must be in compliance with the national and local
Standards and Legislation in force.
– The use of rigid ducts which are resistant to
temperature, condensate, mechanical stress and
are air-tight is compulsory.
– Outlet ducts which are not isolated are a risk of
danger.
6.11.1 Coaxial duct (Ø 60/100mm and Ø 80/125mm)
Coaxial accessories
Description
Code
Ø 60/100
mm
Ø 80/125
mm
Coaxial duct kit 8084813 8084830
Extension W. 1000 mm 8096103 8096130
Extension W. 500 mm 8096102 -
Vertical extension W. 200 mm with
smoke analysis take-off point
8086908 -
Adapter for Ø 80/125 mm - 8093120
Additional 90° curve 8095801 8095820
Additional 45° curve 8095900 8095920
Tile with joint 8091300 8091300
Roof outlet terminal W. 1284 mm 8091200 8091200
Vertical condensation recovery W. 200
mm
8092803 8092803
Load loss - Equivalent lengths
Model
Leq (linear metres)
Ø 60/100
mm
Ø 80/125
mm
90° curve 1 1
45° curve 0,5 0,8
Minimum-Maximum Lengths
Model
Duct Length Ø 60/100 Duct Length Ø 80/125
W
Horizontal
(m)
H Vertical
(m)
W
Horizontal
(m)
H Vertical
(m)
Min.
Max. Min. Max. Min. Max. Min. Max.
Brava One 25
BF
- 3,5
1,3
(*)
5 3,5 6 4 7
Brava One 30
BF
- 3,0
1,3
(*)
5 3 6 4 7
m
CAUTION
(*) Vertical condensate recovery MUST be introduced
for vertical ducts (Type C32) or vertical sections of the
duct (Type C42) longer than 1.3m.

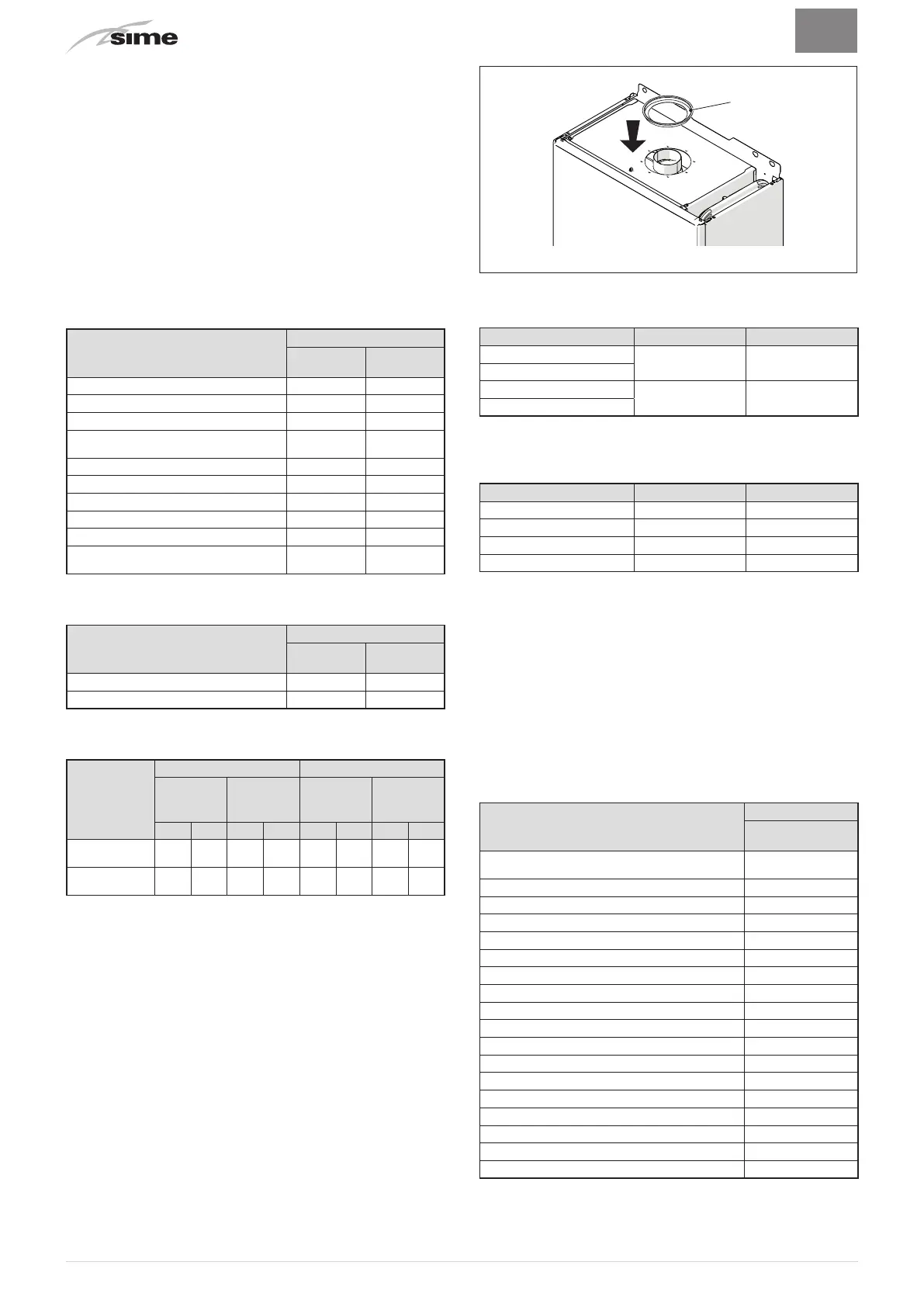

Diaphragms for coaxial ducts
Boilers leave the factory equipped with a diaphragm (1) with the
following characteristics:
–
Brava One 25 BF : diaphragm Ø 79 mm
–
Brava One 30 BF : diaphragm Ø 81 mm.
1
Fig. 23
When the outlets are Type C12 or C42 the diaphragm is to be
removed or kept following the indications below:
Model Diaphragm for duct L
Brava One 25 BF
YES
(leave mounted)
< 1 m
Brava One 30 BF
Brava One 25 BF
NO
(remove it)
> 1 m
Brava One 30 BF
When the outlet is Type C32 (vertically straight without any
curves), the presence of the diaphragm modifies the maximum
length of the duct as shown below:
Model Diaphragm Max L (m)
Brava One 25 BF YES 2,5
Brava One 25 BF NO 5
Brava One 30 BF YES 2,5
Brava One 30 BF NO 5
6.11.2 Separate ducts (Ø 80mm)
Constructing outlets for separate ducts indicates the use of the
"air-flue split pipe system". This is to be ordered separately
from the boiler and when connected to the other accessories,
from those listed in the table below, completes the smoke-
outlet/ combustion air inlet assembly.
The total maximum length obtained from the length of the outlet
and inlet pipes is determined by the load loss of the individual
accessories and must not be greater than 9 mm H
2 O for Brava
One 25 BF
and 9.5 mm H 2 O Brava One 30 BF .
Separate accessories
Description
Code
Diameter Ø 80
(mm)
Air-flue split pipe system (with take-off point) +
Diaphragm
8093020
90° curve M-F (6 pieces) 8077410
90° curve M-F (with take-off point) 8077407
90° curve M-F (insulated) 8077408
Extension W. 1000 mm (6 pieces) 8077309
Extension W. 1000 mm (insulated) 8077306
Extension W. 500 mm (6 pieces) 8077308
Extension W. 135 mm (with take-off point) 8077304
Wall outlet terminal 8089501
Internal and external ring nut kit 8091500
Inlet terminal 8089500
45° curve M-F (6 pieces) 8077411
Condensate recovery W. 135 mm 8092800
Manifold 8091400
Tile with joint 8091300
Roof outlet terminal W. 1390 mm 8091201
Condensate recovery Tee 8093300
Inlet/outlet fitting Ø 80/125 mm 8091401
