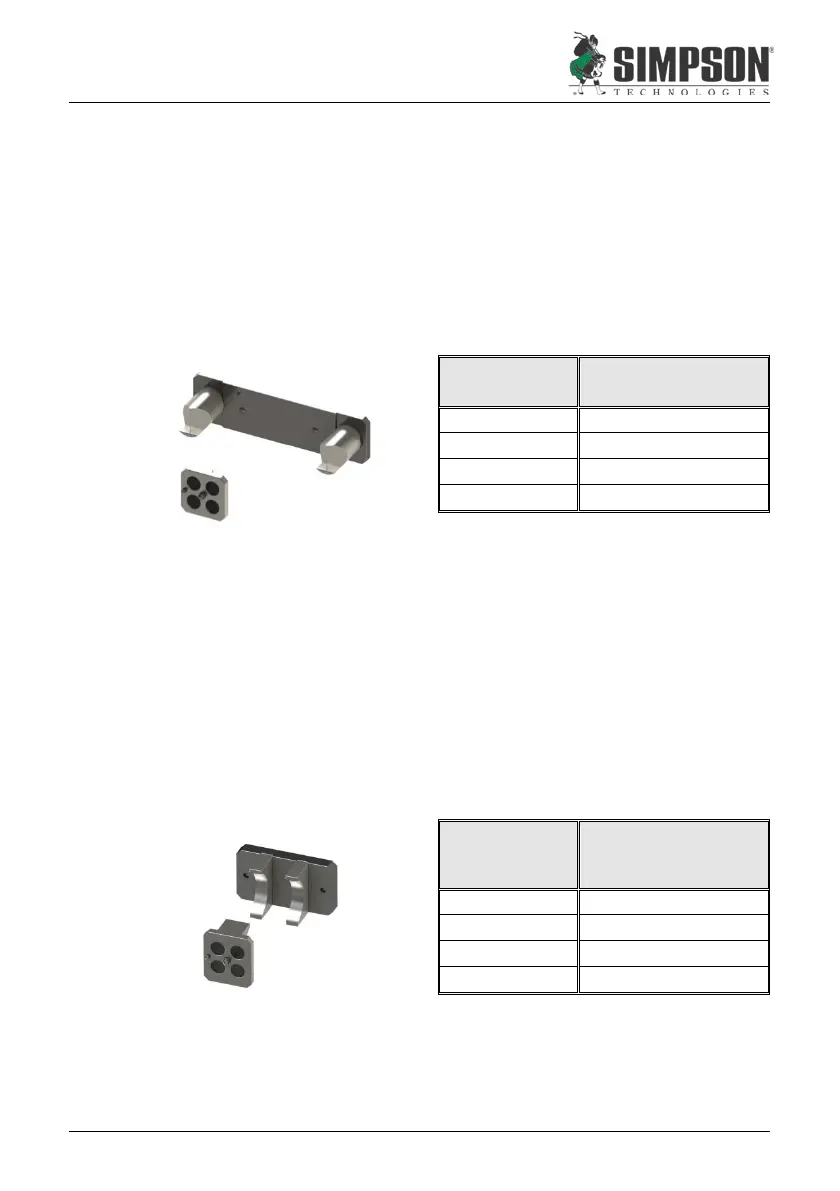

3.5 Accessories
3.5.1 Transverse Strength Attachment (Model PBV/M)
This accessory is mounted on the Minilab, Model PVF-C, and is used
to determine the transverse strength of standard core sand transverse
specimens. With the PBV/M Base Plate mounted on the Minilab, a
transverse specimen is placed on the two Base Bolts and force is
applied at the center, initiating a bending force.
3.5.2 Twin-Transverse Shear Strength Attachment (Model PQS/M)
This accessory is mounted on the Minilab, Model PVF-C, and is used
to determine the shear strength of clay bonded molding sands. With
the PQS/M Base Plate mounted on the Minilab, a standard sand
specimen of 50 mm x 50 mm is placed on the two Support Plates with
its radial surface against the curved edge of each plate. The Shear
Unit comes down with the Piston and instigates a shear force at two
locations along the vertical plane.
Specifications
Transverse Strength
Attachment
Length
ca. 190 mm (7.48 in.)
Width
ca. 50 mm (1.97 in.)
Height
ca. 65 mm (2.56 in.)
Weight
ca. 0.58 kg (1.28 lb.)
Specifications
Twin-Transverse
Shear Strength
Attachment
Length
ca. 100 mm (3.93 in.)
Width
ca. 55 mm (2.17 in.)
Height
ca. 52 mm (2.05 in.)
Weight
ca. 0.98 kg (2.16 lb.)
