6 Operating Instructions
26 Minilab man-CH-PVF-C-V17-2
Operating Instructions 6
For more information on how to use and care for your
Simpson Analytics equipment and accessories visit our
Simpson Technologies channel on YouTube and search our
library of videos. Subscribe to our channel to keep updated
on new releases.
6.1 Menu Outline
6.1.1 Measurements

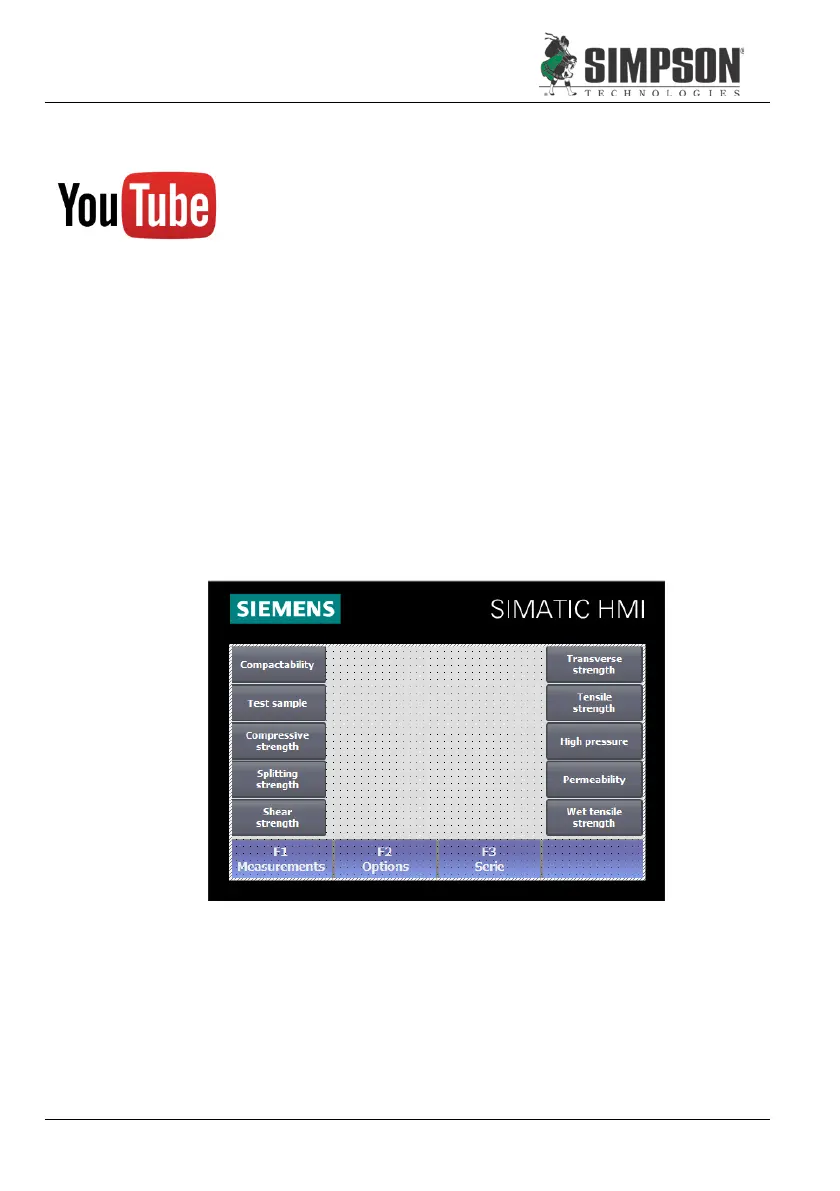

The “Measurements” menu is accessed by clicking the F1 button. This
menu displays buttons for the 10 tests available with the PVF-C Minilab:
Compactability, Test sample, Compressive strength, Splitting strength,
Shear strength, Transverse strength, Tensile strength, High pressure,
Permeability, and Wet tensile strength. The desired test commences
once the corresponding test is selected from this menu. See Section 6.2
for operation instructions.
