Simpson Minilab PVF-C - High Pressure Measurement (PHD;M)

Operating Instructions 6
man-CH-PVF-C-V17-2 Minilab 45

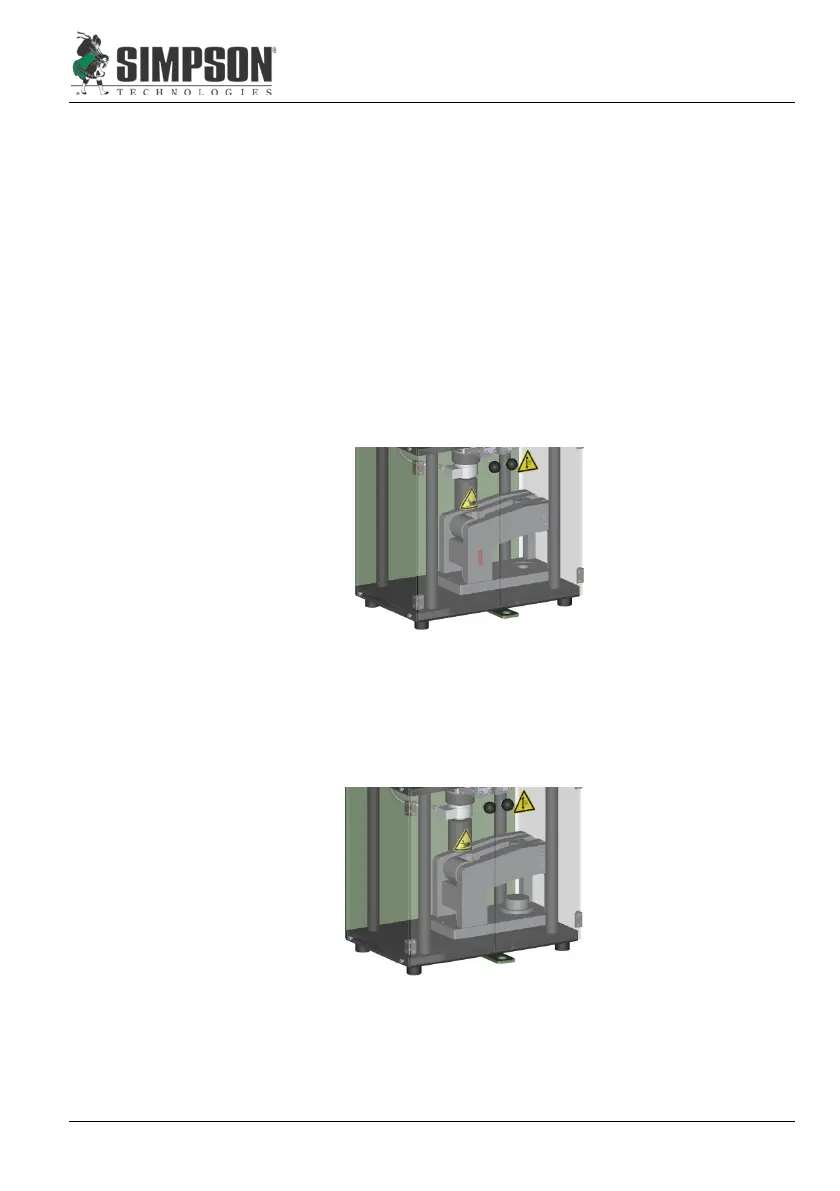

Figure 6.2.13
Figure 6.2.14
5. After completion of the measurement, remove the tension device
and clean off any sand deposits.
6.2.8 High Pressure Measurement (PHD/M)
1. Remove the Compression Insert (Figure 8.1, Item 4) (if
applicable) from the Piston (Figure 8.1, Item 3) (see Figure
6.2.4).
2. Align the High Pressure Measurement Attachment Base on the
Minilab Base Plate (Figure 8.1, Item 4), ensuring that attachment
cylinder pins are mounted in the corresponding holes on the
machine base (see Figure 6.2.13).
3. Place the Minilab Pedestal in the High Pressure Measuring
Device base (see Figure 6.2.14).
