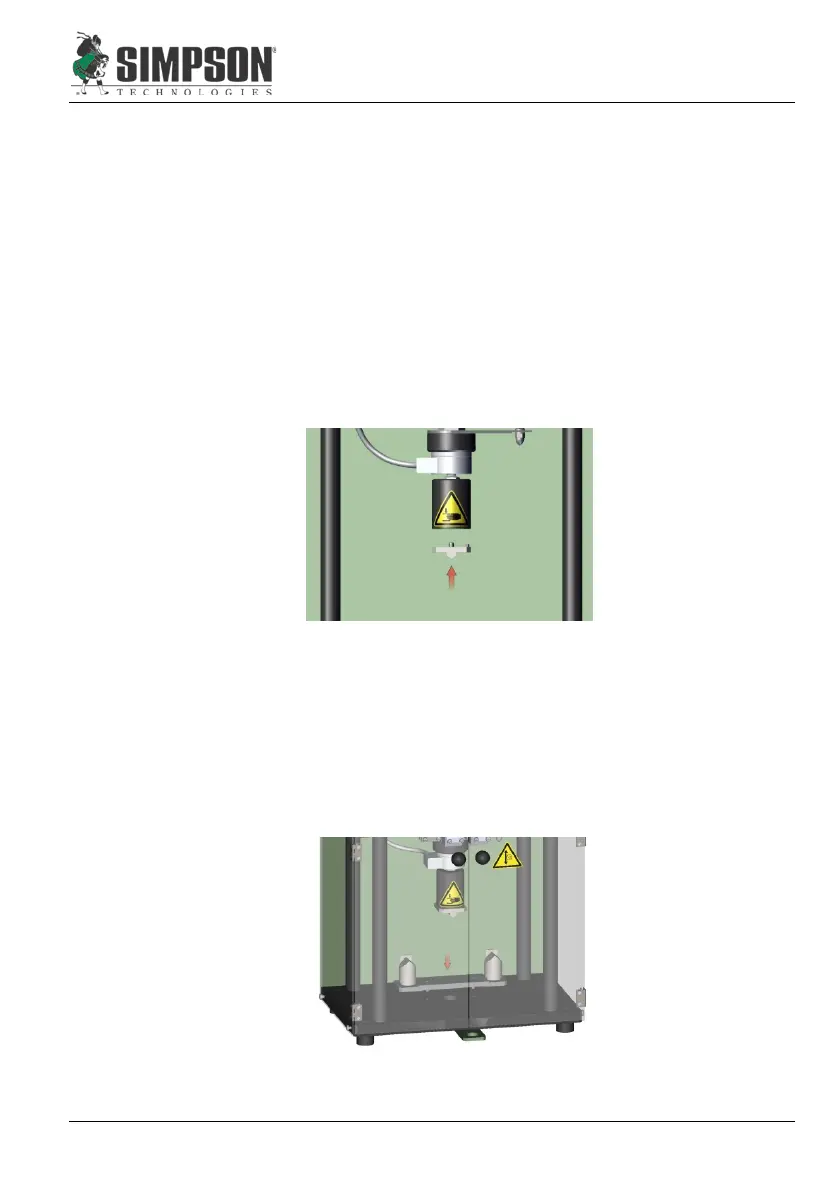

Figure 6.2.8
Figure 6.2.9
5. After completion of the measurement, remove the Twin-
Transverse Shear Attachment Base and Shear Unit, and clean
off any sand deposits.
6.2.6 Transverse Strength Measurement (PBV/M)
1. Prepare a core transverse test specimen.
2. Remove the Compression Insert (Figure 8.1, Item 4) (if
applicable) from the Piston (Figure 8.1, Item 3) (see Figure
6.2.4), and align the two pins of the Transverse Strength
Attachment Cutter (Figure 8.1, Item 10) in its place (see Figure
6.2.8).
3. Align the Transverse Strength Attachment Base on the Minilab
Base Plate (Figure 8.1, Item 4), ensuring that attachment
cylinder pins are mounted in the corresponding holes on the
machine base (see Figure 6.2.9).
