6 Operating Instructions
40 Minilab man-CH-PVF-C-V17-2

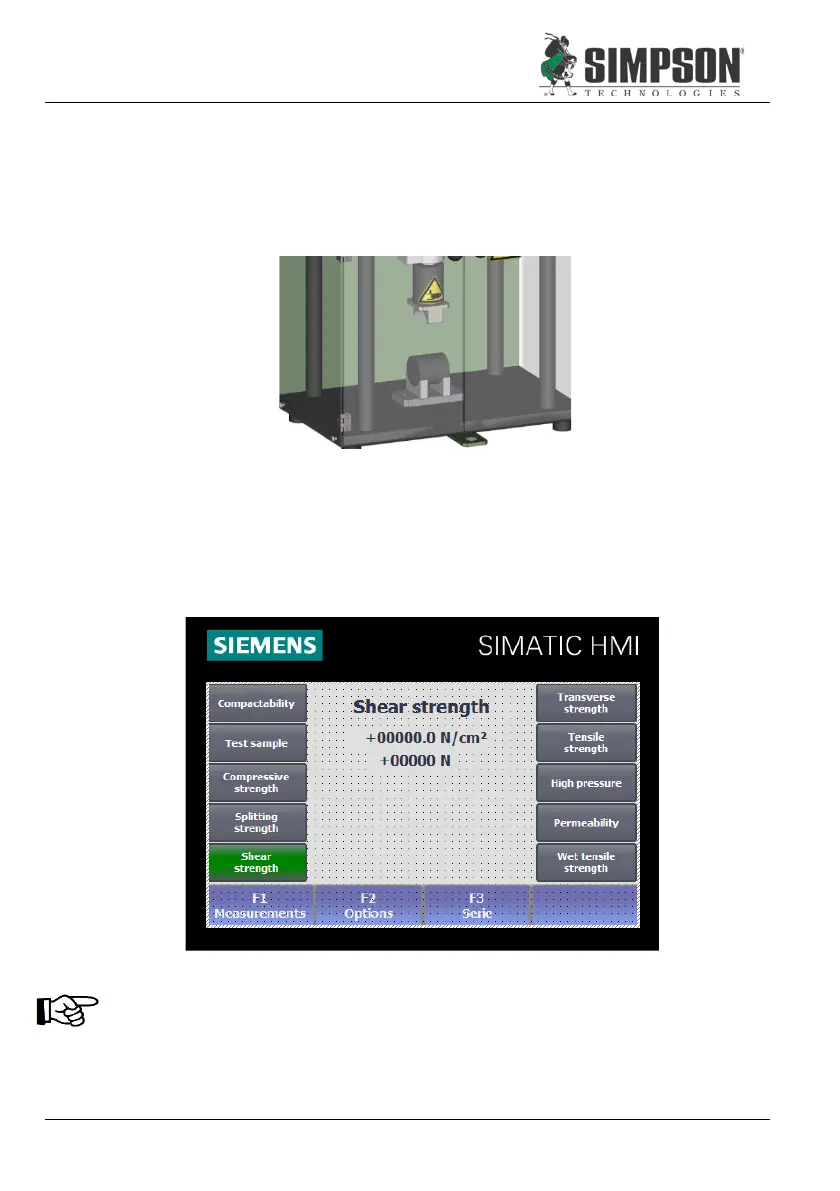

Figure 6.2.7
3. Center the radial surface of the prepared test specimen on the
curved edges of the Twin-Transverse Shear Attachment Base
and close the Protection Doors (Figure 8.1, Item 5) (see Figure
6.2.7).
4. Select menu, "Shear Strength," on the Operator Panel (Figure
8.1, Item 6) and press the “Measurement” Button (Figure 8.1,
Item 1) on the enclosure door to begin testing.
The Piston extends downwards and exerts a force on the test specimen
until it breaks. The maximum breaking force required relates to the shear
strength in N/cm
2
and is shown on the display.
