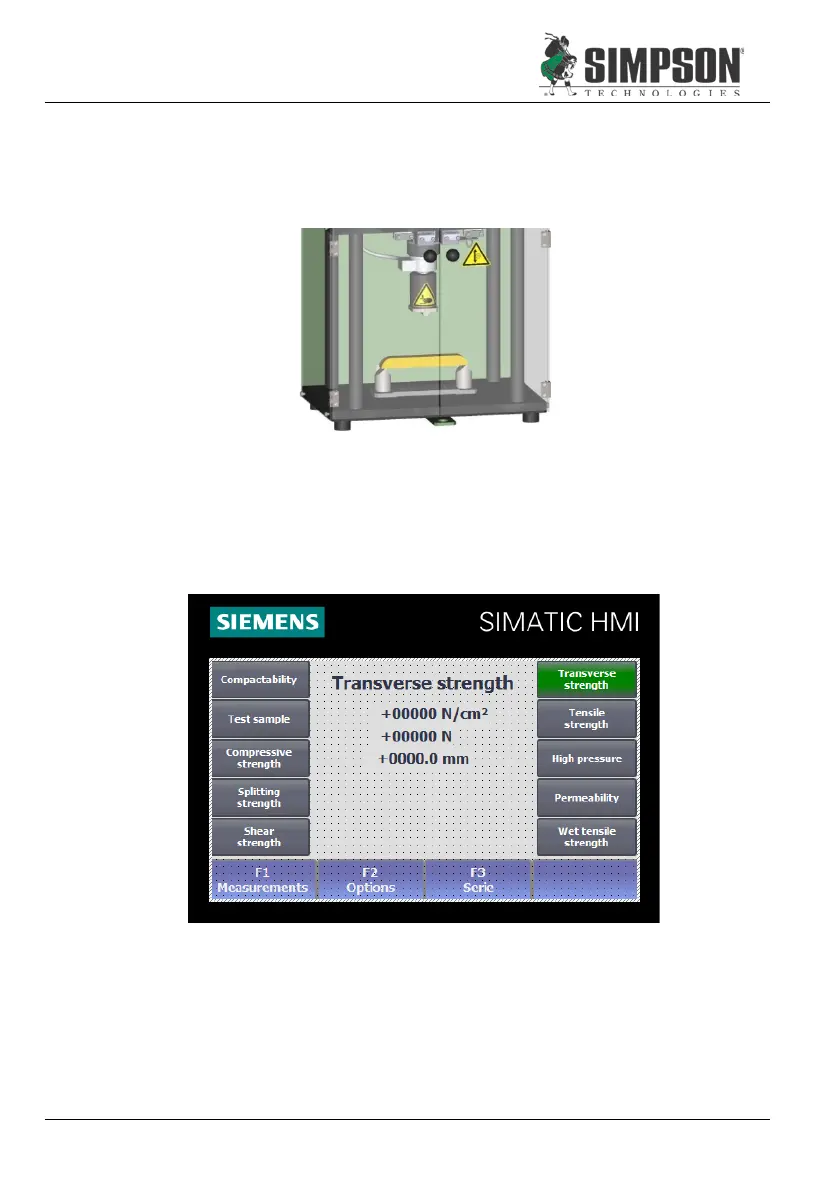

Figure 6.2.10
4. Center the wide surface of the prepared test specimen on the
Transverse Strength Attachment Base Bolts and close the
Protection Doors (Figure 8.1, Item 5) (see Figure 6.2.10).
5. Select menu, "Transverse Strength," on the Operator Panel
(Figure 8.1, Item 4) and press the “Measurement” Button (Figure
8.1, Item 5) on the enclosure door to begin testing.
