6 Operating Instructions
38 Minilab man-CH-PVF-C-V17-2

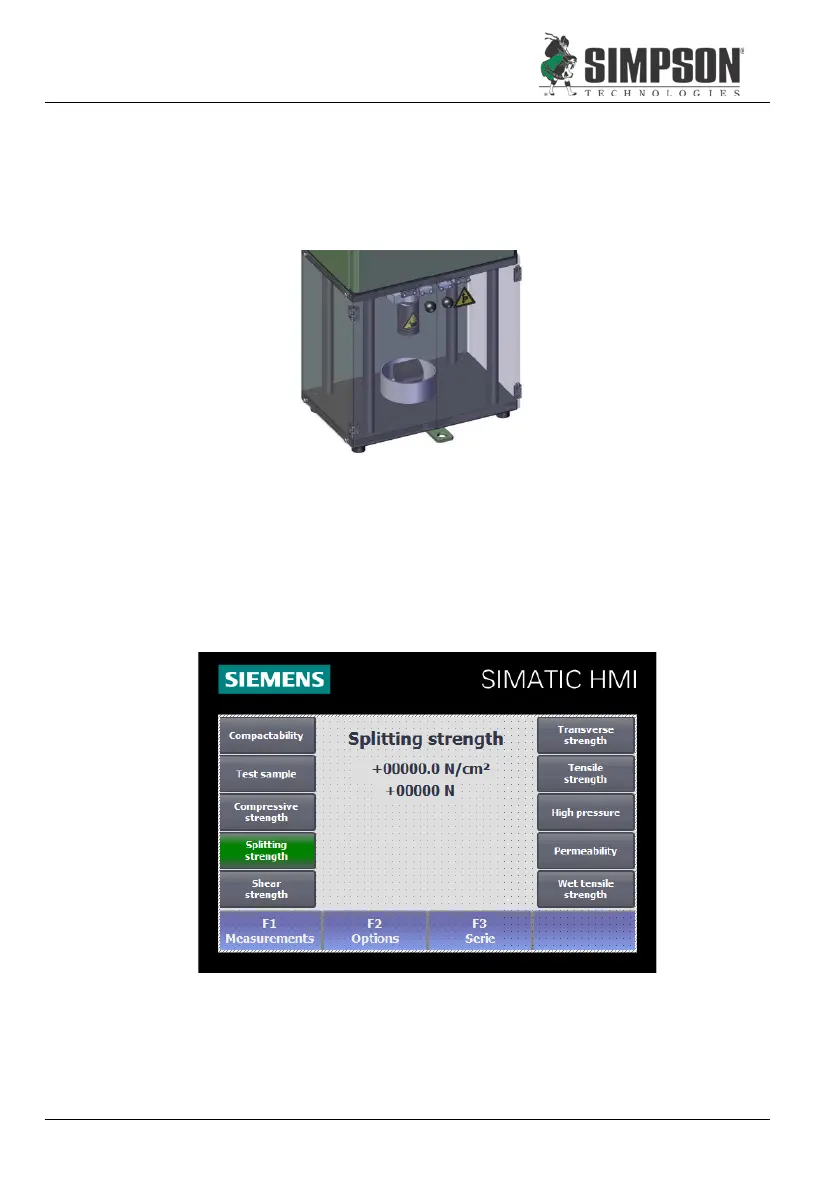

Figure 6.2.3
3. Center the radial surface of the prepared test specimen on the
Pedestal and close the Protection Doors (Figure 8.1, Item 5).
(There are grooved radial surfaces on the Sand Chute to aid the
specimen placement on the Pedestal.)
4. Select menu, "Splitting Strength," on the Operator Panel (Figure
8.1, Item 6) and press the “Measurement” Button (Figure 8.1,
Item 6) on the enclosure door to begin testing.
