Installation
11
2 INSTALLATION
2.1 General
The AI50 can be fl ush mounted or bracket mounted, however, to
determine the best possible location for good navigation, you need to
consider these few options:
For ease of use - keep it within easy reach
For good screen visibility - keep away from direct sunlight if
possible
Ensure good ventilation
Decide how and where, you are going to run the cabling from
the rear of the unit.
The AI50 is very simple to install, however, the performance of the
equipment is directly affected by the quality of the installation. Please
read these instructions carefully before attempting installation. If in any
doubt, consult a qualifi ed marine electronics engineer.
2.2 Panel Mounting
The transceiver requires a flat surface with an area of at least 172mm x
115mm (6.8in x 4.5in) for mounting Fig 2.1.
Allow sufficient space behind the unit for cable entry – at least 50mm
(2.0in), in addition to the depth of the unit, is recommended. The surface
should be rigid and sturdy enough to be able to support the weight of the
•
•
•
•

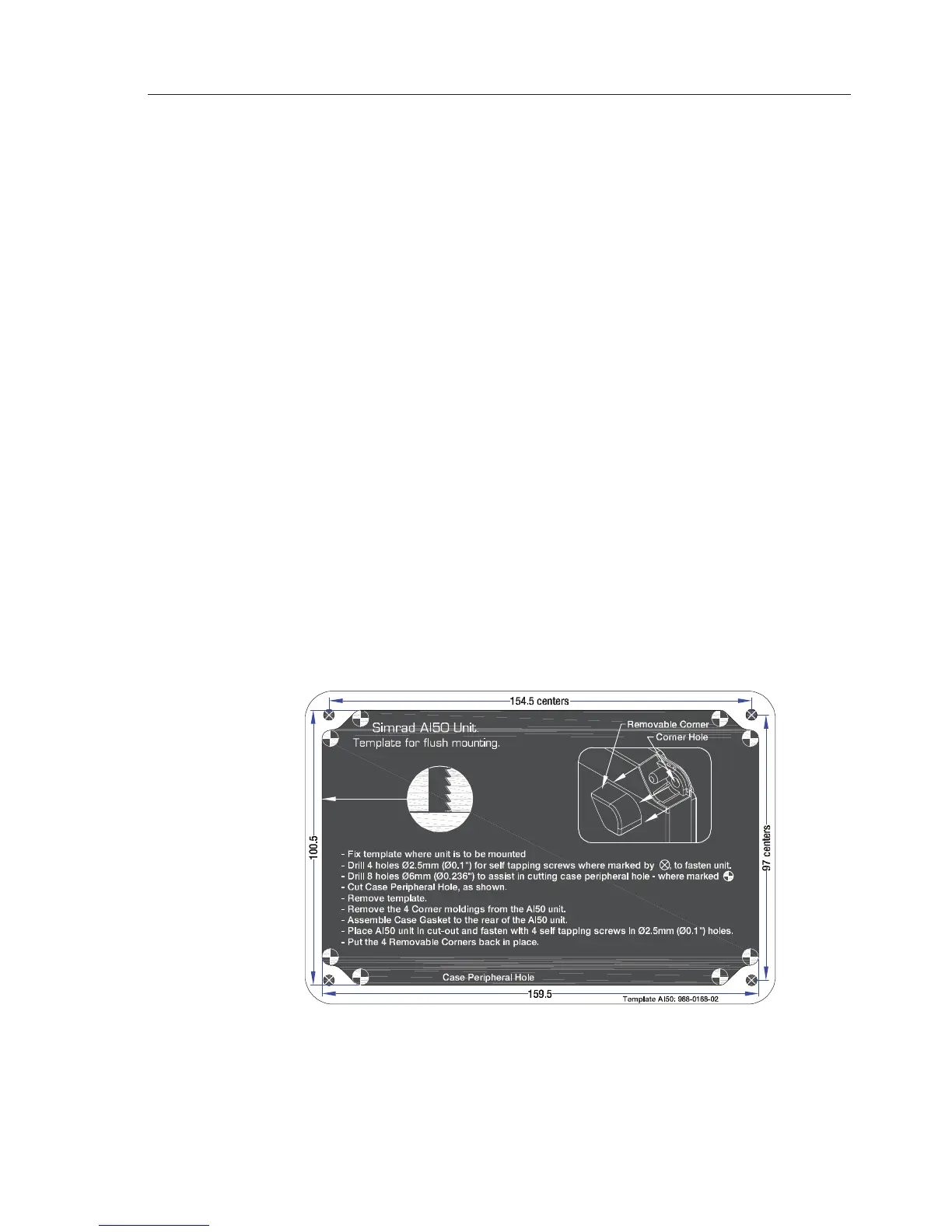

Fig. 2.1 – Panel Cut-out drawing
