Simrad AI50 User Manual

Initial Configuration
21
4 INITIAL CONFIGURATION
4.1 Window Display convention
Throughout the operation of the AI50 all displays will conform to the
following convention for daylight settings:
Title Bar:
This is the top bar of a window, and will display the title or type of
warning/alarm being displayed. In information and menu windows the
Title Bars will be “Blue”. In general alert windows it will be “Yellow and
in windows displaying serious alarms, it will be “Red”.
Information area:
The middle portion of the window will show the information/menu or
graphic relevant to the title displayed and will be grey.
Instruction Bar:
The lower bar in the window is known as the “Instruction Bar”. This bar
will inform you of what action to perform, relevant to the information
being shown, and will normally be “White”. For general alerts it will be
“Yellow” and for serious alarms it will be “Red”.
4.2 Initial Start Up Sequence
On initial power up the display will show a warning regarding good
seamanship Fig. 4.2.

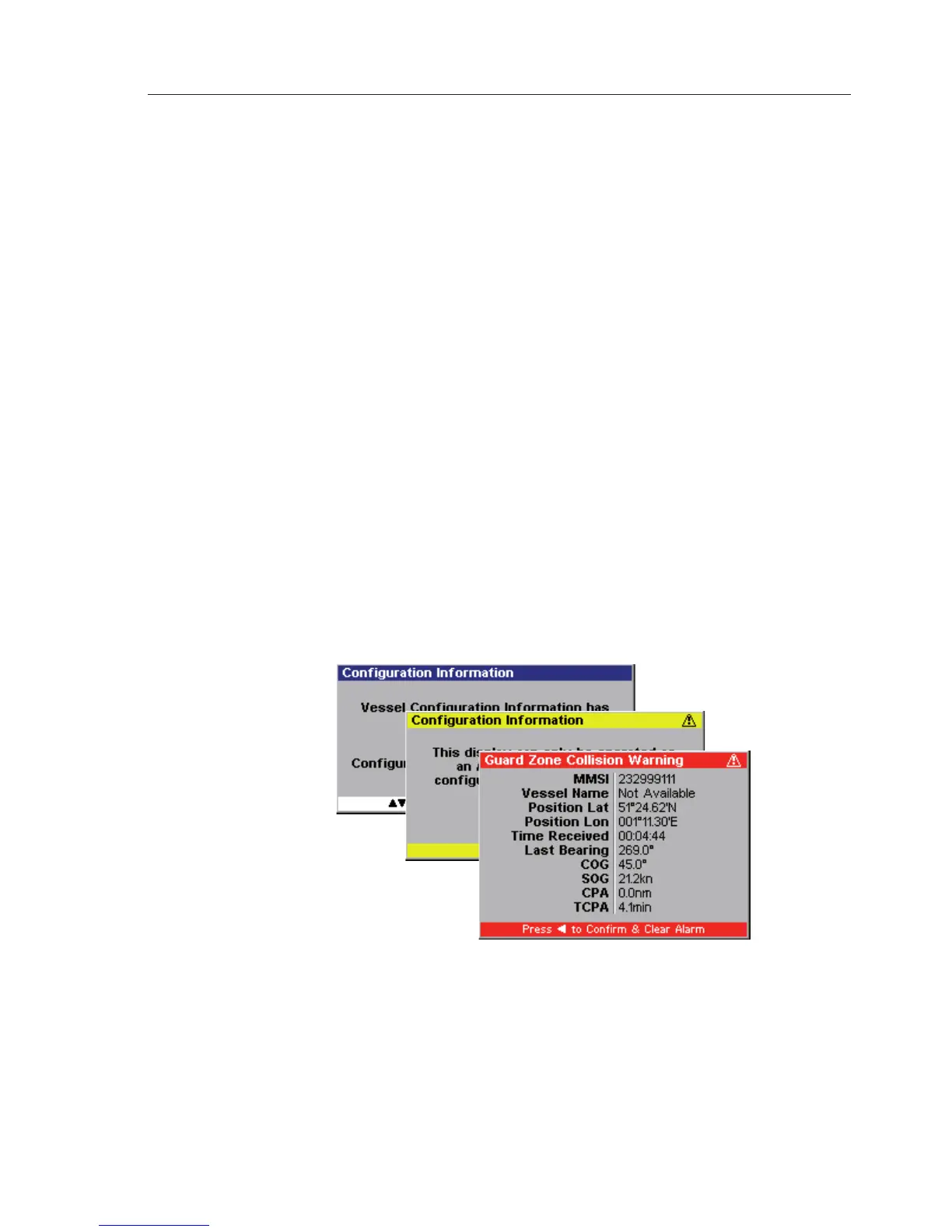

Fig. 4.1 - Window convention
