Menu Mode
49
5.8 Product Info
This section will display information about your
AI50’
s Unique Identifier
,
Software version and Ship Configuration information.
From the Main menu select “Product Info”, and press
MENU or
►
. A
window opens showing the first screen of information; press the
◄
key to
display the second set of information, Fig. 5.24 and Fig. 5.25.

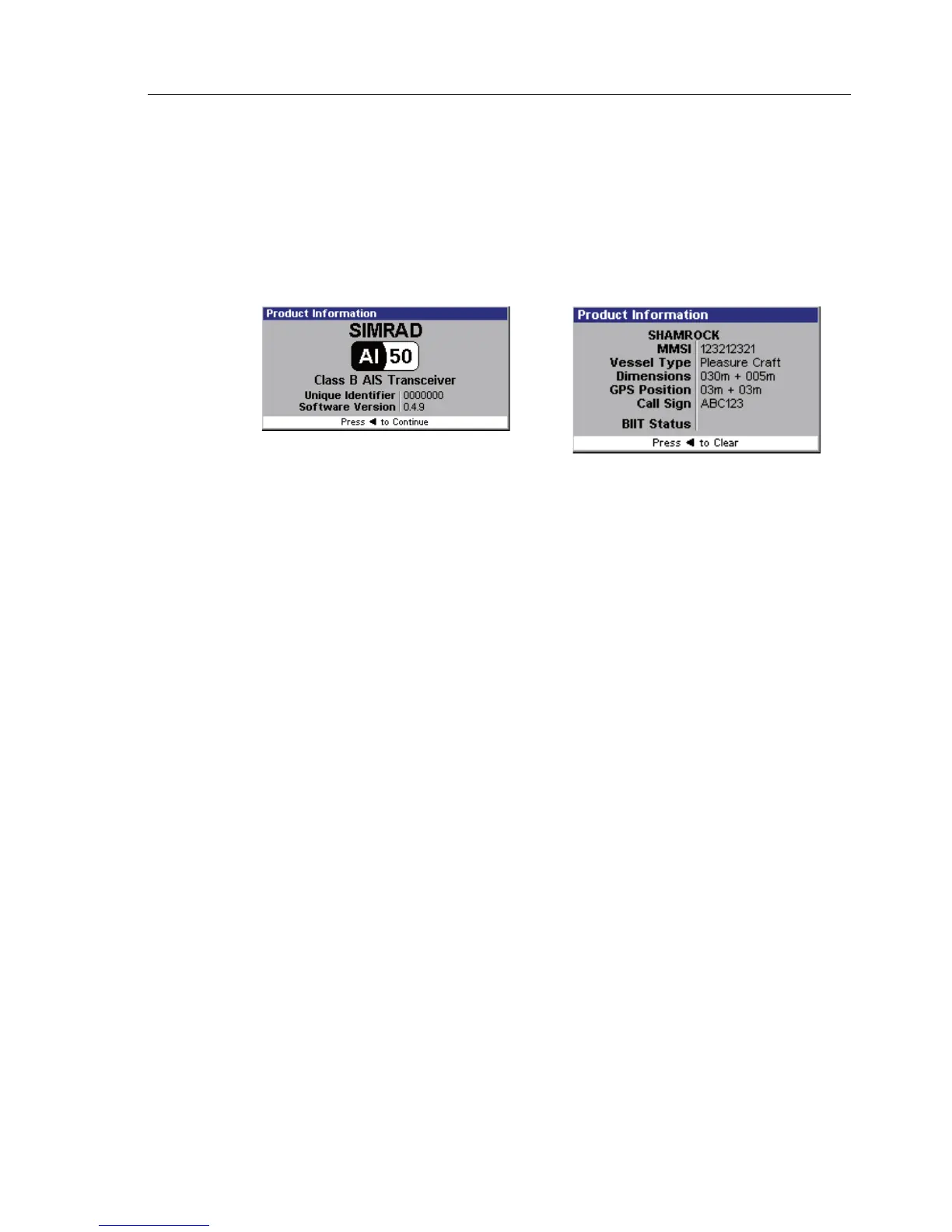

Fig. 5.24 – Pr
oduct Info 1
Fig. 5.25 – Pr
oduct Info 2
48
50
