Simrad AI50 - Vessel Dimensions & GPS Reference

AIS Class B Transceiver
26
The ▲▼ keys allow you to cycle through the available choices, they are:
Not Set (default)
Pleasure Craft
Sailing Vessel
Military
Diving Ops
Dredging
Tow Large Load
Towing
Fishing
When you have made your choice, press  MENU to select it and enter it
into the systems memory.
4.3.3 Vessel Dimensions & GPS Reference
Using the ▲▼◄► keys highlight “Vessel Dimensions & GPS Reference”
and press  MENU or ► to select it. A window opens as shown in Fig. 4.12.
All numeric entries must include preceding zero’s. For example if “DimA
“ is 20 metres, it should be entered as “020” and not “20” before the
“OK” is selected, if not the following message will appear. Fig. 4.13.
•
•
•
•
•
•
•
•
•

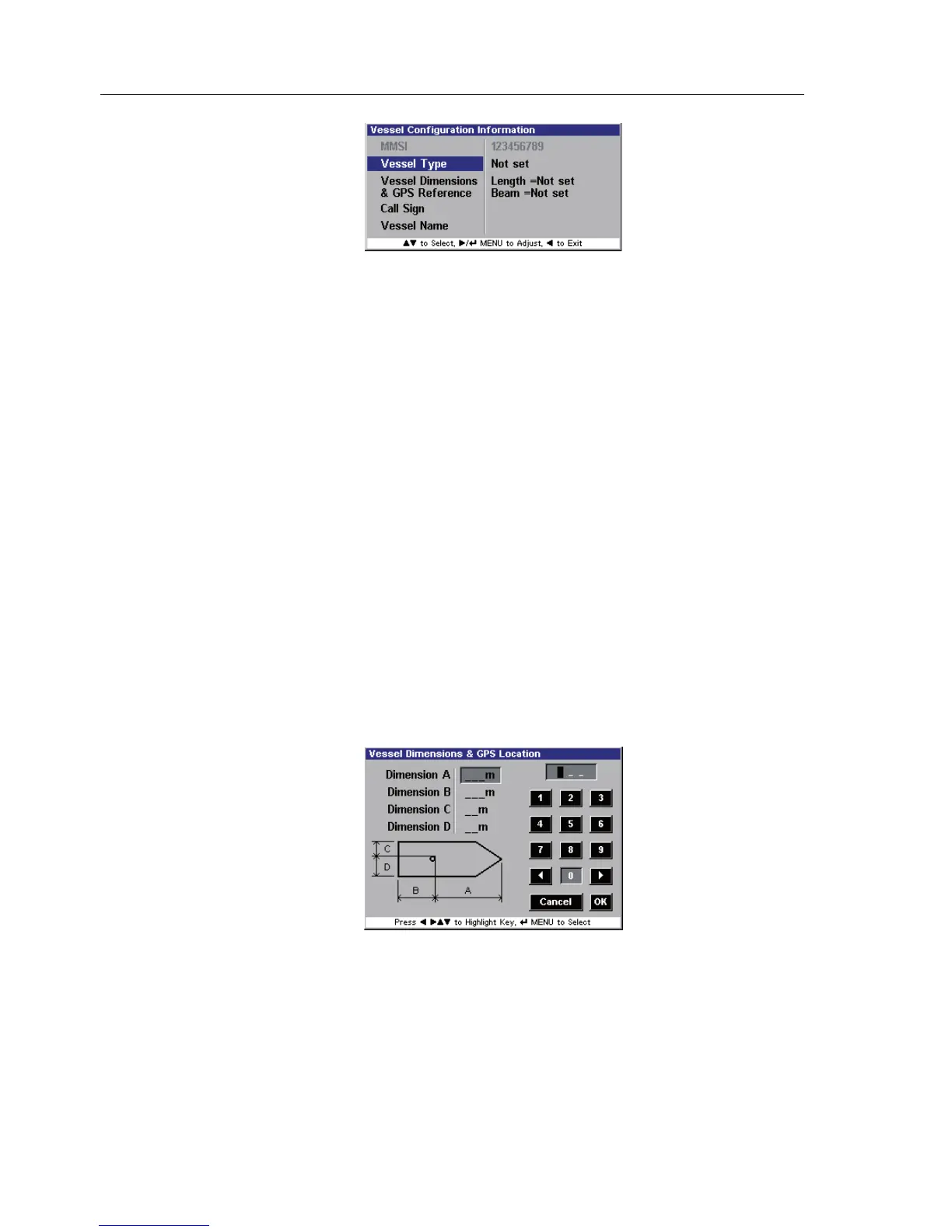

Fig. 4.11 – Vessel Type Entry Screen
Fig. 4.12 – Vessel Dimensions & GPS
Reference Entry Screen
