CA34/44/54 Miscellaneous menu Chapter 7-3

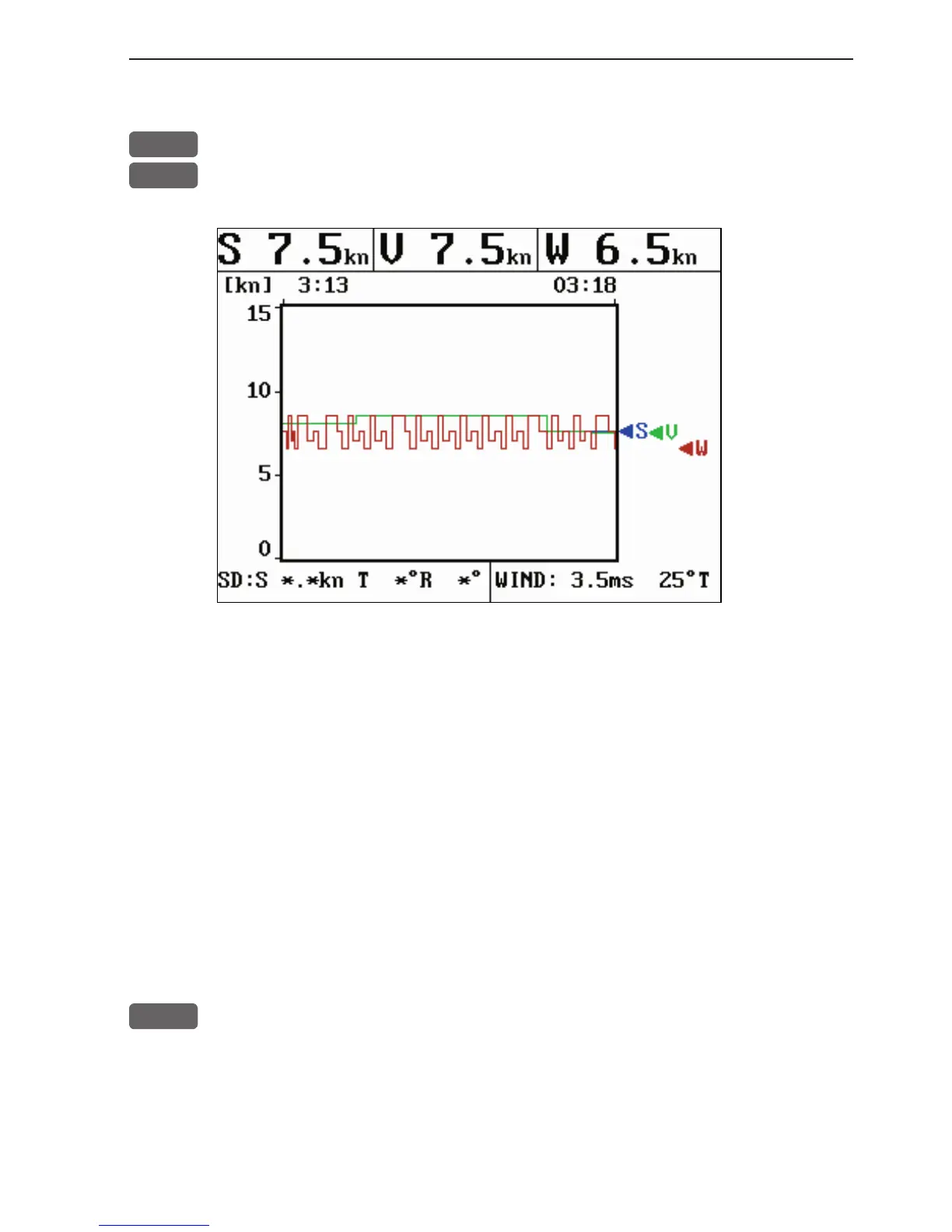

7.2 Speed diagram
MENU
Call up the menu bar, and...
5,2
load “Speed diagram”
S= Speed over ground.
V= Velocity towards waypoint.
W*= Speed through water.
SD (Set and drift)*= Speed and direction, true or relative.
WIND*= Speed and direction.
* Connection to external sensors is required.
ADJ
Call “Speed diagram setup”
- see next page.
