CA34/44/54 Echo menu Chapter 5-3
From any display:
ECHO
Long press on the [ECHO] key will toggle between:
Standard
Dual Frequency
Custom screen 1 Custom screen 2
(CA44/54)

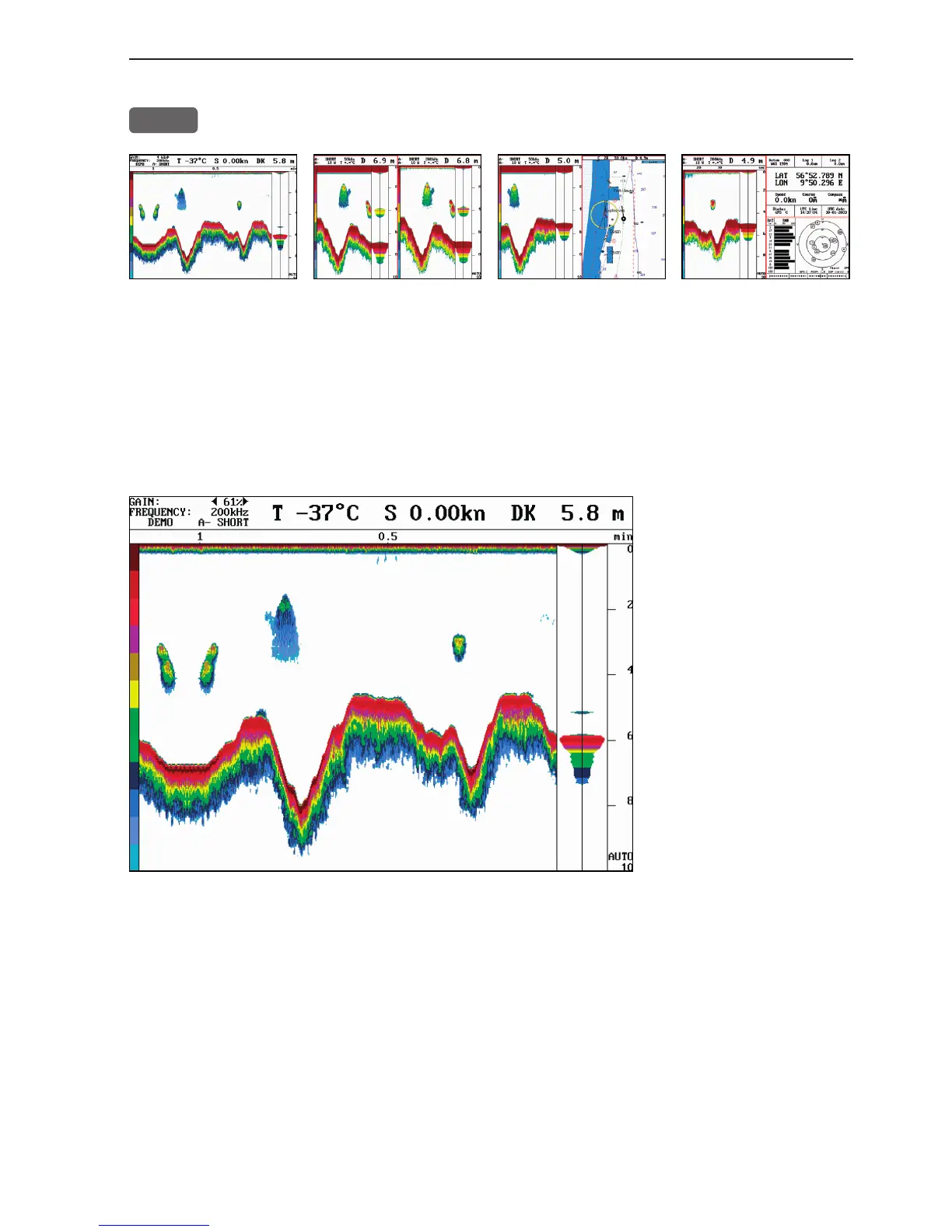

5.3 Standard echo display
This is the basic presentation mode (standard display) for observing
fish schools and sea bed. Some surface noise may appear just below
the transmission line.
Transmission line.
Time scale.
Depth range is adjust-
able with +/- keys or
the Quick-range keys
1-9.
Press key 0 to return
to Auto range.
The data field is preset to show: Gain level, Frequency, Transmit
Pulse length A- SHORT (set to AUTO), Transmit Power A- 10W
(set to AUTO) - see section 5.7.
Water temperature T in Celcius or Fahrenheit (in 1/10 degrees),
water or SOG speed S in knots or kilometers/hour or miles/hour,
actual depth *DK - units can be changed in Setup for units
(MENU,7,1).
*) Actual depth i.e. Depth below Keel/Surface/Transducer - settings
can be changed in Echosounder setup (MENU,7,ECHO).
