Simrad ES60
100
857-160970 / Rev.H
Navigation Interface

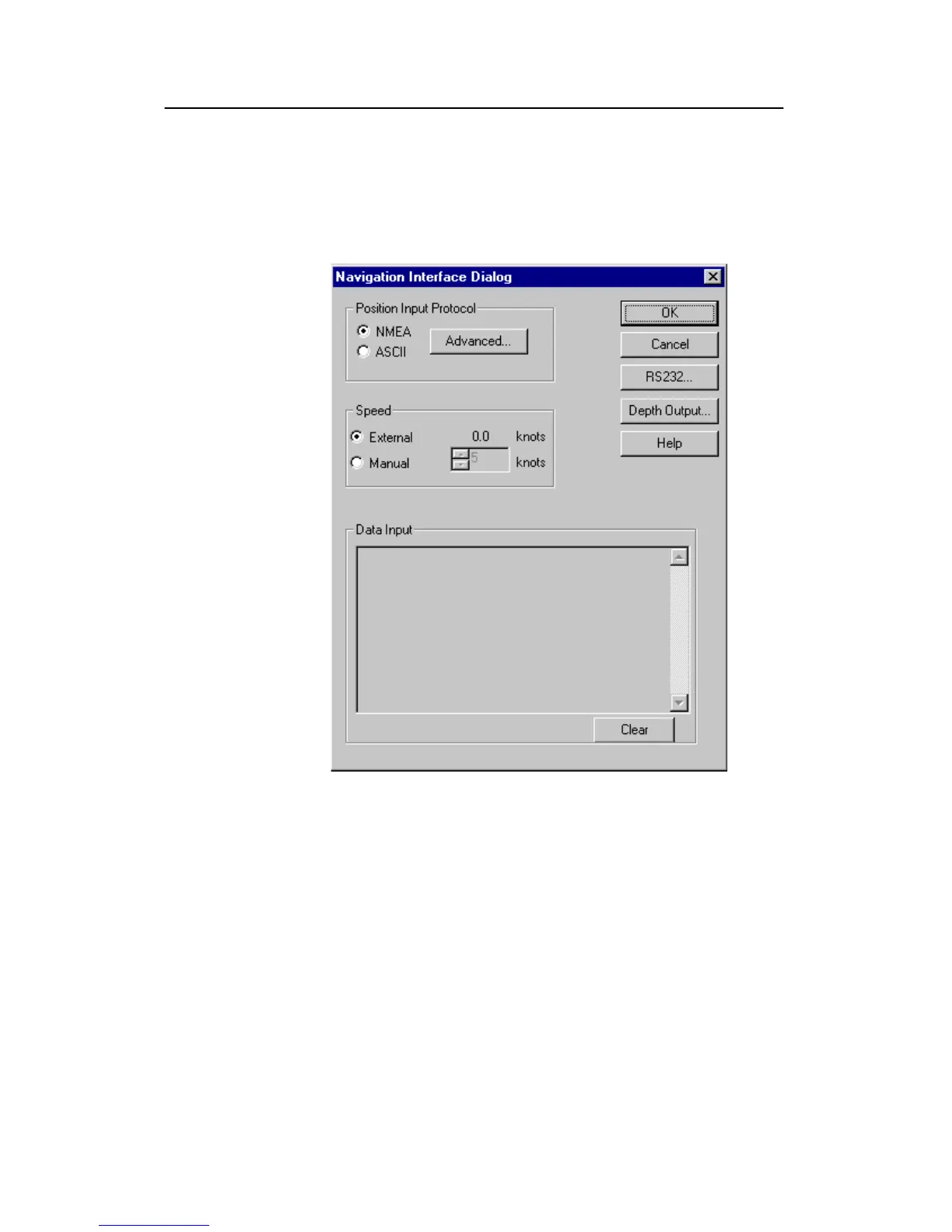

The Navigation Interface dialogue box is accessed from the
Install menu.
A navigation receiver or other navigational instrument can be
connected to a RS-232 port of the ES60 Processor Unit. The
input may be either standard NMEA datagrams or user specific
ASCII datagrams. Standard NMEA datagrams are automatically
interpreted, like the GGA and GLL navigation sentences.
Special $??ATS or CS datagrams (defined by Simrad Horten)
may contain an external annotation message. See the
Annotation dialogue box for further information about
annotations.
Position input protocol
Tick for the appropriate input protocol; ASCII or NMEA.For
setup of these protocols, see the Advanced Navigation dialogue
box. This dialogue box is accessed with the Advanced button.
