Reference manual
113
857-160970 / Rev.H
Store
The Store/Replay function records the unprocessed transceiver
data on the internal harddisk. The recorded signal can later be
injected into the echo sounder processing software as if it
arrived directly from the transducer.

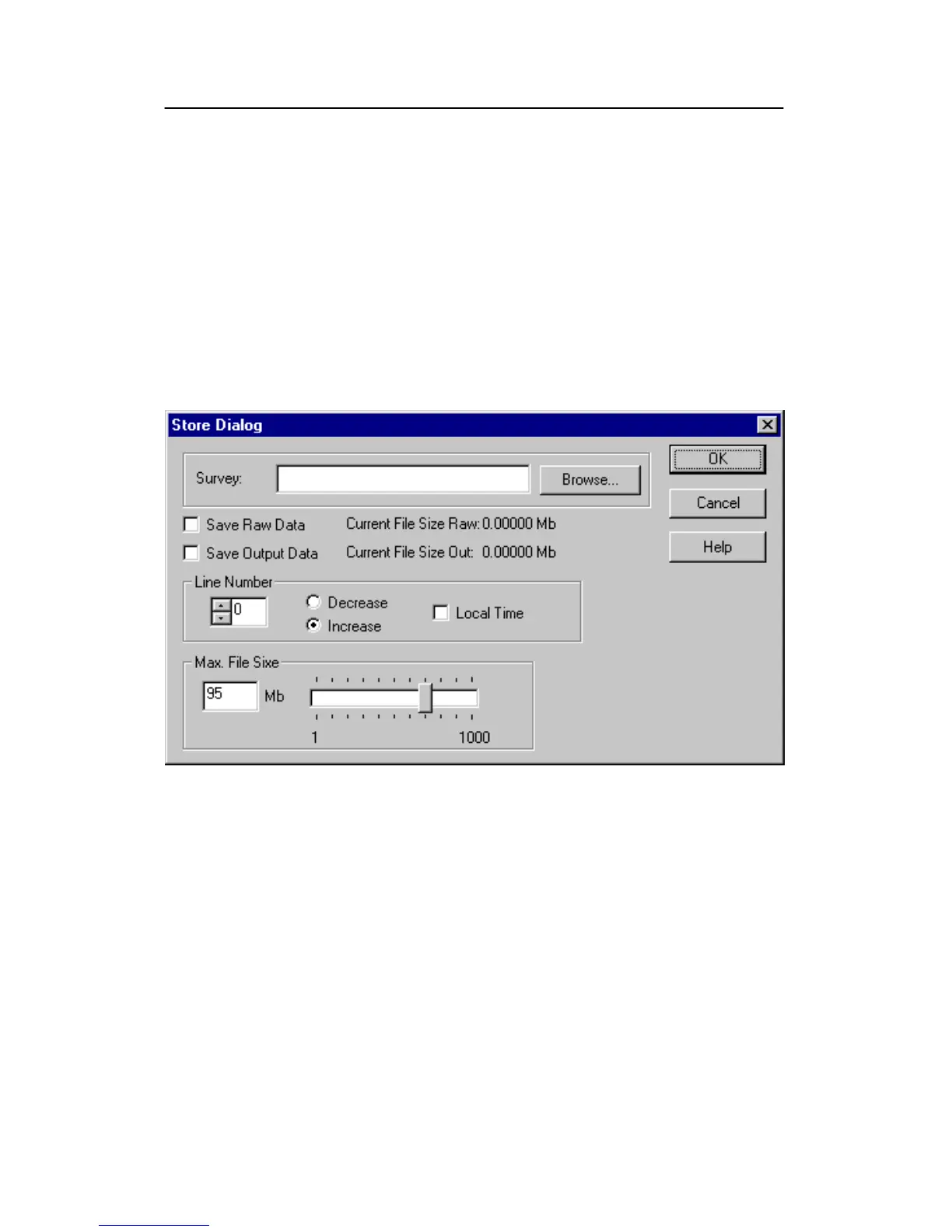

The Store dialogue is accessed from the F ile menu. It controls
the recording of the unprocessed signal on the harddisk. The
Replay dialogue box (available from the Operation dialogue
box) controls the playback of this signal into the echo sounder
processing software.
Survey
Enter the complete path name of the survey directory. A new
directory is created if it does not exist. The new directory is
created when you click the OK button. Click the Browse button
if you wish to navigate through the disk directories.
Data formats
Save Raw Data - Check this box to save the unprocessed
transceiver data on the internal harddisk. The unprocessed
transceiver data is stored in standard computer files. These files
contain all the necessary data for realistically reconstructing the
situation during the real survey; transceiver data, navigation
data, annotation input etc. The echo sounder program reads
these files during replay.
