Display views
23
857-160970 / Rev.H
Display example

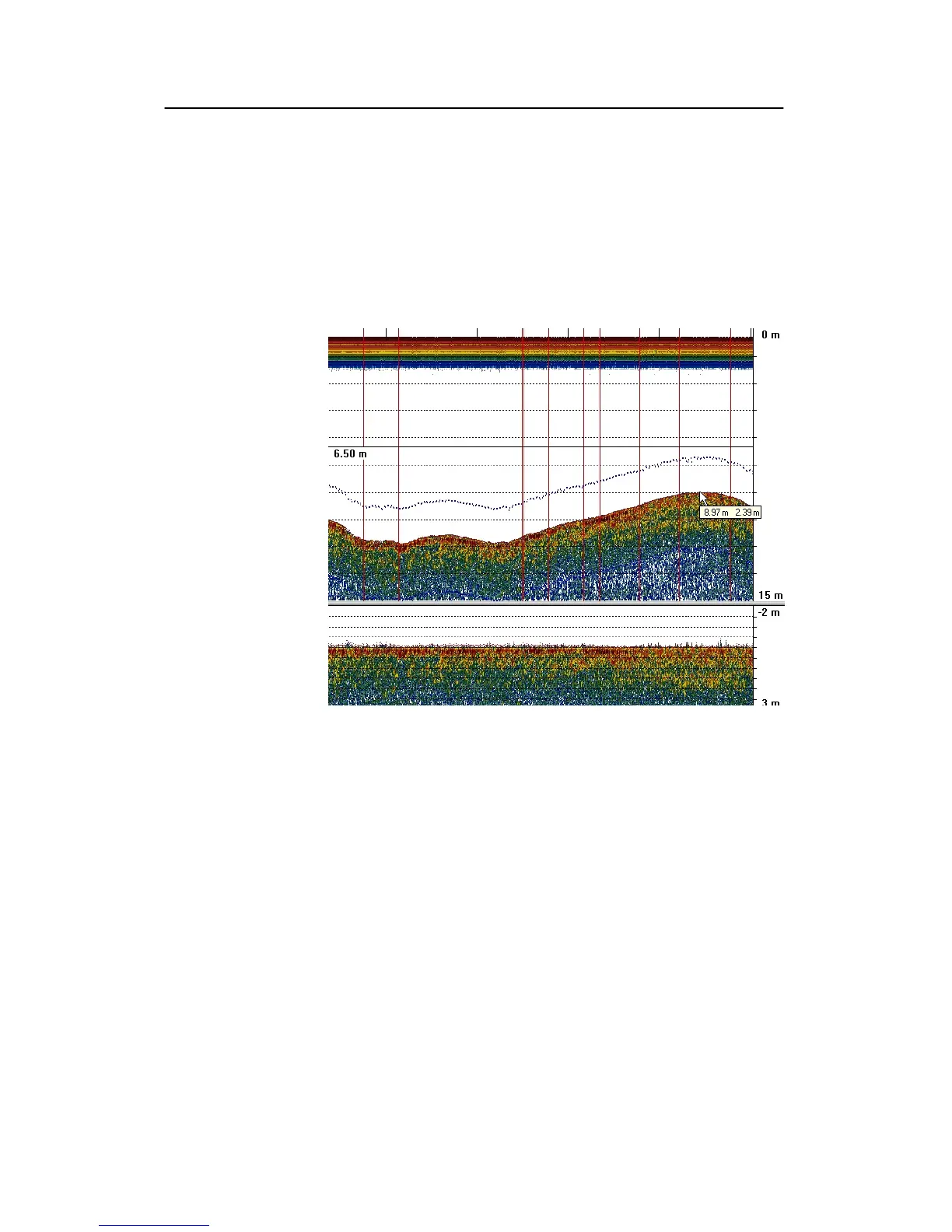

The first illustration shows an excerpt of the display view as it
appears during normal operation when several annotations have
been added.
The annotations are not displayed with all the information they
contain, they are merely added as vertical red lines.
Figure 5
Display
presentation
The next illustration shows how the History window presents
the same echogram.
Printer example
A printout from the echo sounder is shown below.
From the top left corner, you can see the following annotations.
(1) A depth annotation. This information will automatically
appear at regular intervals, and whenever you change the echo
sounder’s depth range.
(2) An external annotation with the text “This is an ATS
annotation”. This annotation has been imported on the serial line
from the navigation system.
(3) Two annotations with navigational information. This
information appears with regular intervals when enabled from
the Printer and History dialogue box.
