Reference manual
73
857-160970 / Rev.H
Annotation

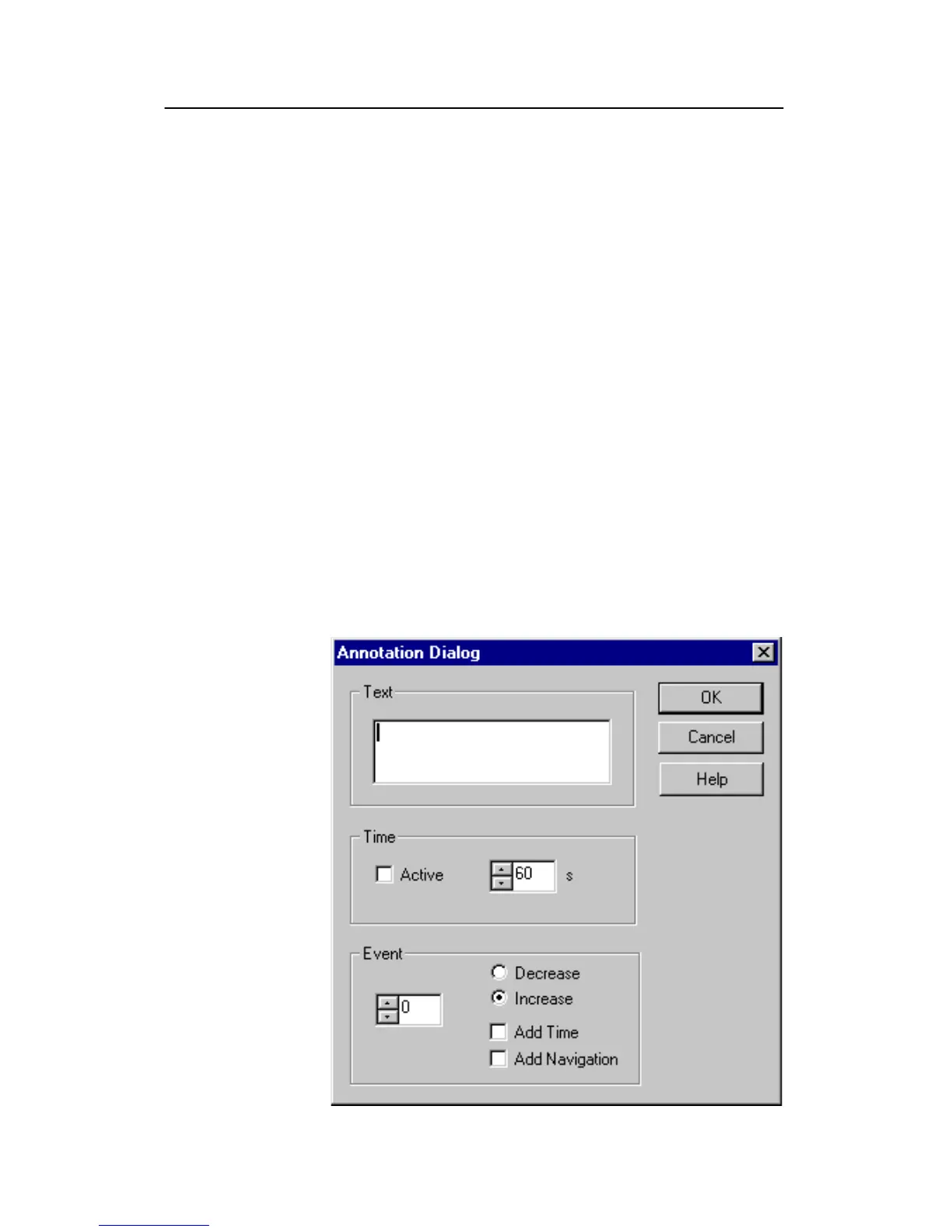

The Annotation dialogue box is opened from the File menu.
The ES60 echo sounder supports these different types of
annotation:
• Text - use this function to enter your own text.
• Time - use this annotation to automatically generate a time
marker at specified intervals.
• Event - use this annotation to generate an event number with
optional addition of time and/or navigation.
• External - this function allows automatic annotation from an
external source.
Note that the Te x t annotation is only available if you have a
keyboard connected to the echo sounder.
An annotation telegram is written into the replay data file and
the output data file. The annotation message is only shown
inside the history window and on the echogram printout.
