Header view
The ES60 Header view is shown directly above the two Echo
frames. The top Header view is thus located just below the
Menu bar. The Header view contains the following
information.

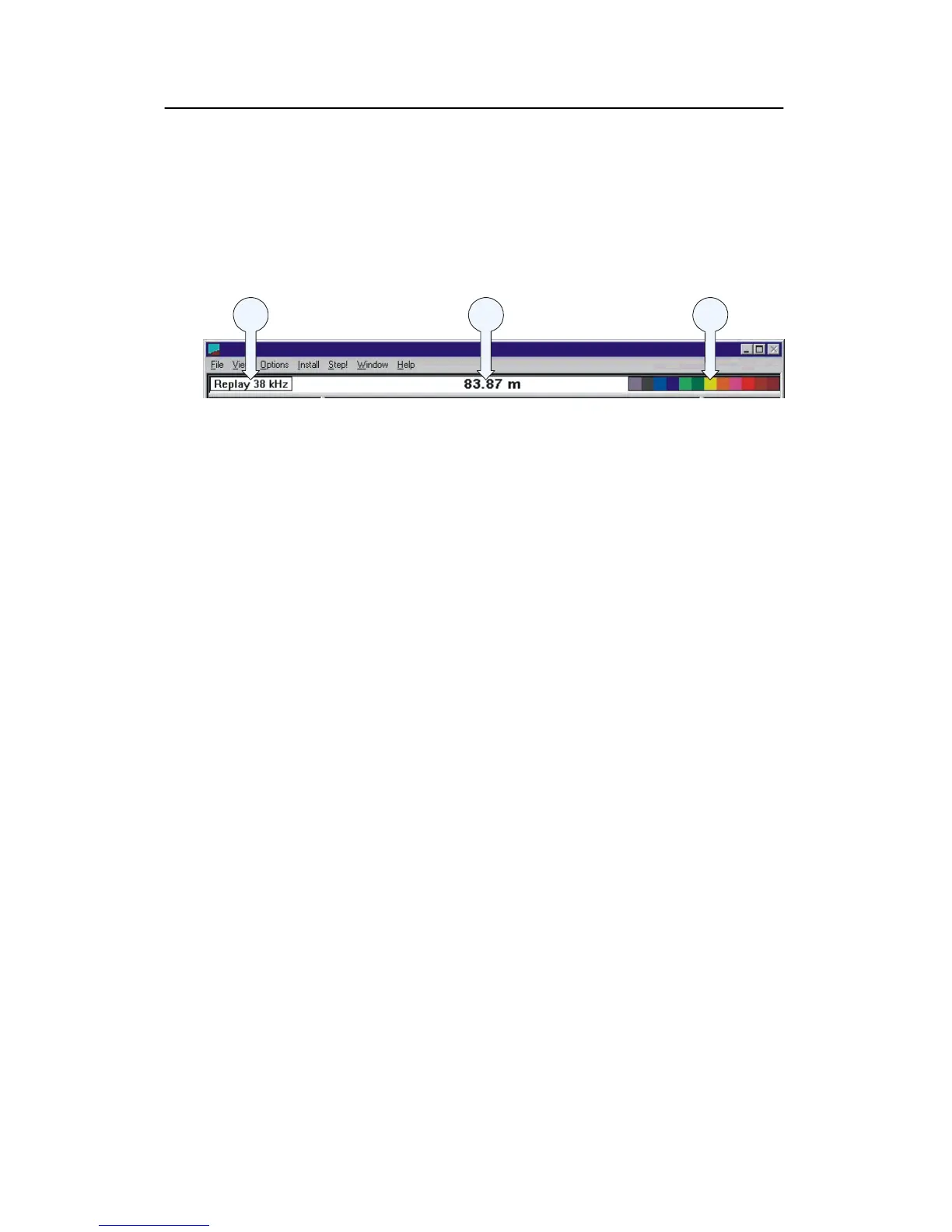

(CD10205)
AB
C
(A) Transceiver settings: Current mode and frequency
(B) Bottom detection: Current depth
(C) Colour Scale
The Header view is a part of the channel. If more than one
channel is displayed, the Header view is duplicated as well.
The Header view provides direct access to the following
dialogue boxes:
• Right-click in the Transceiver settings field (on the Mode
and frequency information) to open the Transceiver
Settings dialogue box.
• Right-click in the Bottom detection field (on the Depth
value) to open the Bottom Detector dialogue box.
• Right-click on the Colour scale to open the
Colour Scale
dialogue box.
Related topics
→ Transceiver Settings, page 119
→ Bottom Detector, page 78
→ Colour Scale, page 81
