Simrad ES60
18
857-160970 / Rev.H
Echo frames
Overview
The ES60 Echo frames are the main information bearer on the
echo sounder display. The Echo frames are usually presented in
pairs with two echo frames for each channel.

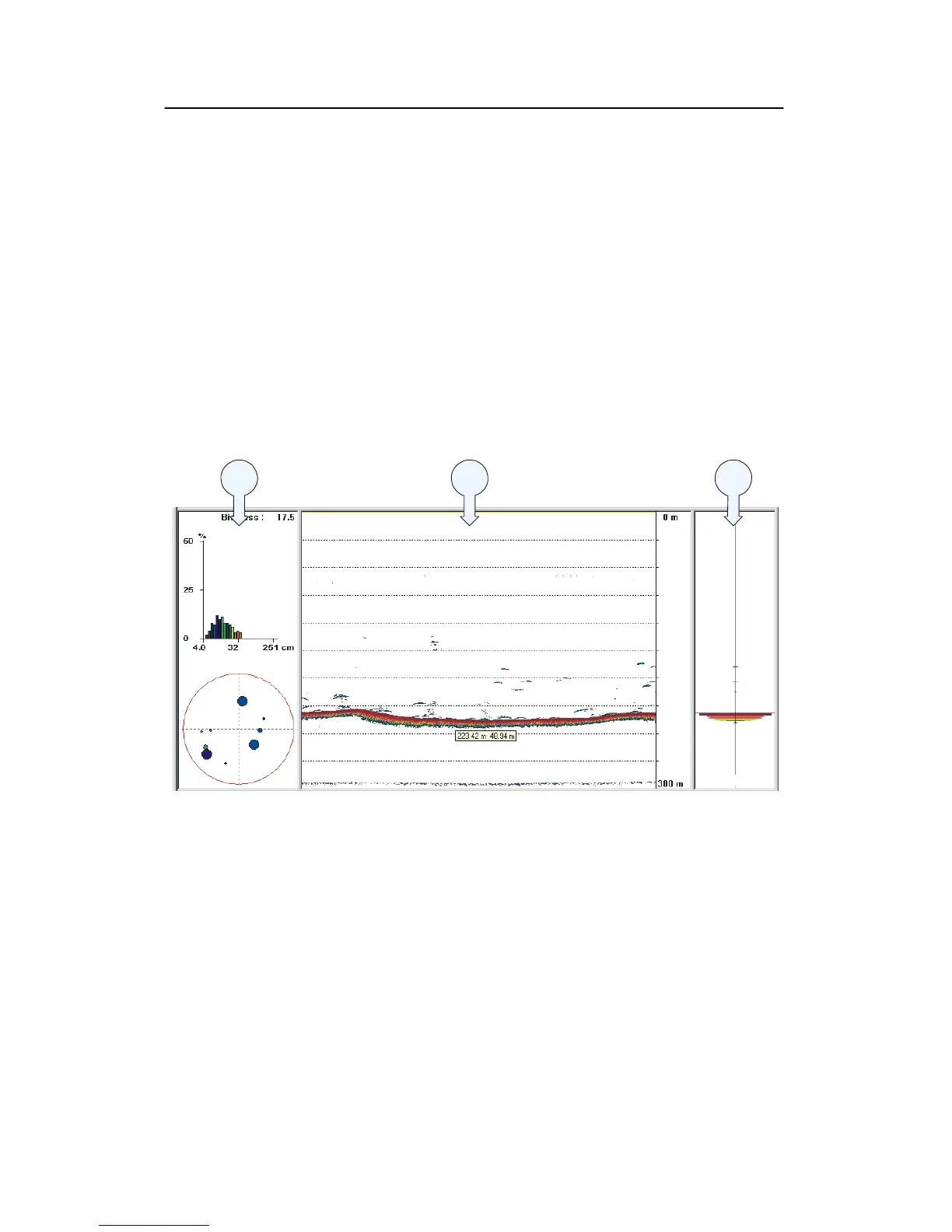

The Echo frame contains the following views:
(A) Single echo view
(B) Echogram and Range view
(C) Scope view
Note that the Single Echo view is only available in split-beam
versions of the echo sounder.
AB
C
(CD10206)
Single Echo
The Single Echo view contains information on detection of
single echoes. Two plots are visible in this view:
• The top plot shows a histogram of the fish size distribution
for the single echoes detected in the echogram.
• The bottom plot shows the position within the beam of the
detected single echoes for the current ping (largest circles)
and the three previous ping (smaller circles).
• The upper right corner of the view shows the Biomass value
calculated from the total biomass of fish, plancton etc from
the current echogram.
Note that the colours used to display this information are
determined from the settings in the Colour Scale.
