Bottom Range

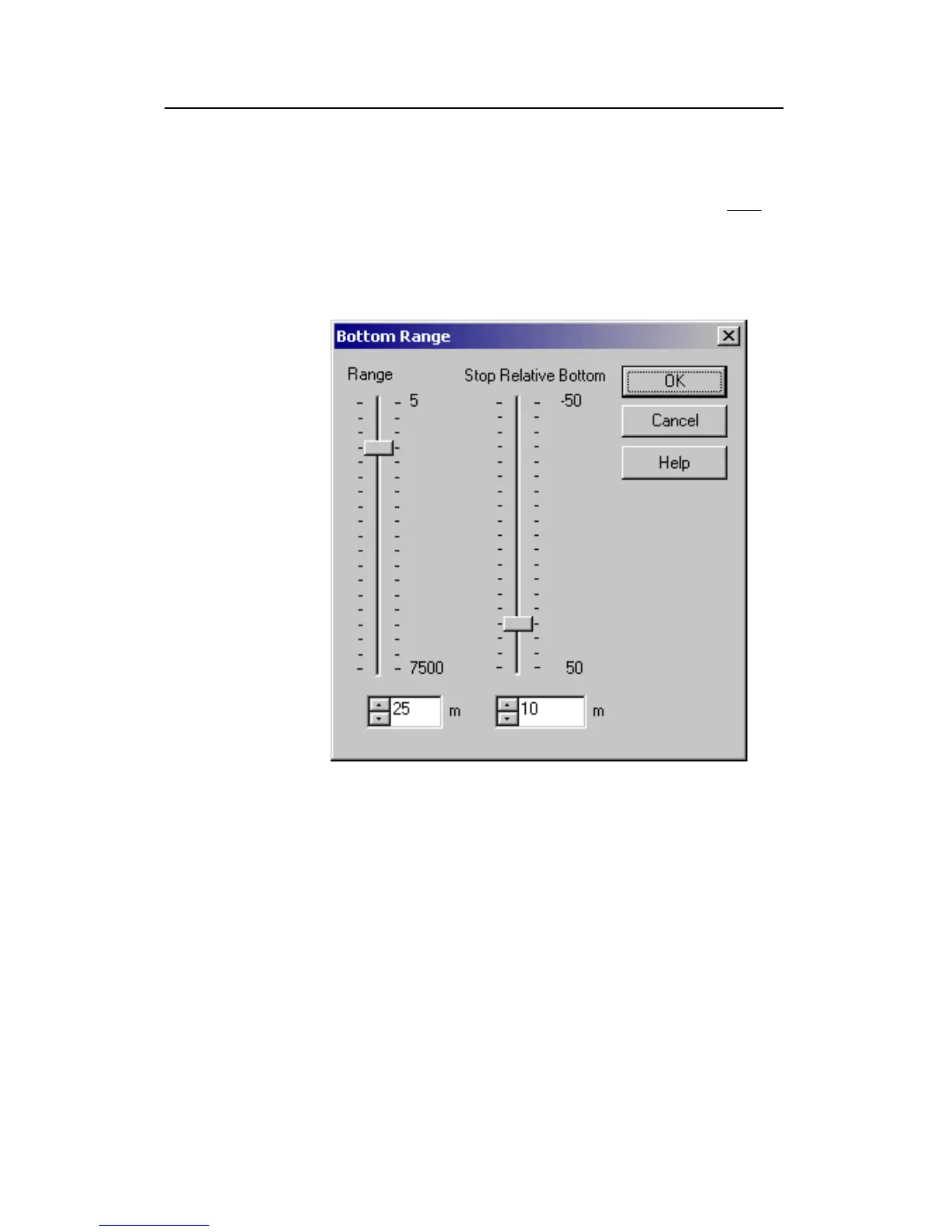

The Bottom Range dialogue box opens if you click the right
mouse button in the range field in the Echogram and Range
view while operating with a Bottom Range echogram.
The different echograms are explained in the Echogram
dialogue box.
Range - This parameter controls the vertical depth range across
the echogram.
Stop Relative Bottom - This parameter controls the depth offset
at the lower boundary of the echogram relative to the detected
bottom; positive values downwards.
Note that you can also change the range using the mouse wheel.
This is described in the Echo frames chapter.
Related topics
→ Echogram, page 85
