Simrad GC80/GC85 Expanded Gyro Compass
32 20221529 / C
F15
F16
F11
F10
F2
F1
F5
F6
F7
F9
F3
F12
F8
F4
F13
F14
F17

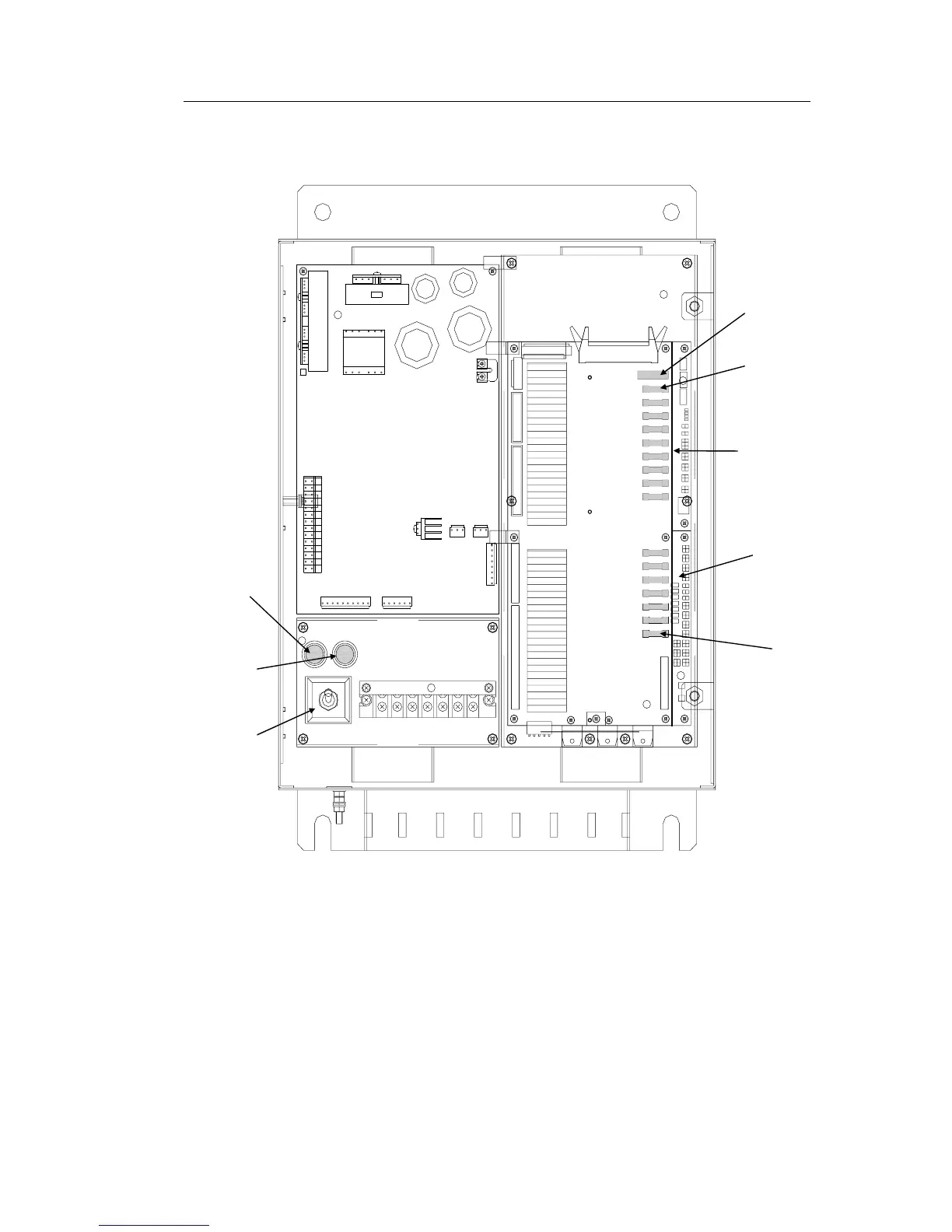

WARNING Make sure that the main power switch SW1 is
turned OFF before any fuses are replaced!
Note! The fuses in the Expanded Control unit are open glass type and
may be damaged if handles with force.
1 Pull the broken fuse up from the holder.
2 Re-install a new fuse by carefully pushing it into the
holder. When correctly located, it should be fixed 1-2mm
above and parallel with the mounting level.
SW1
MAIN
POWER
SWITCH
F101
F102
F3, F4, F8,
F13, F14
F17
F15
F1 - F2, F5 - F7,
F9 - F11
F16
