Simrad GC80 EXPANDED User Manual

DIP SWITCH SETTINGS
20221529 / C 95

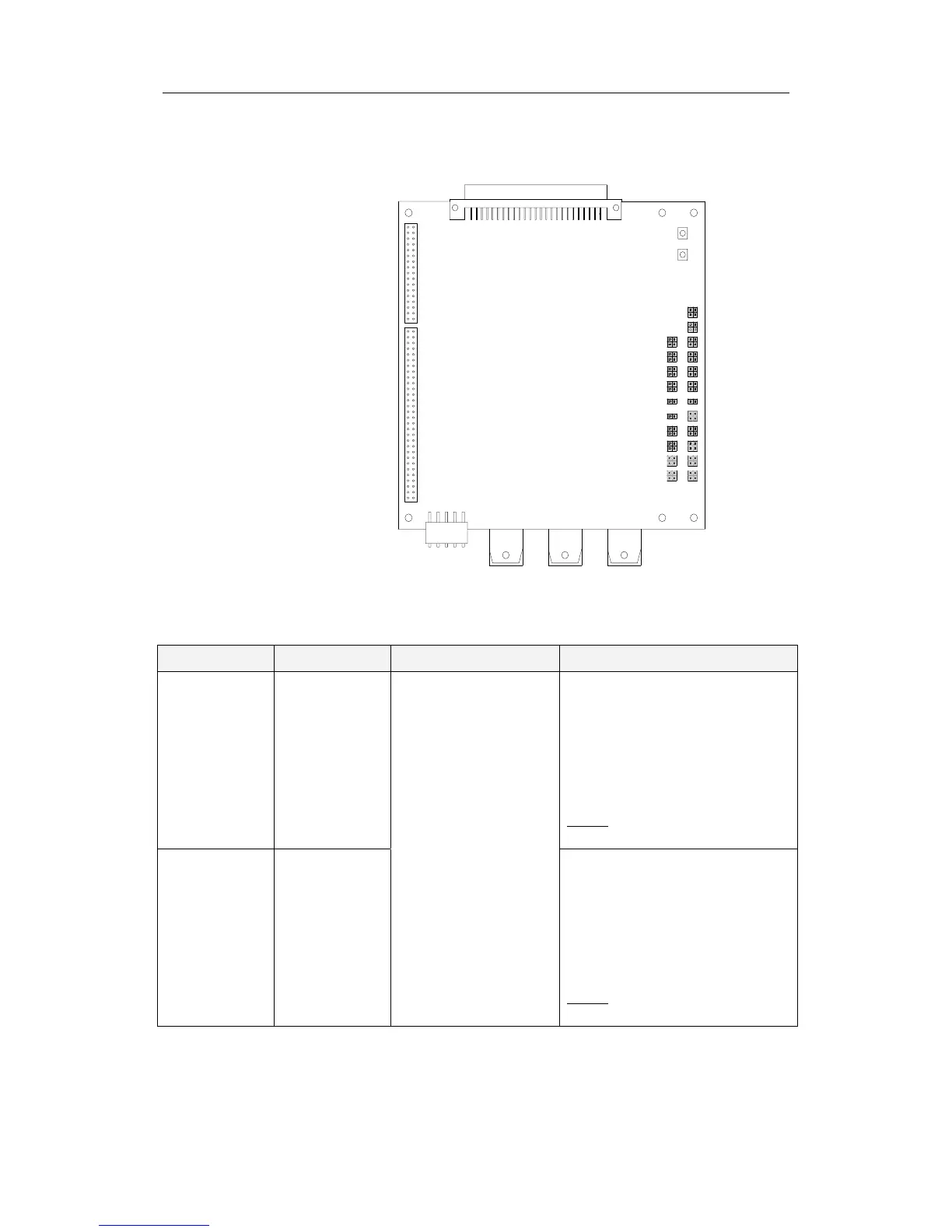

SIFC board
J3
J2
J1
J50
J26
J27
J24J25
J22J23
J20J21
J18J19
J12J13
J10J11
J8J9
J6J7
J14
J16J17
J15
Jumper settings on SIFC board
JUMPER DEFAULT FUNCTION DESCRIPTION
J6 3-4 short
Output port: GTERM board, TB2:
"3TX"
1-2 short = IEC61162-2 or
TOKIMEC version
3-4 short = IEC61162-1 ed.2
Ref. page 4.
NOTE
: Never use both jumpers
at the same time!
J7 3-4 short
Serial signal output
setting
Output port: GTERM board, TB2:
"4TX"
1-2 short = IEC61162-2 or
TOKIMEC version
3-4 short = IEC61162-1 ed.2
Ref. page 4.
NOTE
: Never use both jumpers
at the same time!
