DIP SWITCH SETTINGS
20221529 / C 89

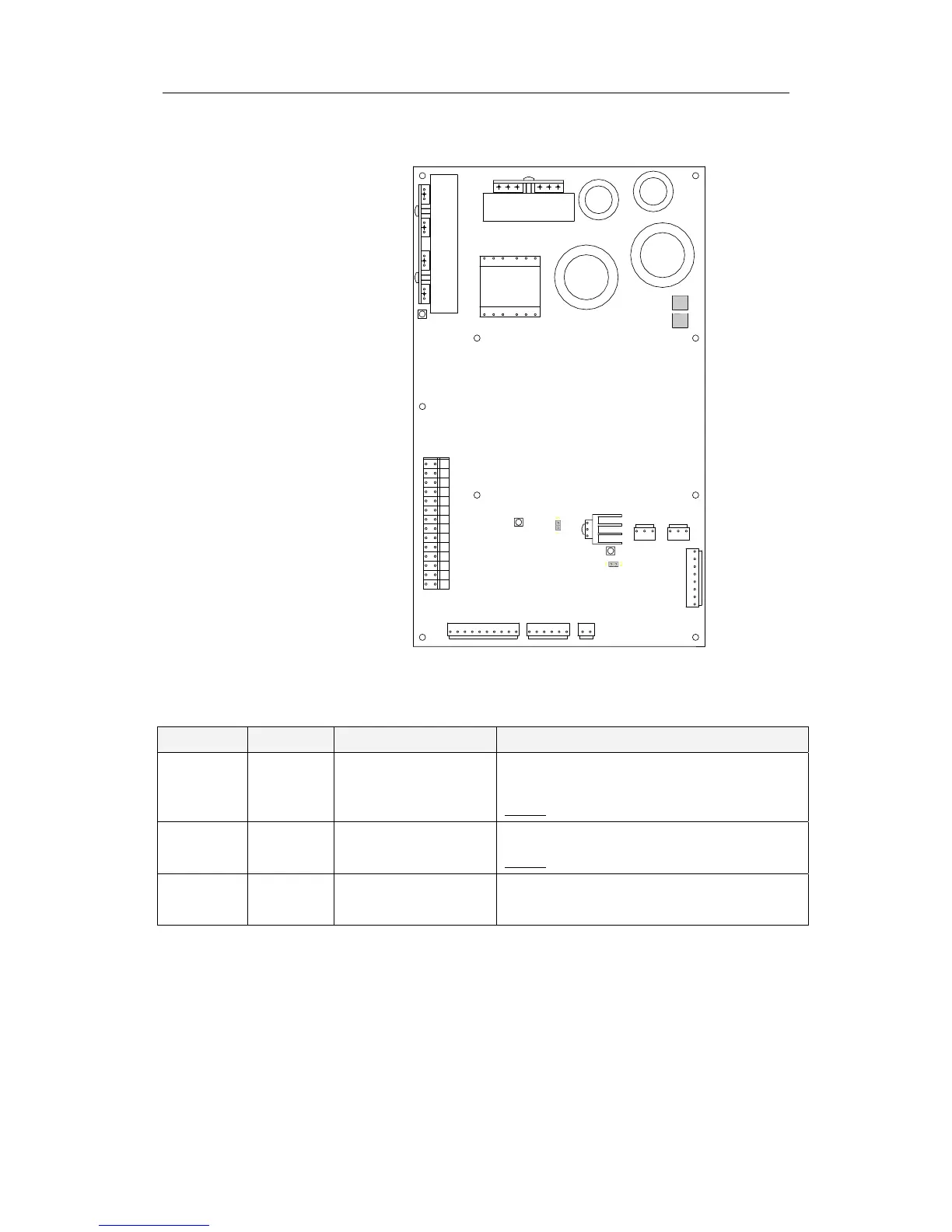

GPOWER board
J7
J8
TB4
TB3
Jumper settings on GPOWER board
JUMPER DEFAULT FUNCTION DESCRIPTION
J7 Open
or
Short
Over-current limit set Over-current value of dc24v for Master
compass is set up.
NOTE
: Should not be changed.
J8 Open Over-current limit
change time
Used for inspection at a factory.
NOTE
: Should not be changed.
TB3 – TB4 Open Main power supply
setting
Open = 220V AC
Short = 100/110/115V AC
To Next Page
