Dimensioned drawings | NSO evo2 Installation Manual

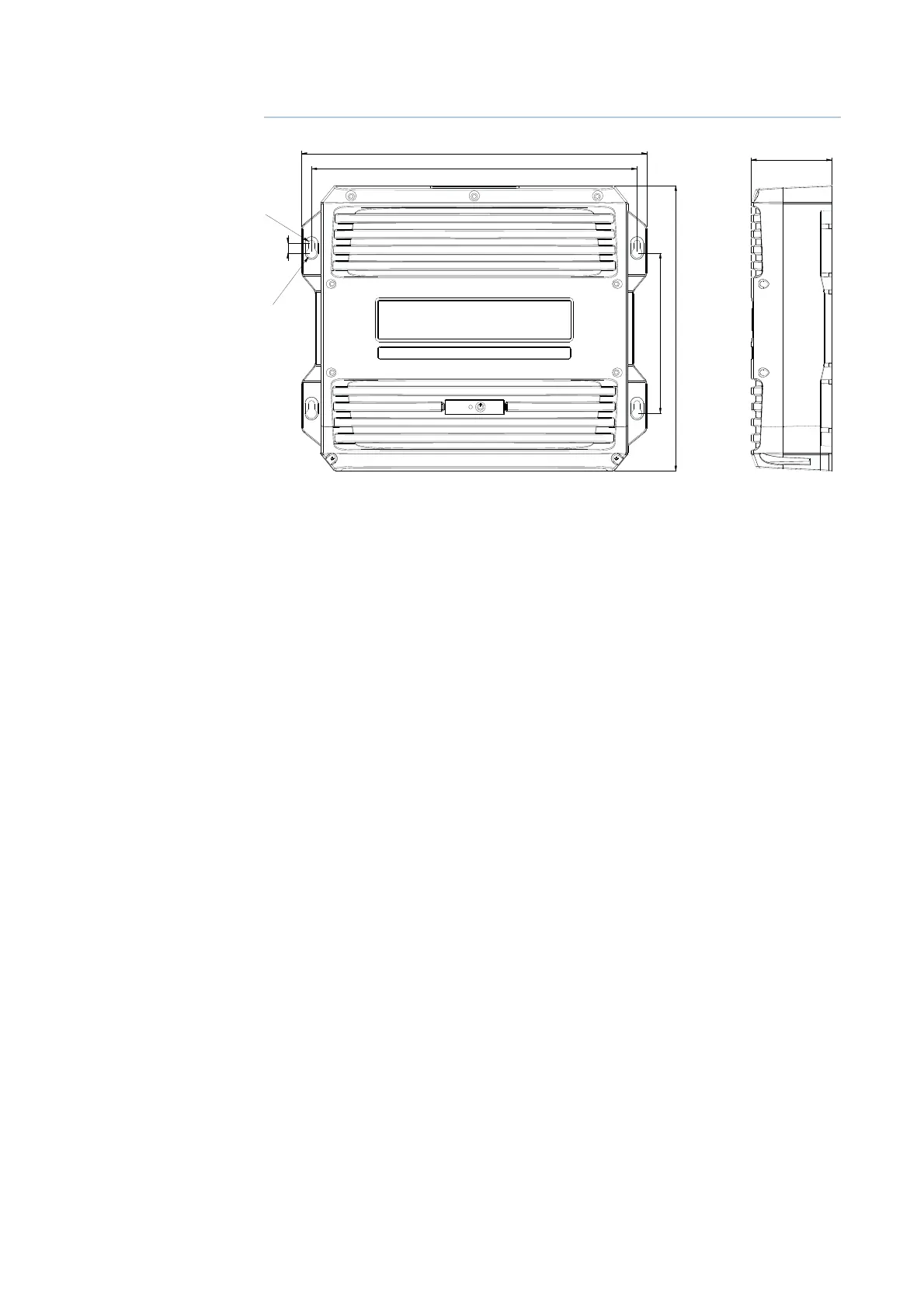

Dimensioned drawings
232 mm (9.14”)
281 mm (11.05”)
R=2.5 mm
(0.1”)
R4.2 mm
(0.17”)
8.0 mm (0.31”)
66 mm (2.58”)
265 mm (10.42”)
130 mm (5.13”)
8
