Depth line
When toggled on, a line is shown on the bottom surface. The depth line makes easier to
distinguish the bottom from fish and structures.
Amplitude scope
The amplitude scope is a display of an echo sounding on the panel. The strength of the
actual echoes are indicated by both width and color intensity.

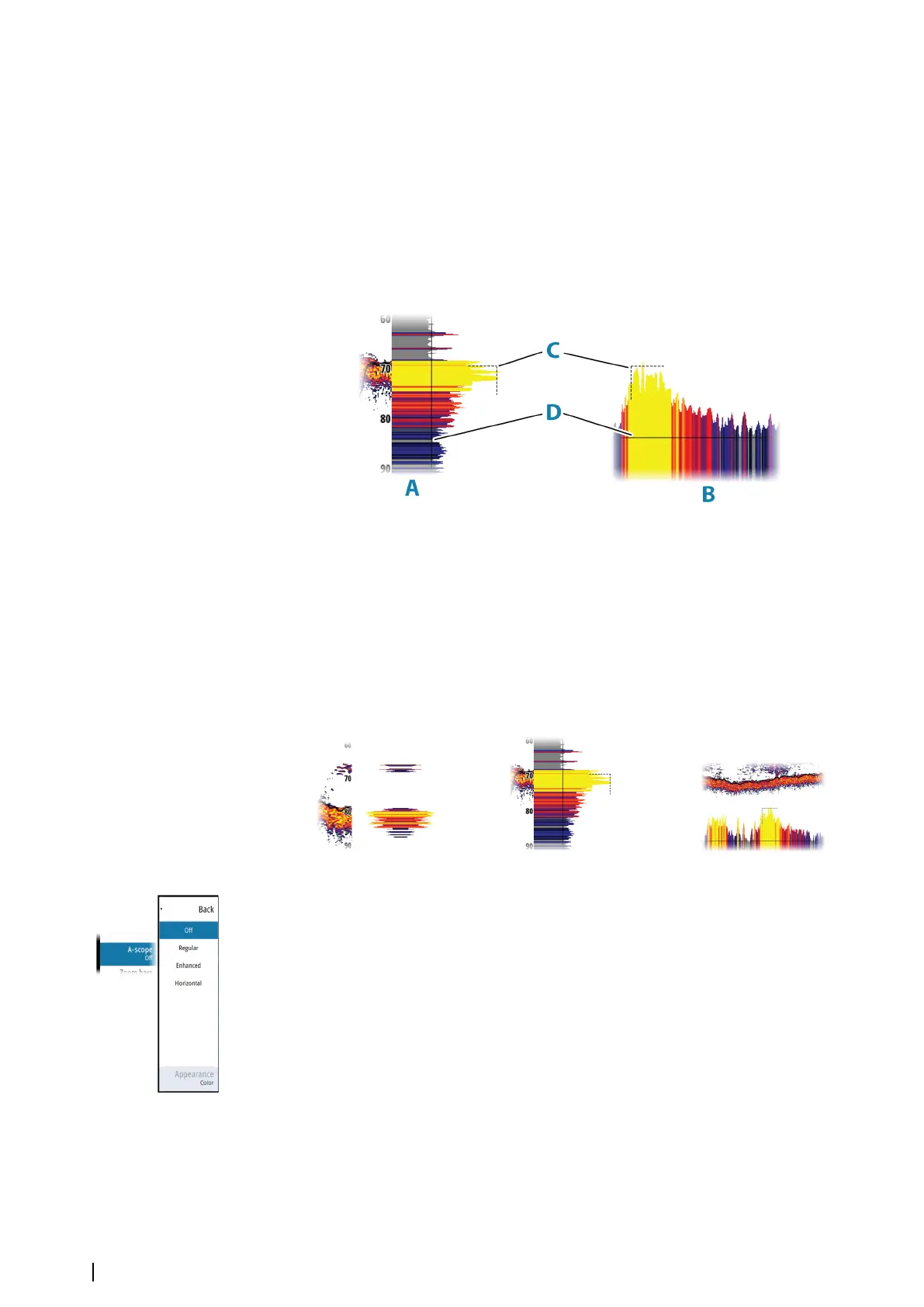

Enhanced and horizontal amplitude scope indicators
The enhanced and horizontal amplitude scope show 2 indicators:
A Enhanced amplitude scope image
B Horizontal amplitude scope image
C Cross indicator - indicates where in the echo sounding the bottom is located.
D Threshold line - indicator of the current gain. It tells you the amplitude of the return
echo displayed on the panel. The gain setting helps to distinguish return echoes
between echo targets and noise.
Amplitude scope options
Regular Enhanced Horizontal
Off
Removes the amplitude scope from the panel.
Regular
Displays the amplitude scope vertically on the side of the panel. There are no customizable
options to the appearance of the regular amplitude scope display.
If the cursor is placed on the panel, the amplitude scope continues to display the newest
echo sounding as it appears on the panel.
Enhanced
Displays the amplitude scope vertically on the side of the panel. Select the appearance menu
option to change the enhanced amplitude scope display.
If the cursor is placed on the panel, the amplitude scope displays the echo sounding at the
cursor.
74
Echosounder | NSS evo3S Operator Manual
