SideScan

About SideScan

SideScan provides a wide coverage in high detail of the seabed to the sides of your boat.

The SideScan panel is available when a SideScan capable transducer is connected to the

system.

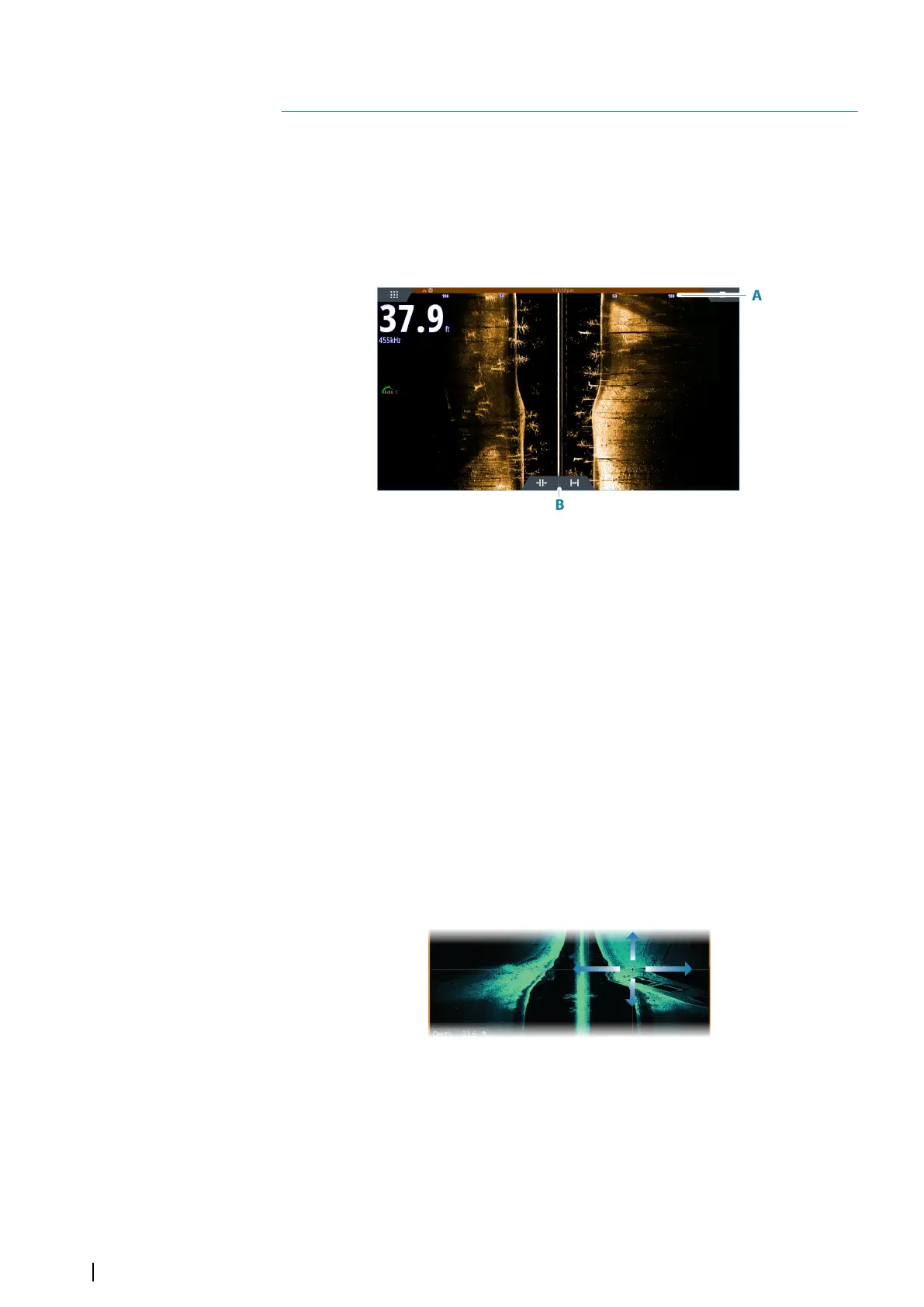

The SideScan panel

A Range scale

B Range icons

Zooming the image

Use the range icons or change the range menu setting to specify the distance out to the left

and right of the center displayed in the image. A change in the range causes a zoom in or

out of the image.

Using the cursor on the panel

When you position the cursor on the panel, the image pauses and the cursor information

window is activated. The left/right distance from the vessel to the cursor are shown at the

cursor position.

Viewing history

In a SideScan view, pan the image to see sides and history by maneuvering the image left,

right, and up.

To resume normal SideScan scrolling, select the clear cursor option.

Recording SideScan data

Displays the record log dialog. SideScan data can be recorded by selecting the correct file

format (xtf) in the record dialog. For more information, refer to "Recording log data" on page 70.
