Simrad NSS9 evo3S User Manual

Service report

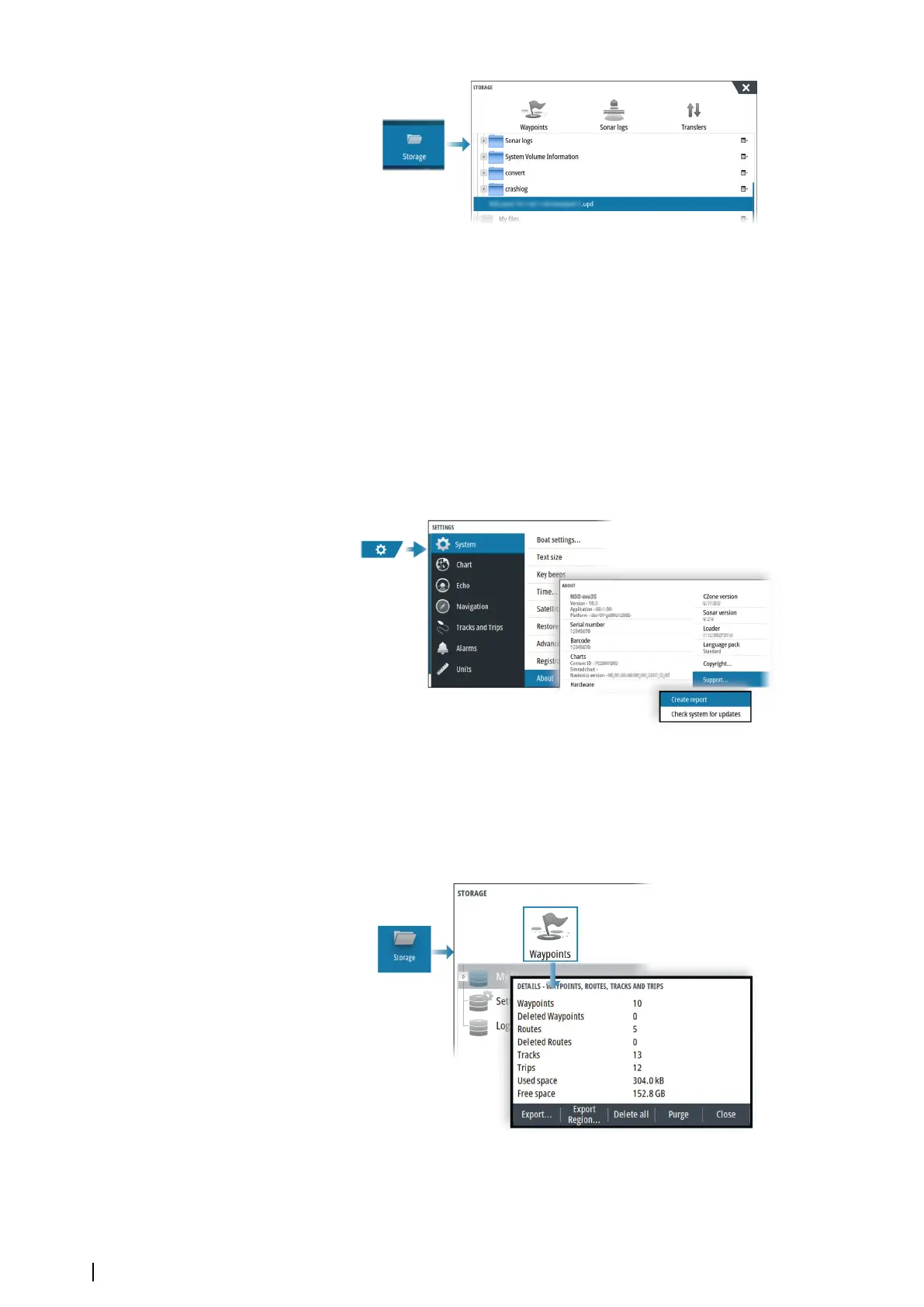

The system has a built-in service assistant that creates a report about the unit. The service
report is used to assist in technical support enquiries.
It can also include information about devices connected to the network(s).
The report includes the software version, serial number, and information from the settings
file.
If you call technical support before creating the report, you can enter an incident number to
assist with tracking. You can attach screenshots and log files to the report.
Ú
Note: There is a 20MB limit for the report attachments.
The report can be saved to a storage device and emailed to support.
You can also upload it directly if you have an internet connection.
Backing up your system data
It is recommended to regularly copy user data and your system settings database as part of
your back-up routine.
Waypoints
The waypoints option in the storage dialog allows for managing user data.
Export format
The following formats are available for export:
146
Maintenance| NSS evo3S Operator Manual

Simrad NSS9 evo3S Specifications

General

Display Size	9 inches
Resolution	1280 x 720 pixels
Touchscreen	Yes
Connectivity	Wi-Fi, Bluetooth
Operating System	Simrad OS
Screen Brightness	1200 nits
Waterproof Rating	IPX6 and IPX7
NMEA 2000 Connectivity	Yes
Internal Memory	16 GB
Radar Support	Yes
CHIRP Sonar	Yes
Chartplotter	Yes
Sonar	Yes
Ethernet Ports	1
SD Card Slots	2 microSD slots
Operating Temperature	-15°C to +55°C
Storage Temperature	-20°C to +60°C
StructureScan 3D	Supported
GPS	Built-in
