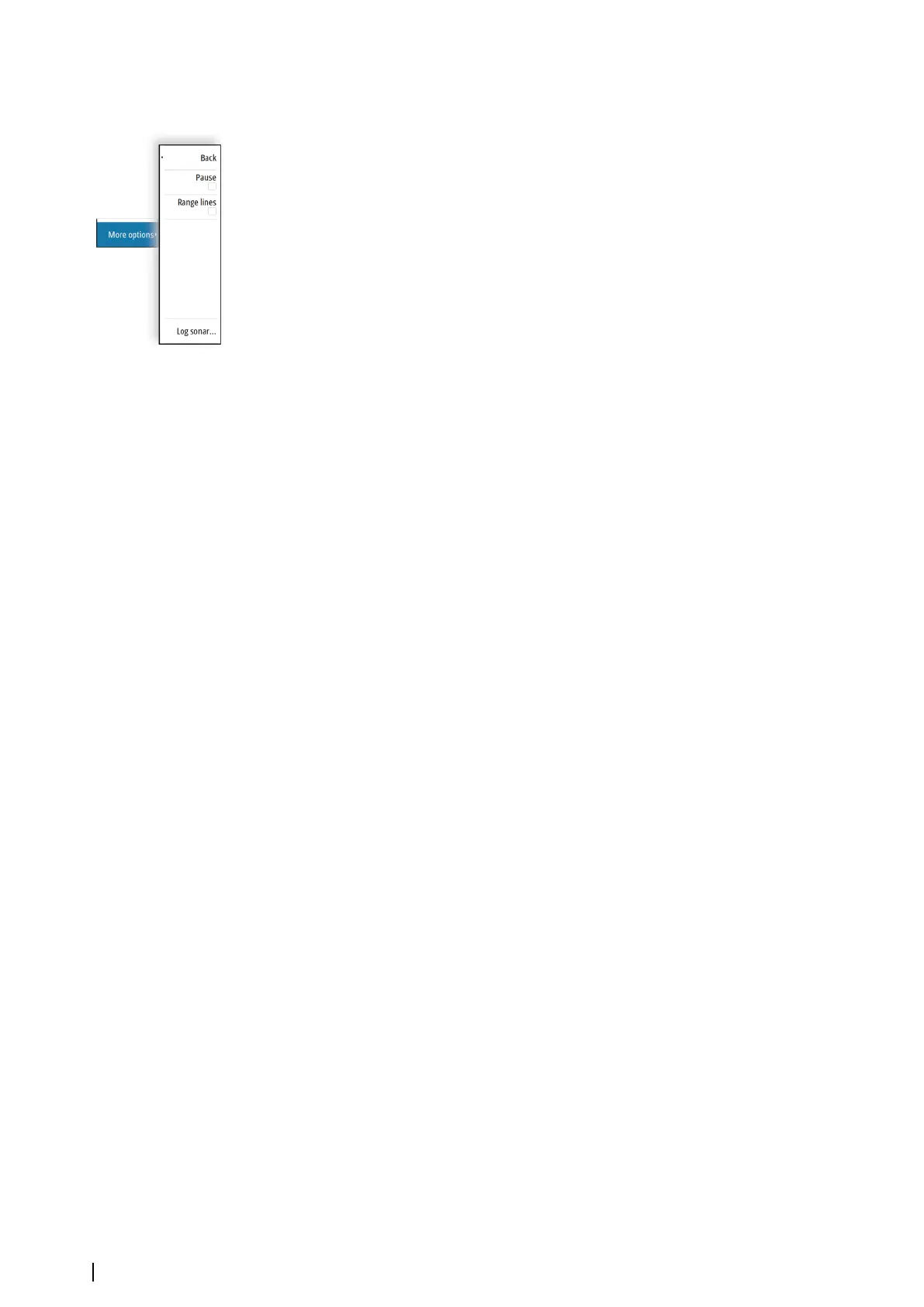

More options
Pause
Pauses the image, allowing you to examine the image in detail.
The pause function stops the echosounder from pinging. The system is not collecting data
when paused in this manner.
Range Lines
Range lines can be added to the image to make it easier to estimate distance.
Recording SideScan data
Displays the record log dialog. SideScan data can be recorded by selecting the correct file
format (xtf) in the record dialog. For more information, refer to "Recording log data" on page 70.
Echosounder settings
Use the echosounder settings dialog to make settings to your echosounder system. Refer to
"Echosounder settings" on page 78.
82
SideScan | NSS evo3S Operator Manual

Simrad NSS9 evo3S Specifications

General

Display Size	9 inches
Resolution	1280 x 720 pixels
Touchscreen	Yes
Connectivity	Wi-Fi, Bluetooth
Operating System	Simrad OS
Screen Brightness	1200 nits
Waterproof Rating	IPX6 and IPX7
NMEA 2000 Connectivity	Yes
Internal Memory	16 GB
Radar Support	Yes
CHIRP Sonar	Yes
Chartplotter	Yes
Sonar	Yes
Ethernet Ports	1
SD Card Slots	2 microSD slots
Operating Temperature	-15°C to +55°C
Storage Temperature	-20°C to +60°C
StructureScan 3D	Supported
GPS	Built-in
