Option 10 kW 25 kW 3G 4G Halo
Adjust local interference rejection x x
Adjust open array park angle x
Halo light x
Reset radar to factory defaults xxxxx
¼
Note: Other installation options are available for the R3016 12U/6X systems. Refer to the
R3016 12U/6X Commissioning and Maintenance manual for details.
Radar source
More than one antenna can be connected to the radar control unit.
Use this option to select the antenna that is to be configured.

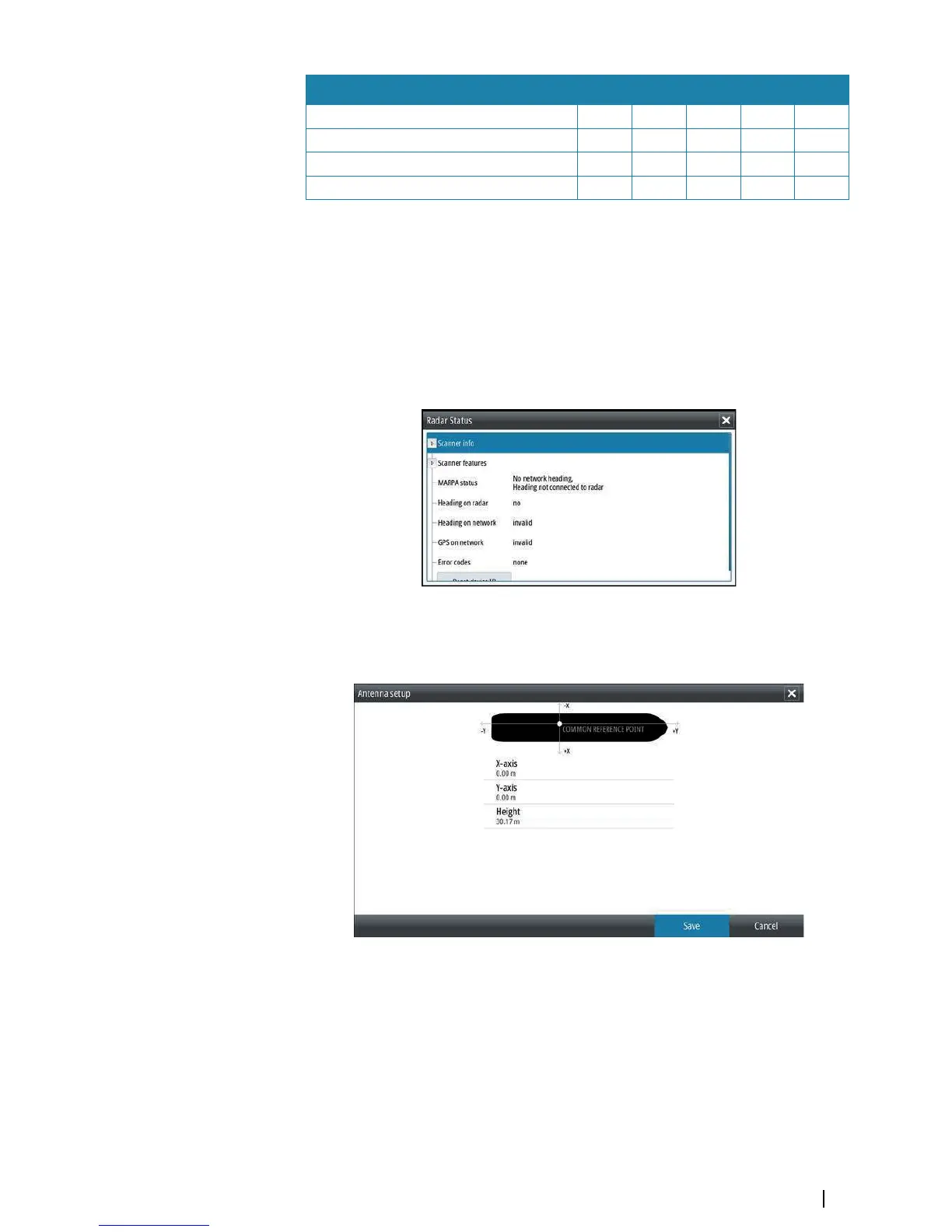

Radar status
Primarily for information and to assist with fault finding.
Antenna setup
This function is used for setting position and height of radar transceiver on the vessel.
The approximate position of the transceiver on the vessel must be set in order to correctly
position the vessel outline when viewing close range settings.
The antenna height is the height of the antenna above the water line, when vessel is carrying
a typical load. It is very important to set the antenna height correctly as this will affect the sea
clutter function. Do not set the height to 0.
Adjusting range offset
The radar sweep should commence at your vessel (a radar range of zero). You may need to
adjust the radar range offset to achieve this. If this is set incorrectly, a large dark circle in the
center of the sweep might occur. You might notice straight objects such as straight sea walls
Software setup | R2009/R3016 User manual
53
