The user interface

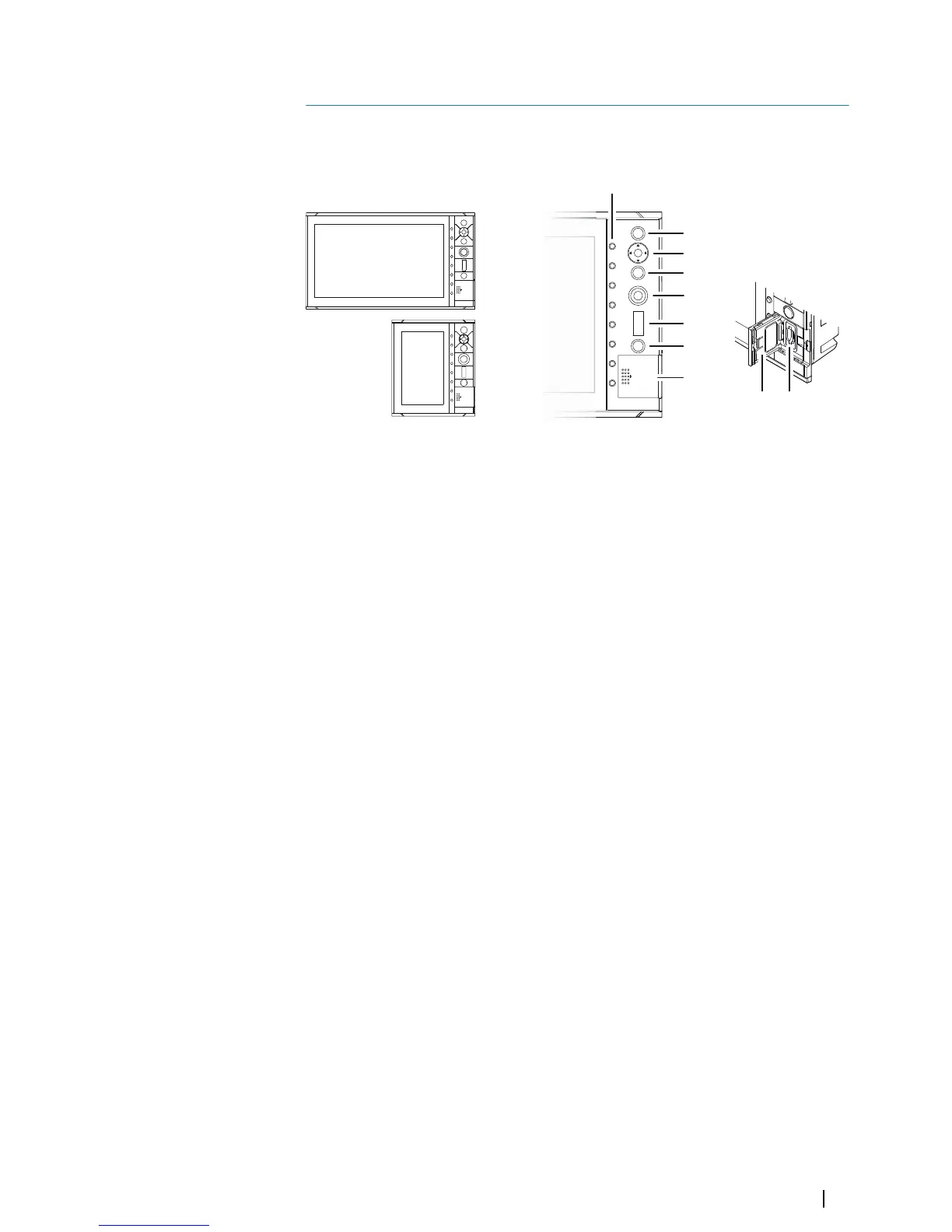

Front panel and keys
1
2
3
4
5
6
7
8
89
1 Softkeys
Press a key once to access options for the corresponding function.
2 Enter (ENT) key
With no menu or cursor not active: no function.
With cursor active on PPI: press to acquire a selected target, press and hold to
display options for managing targets.
Menu and pop-up operation: press to select an option or activate/deactivate an
option.
3 Arrow keys
With no menu active: press to move the cursor on the radar PPI.
Menu operation: press to move through menu items and to adjust a value.
4 Exit (EXIT) key
With no menu or cursor not active: no function.
With cursor active on PPI: press to remove cursor.
Menu operation: press to return to previous menu level or to exit a dialog.
5 Rotary knob
With no menu active: behavior depending on operational mode.
Menu operation: rotate to scroll through menu items and to adjust values, press to
select or to save settings.
6 Range (RANGE) key
Press the + or the - indication to increase or decrease the radar range.
7 Standby/Brilliance (STANDBY/BRILL) key
Press once to display the Brilliance/Standby pop-up, press again to toggle
between Standby and Transmit mode.
Press and hold to switch the radar system on/off.
8 Card reader door
9 SD card reader
2
The user interface | R2009/R3016 User manual
