Softkeys
The softkeys are always accessible, and the softkey bar is always displayed on the radar panel.
When a softkey is pressed, the function for the selected softkey becomes available.
The arrow keys, the rotary knob and the ENT key have different functions depending on
which softkey is selected.
More details about the softkey functionality are available in the separate section describing
the functions later in this manual.
Softkey pop-ups

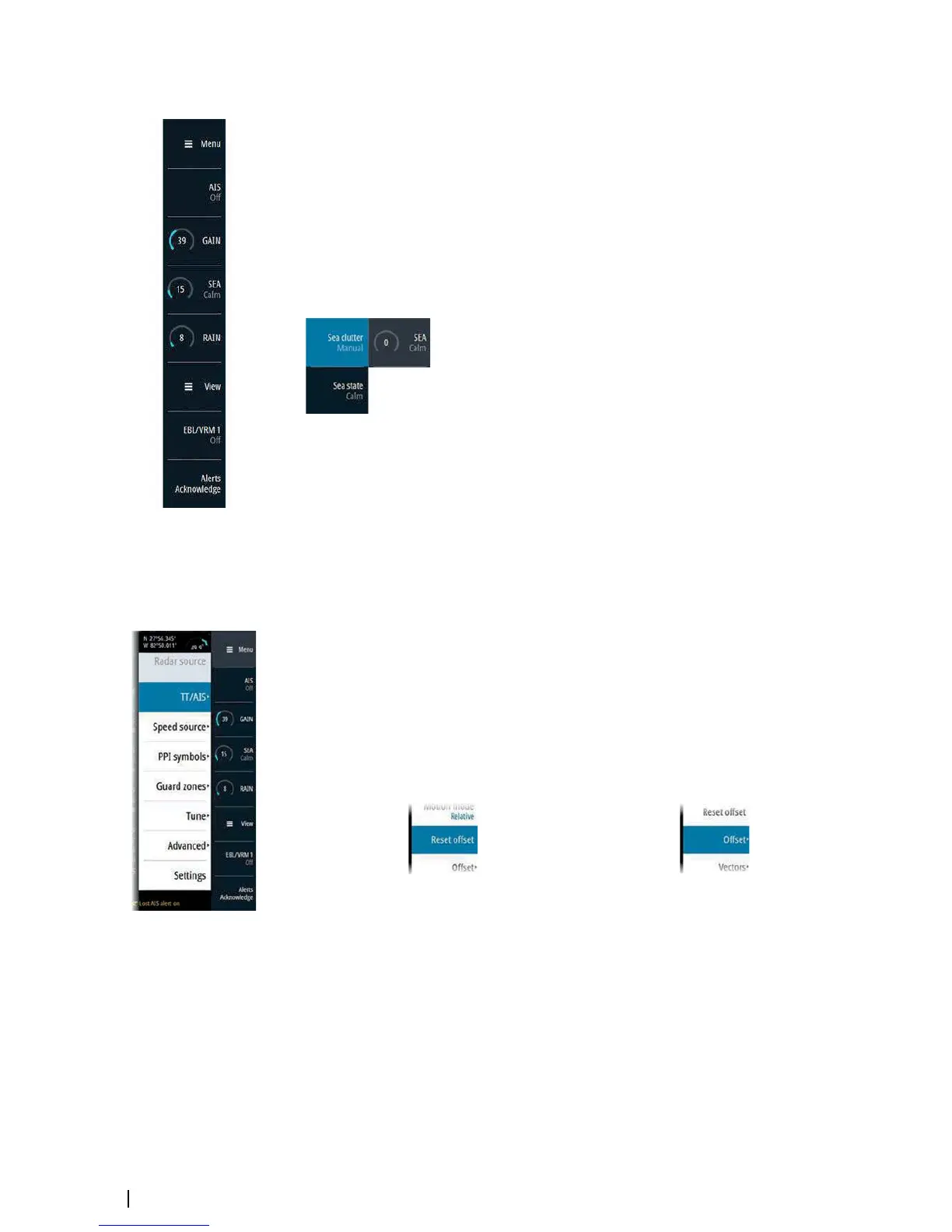

If you press the GAIN, SEA and EBL/VRM softkey twice, their corresponding pop-up is
displayed.
If a pop-up has more than one option, you select the options by using the arrow keys.
You remove the pop-up and revert to the softkey's main function by re-pressing the softkey,
by pressing another softkey or by pressing the EXIT key.
The menu system
The menu system consists of the main menu with sub menus. The main menu gives access
to the Settings dialogs.
If a menu is inactive for 10 seconds the menu will automatically close.
Main menu and sub menus
You access the Main menu by pressing the Menu softkey.
• Use the up and down arrow keys or turn the rotary knob to move up and down in a menu
• Press the ENT key, the right arrow key or the rotary knob to access a sub menu, to toggle
options and to confirm a selection
• Press the EXIT key or the left arrow key to return to previous menu level and then exit the
menu system
A selected menu item is indicated with a blue background. If a sub-menu is available this is
indicated with a right arrow after the text.
Selected menu item
Sub-menu indication
Settings dialogs
The various Settings dialogs provide access to system settings and for vessel specific settings.
You access the Settings dialogs from the Main menu.
14
The user interface | R2009/R3016 User manual
