You can select to show target vectors with true or relative speed, and you can set the length
of the vector. The length represents the vessel movement within the given time period.

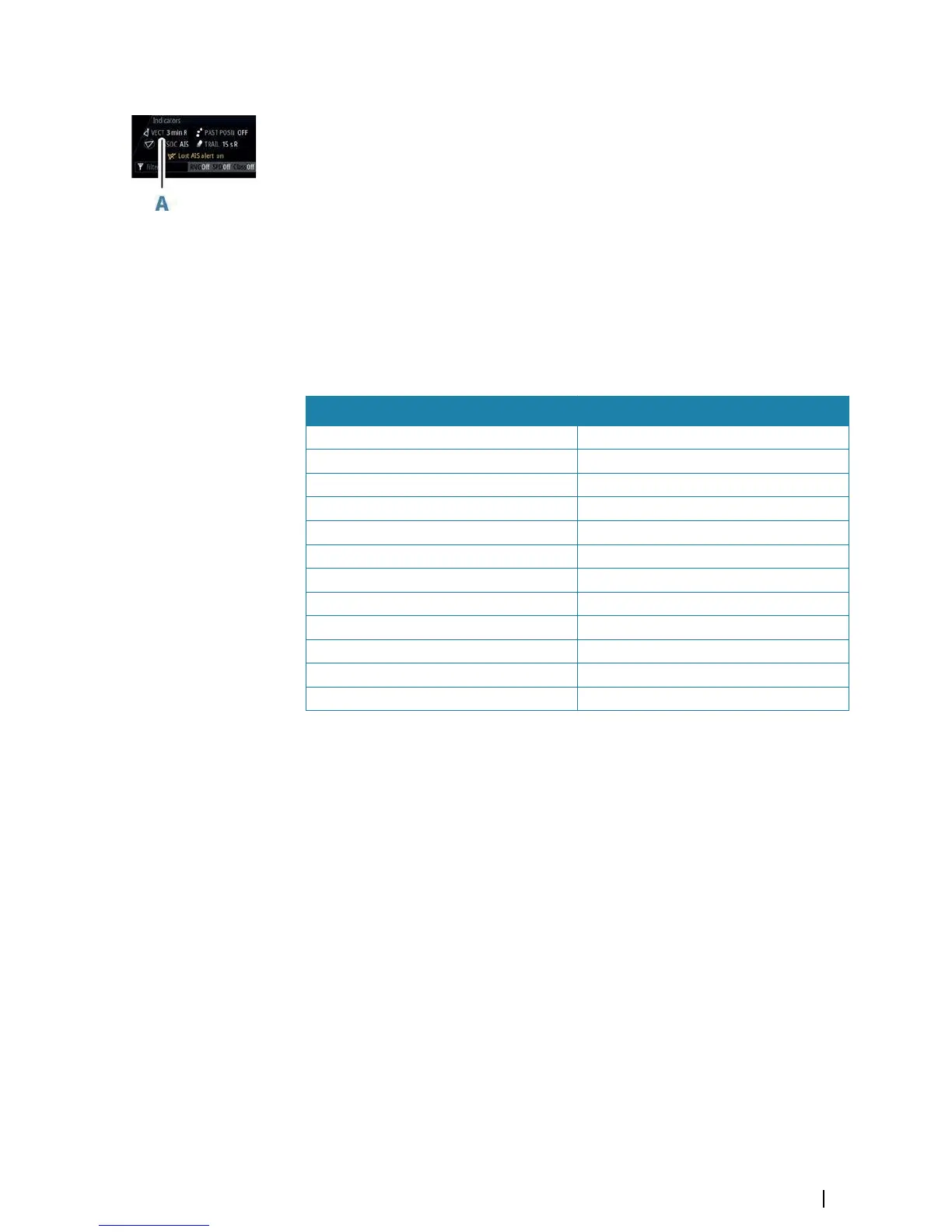

Vector settings are shown in the Target indicators panel (A).
¼
Note: True speed indication is not possible if there is a Gyro or Speed source failure. If the
vectors are in true presentation and one of the sensors (gyro or speed log) fails, the
presentation is automatically switched to relative.
Cursor bearings
You can select to show the cursor bearings as True or Relative to own vessel.
¼
Note: True can only be selected when a gyro is available.
Applying default control settings
The default control settings allows for quickly setting the system back to a known state.
The default parameters are:
Function Default setting
Vector Mode - relative; time - 6 min
Target trails Mode - relative; time - 6 min
Collision warning CPA - 2 NM; TCPA - 12 min
VRM EBL One EBL/VRM, EBL - 0.25 NM; VRM - 0
Range 6 NM
Range rings Off
Orientation North up
Motion mode True
Off-centering Look ahead
Speed source EPFS; Stabilization - Ground
Past position Off
AIS On
Radar view options | R2009/R3016 User manual
23
