Introduction
R2009 and R3016 Radar Control units
The R2009 and R3016 are dedicated Radar Control units with integrated 9-inch portrait and
16-inch widescreen display. The units are compatible with a range of Simrad radar solutions,
including Halo™ Pulse Compression, Broadband 3G™/4G™, and HD Digital radars.
The R2009 is fitted with a high brightness screen and is suited for both pilot house and
outside installation. The R3016 is suited to pilot house installation only.
¼
Note: The R3016 is also used as control unit in the Category 3 type approved R3016
12U/6X Radar systems. Separate manuals are delivered for the R3016 12U/6X Radar
systems.
O2000 Controller
The optional O2000 Controller can be used to remotely operate up to 4 radar control units.
Separate documentation is delivered for the O2000 Controller.
System diagrams
The images on the next pages shows examples of typical radar installations with the R2009
and R3016 control units.

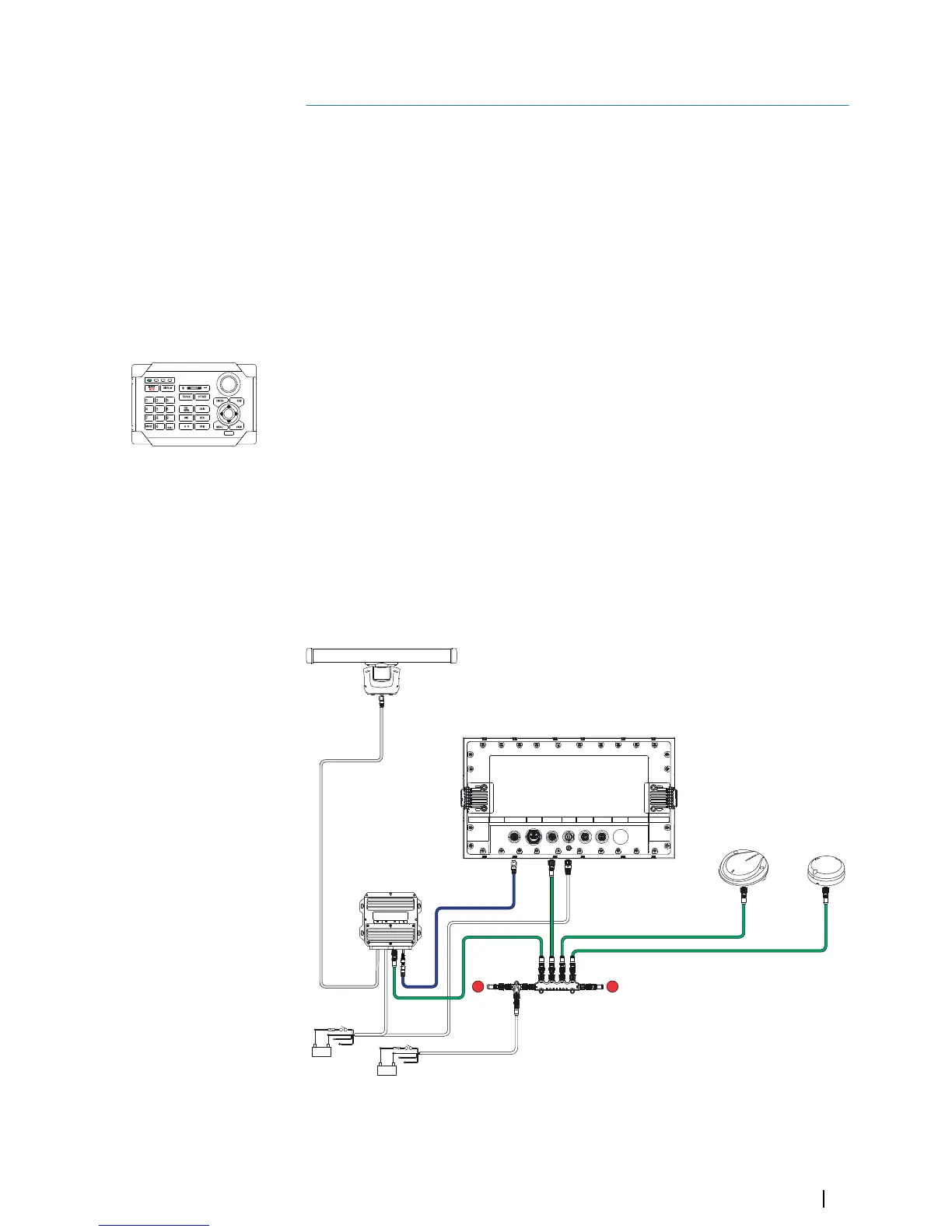

• The first illustration is an example of a basic system installation with one control unit, a
radar antenna, a heading sensor and a position sensor
• The second illustration shows a complex radar installation. In addition to the R3016
Control unit and sensors this has the optional O2000 Remote controller and two radar
antennas connected. It is also indicated how the system can be combined with an MFD
and with a second monitor mirroring the radar signal.
+
_
12 / 24 V DC
+
_
12 V DC
TT
ETHERNET NMEA2000 POWER NMEA0183 NMEA0183HDMI
R3016 (or R2009)
Halo
Heading and position sensors
RI-12
STANDBY
C
ABC DEF
GHI
JKL
MNO
PQRS TUV WXYZ
1
Introduction | R2009/R3016 User manual
9
