Robertson AP45 Autopilot
Spare parts and drawings
Simrad Robertson AS
Egersund - Norway
Page 8-5
20157202 G40A Gyro Interface Unit
20157228 G40A PC-board assy.
44103638 Fuse 0.5A/250V 5x20mm F1
44122406 Trim pot. multiturn 10K VR1
44123792 Capacitor (tantalum drop) 1mF/35V C5, C6, C7
44111409 Capacitor 4.7mF/35V C18, C20, C37
44116812 Diode 1N4006 D10, D13, D14
44115566 Diode ref. 2.5V D12
44132199 LED Network 8xRed D1-D8
44120871 Transistor IRFD110 Q1
44116788 IC 5V regulator LM340AT-5 IC16
44116798 IC 5V regulator 78L05 K9
44132074 IC 5V regulator LM340LAZ5 IC9
44106623 IC opto-coupler CNY17-2 IC10, IC11, IC12, IC13, IC14
44118529 IC Dual Op-amp LM358 IC6
20157244 IC EPROM 27C32 IC3 V2R1
44116739 X-tall 6 MHz X1
44126068 DIP-switch KSD04 SW1
44122604 Plug-in strap

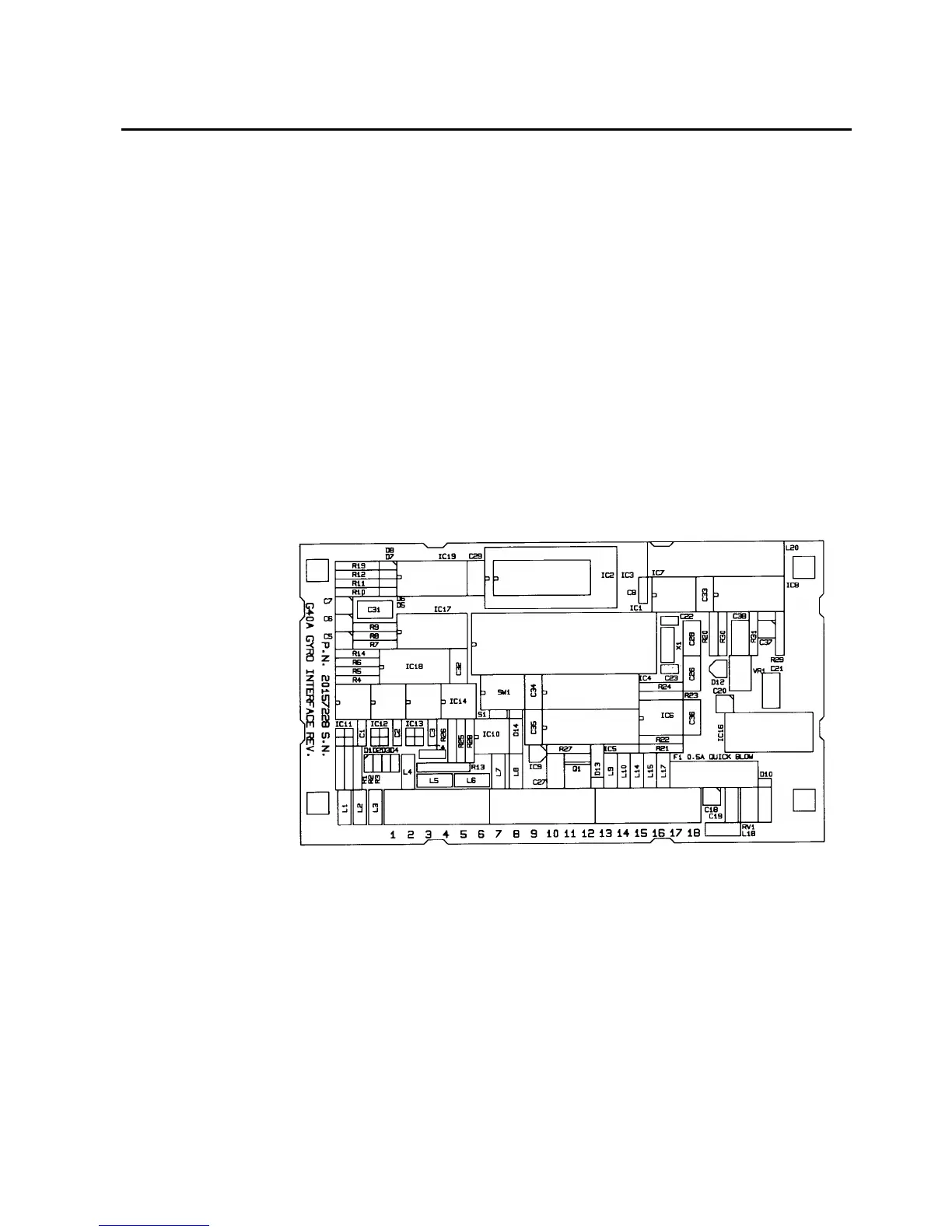

Fig. 8-4
G40A Component reference
G40A Gyro
Interface
