Simrad ROBERTSON AP45 User Manual

Robertson AP45 Autopilot
Spare parts and drawings
Simrad Robertson AS
Egersund - Norway
Page 8-7
20158200 G45 Gyro Interface (1:1 SYNC)
20158226 G45 PCB ass'y
20158283 G45 Cable w/ plug
20158242 G45 Coil, L2
20158259 G45 Filter, L4
44157287 Trimpotmeter VR3
44158319 Capacitor EL 470MFD 63V, C3
44158327 Capacitor EL. 470MF 63V, C21
44123685 Capacitor EL. 1000MF 25V, C27
44127553 Capacitor 10MF/50V, C5,6,9,13,29
44116812 Diode 1N4006, D18
44103422 Diode 1N4148, D2,3,8,10-12
44104123 Diode MR851, D5
44115566 Diode LM336 Z 2.5, D14
44155174 Zener diode RD 14 15V 0.5W, D4,6,7,9,13
44157188 Transistor 2N4403, Q1
44103893 IC CA324G / LM324J, IC7
44126738 IC LM 311 N/CA 311 E, IC6
44157832 IC LM675T Bipol OP AMP, IC1
44158707 IC ME5535N MOS Dual OP AMP, IC5
44112233 IC Voltage regulator LM317T, IC8
44157824 IC LT1071T Switch regulator, IC2
44154300 IC 8038 Waveform generator, IC9
44118727 IC Analogue gate 4066 CP, IC4
44119097 Diode LED Green HLMP0504, D1
20158267 Transformer G45, T1
44120624 Ferrite Bead Inductor, L1,3
44114551 Terminal Block 4P 1.5MM2 16A, TB1-6
44111409 Capacitor 4,7MF 35V, C28
44118529 IC Dual OP AMP LM358 DIL 8, IC3
44109411 Trimpotmeter 10K, VR1,2,4

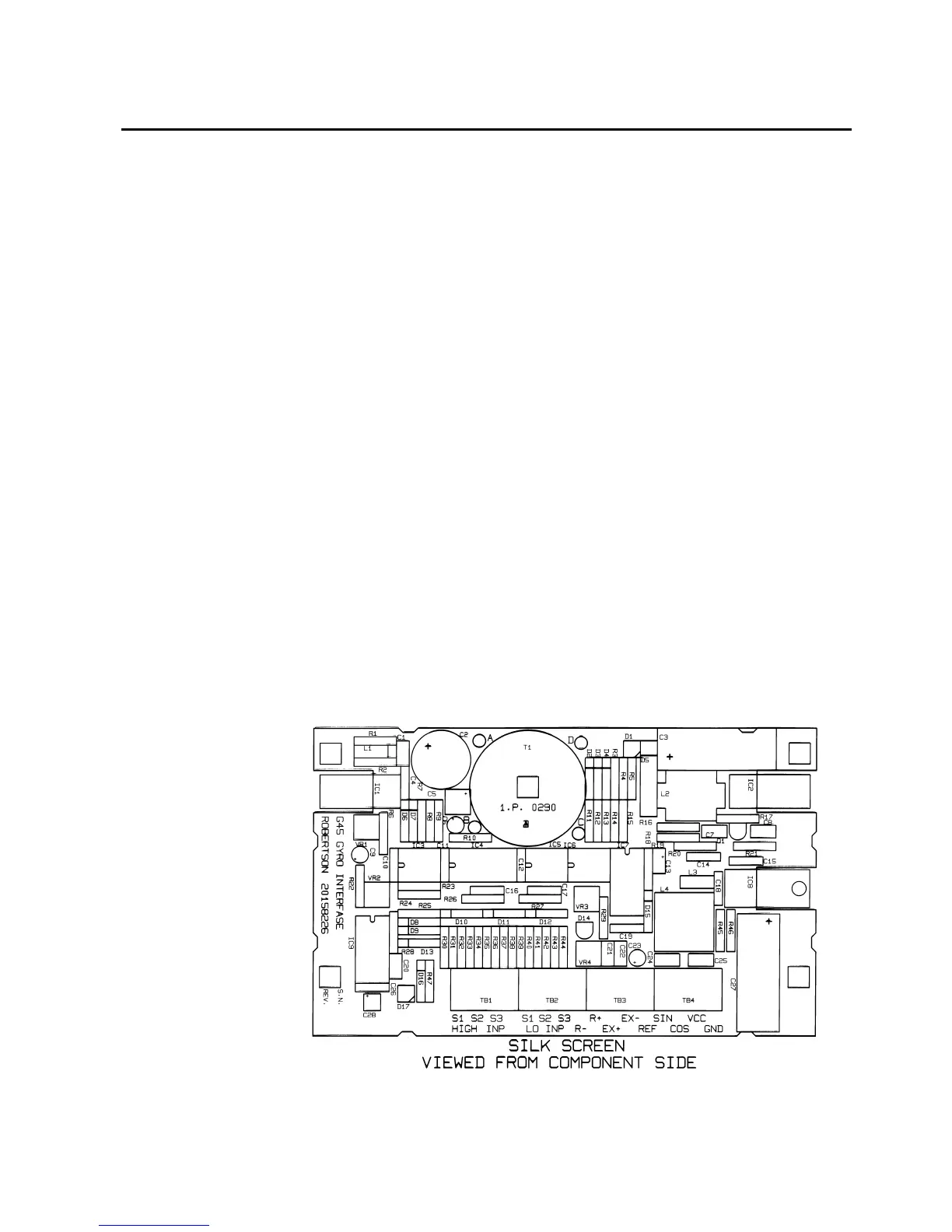

Fig. 8-6
G45 Component reference
G45 Gyro Interface
