Simrad ROBERTSON AP45 - J45 S Junction Unit; J45 A Junction Unit; Imensions

Robertson AP45 Autopilot
Technical specifications
Simrad Robertson AS
Egersund - Norway
Page 4-7
Dimensions:................................................See Fig. 4-8.
Protection: ..................................................IP22
Ambient temperature, storage:............–25 - +70°C
operation: ........0 - +55° C
Safe distance to magnetic compass:..........1.5 m
Supply voltage:...........................................12, 24, 32V DC ±20%
Max. solenoid load:.....................................3A
Dimensions: ................................................See Fig. 4-8.
Protection:...................................................IP22
Ambient temperature, storage: ............–25 - +70°C
operation: ........0 - +55° C
Safe distance to magnetic compass:..........1.5 m
Max. motor load:.........................................10A continuous
20A peak
Supply voltage:...........................................12, 24, 32V* DC ±20%
*) For 32V DC the J101A/32V Adapter must be used.

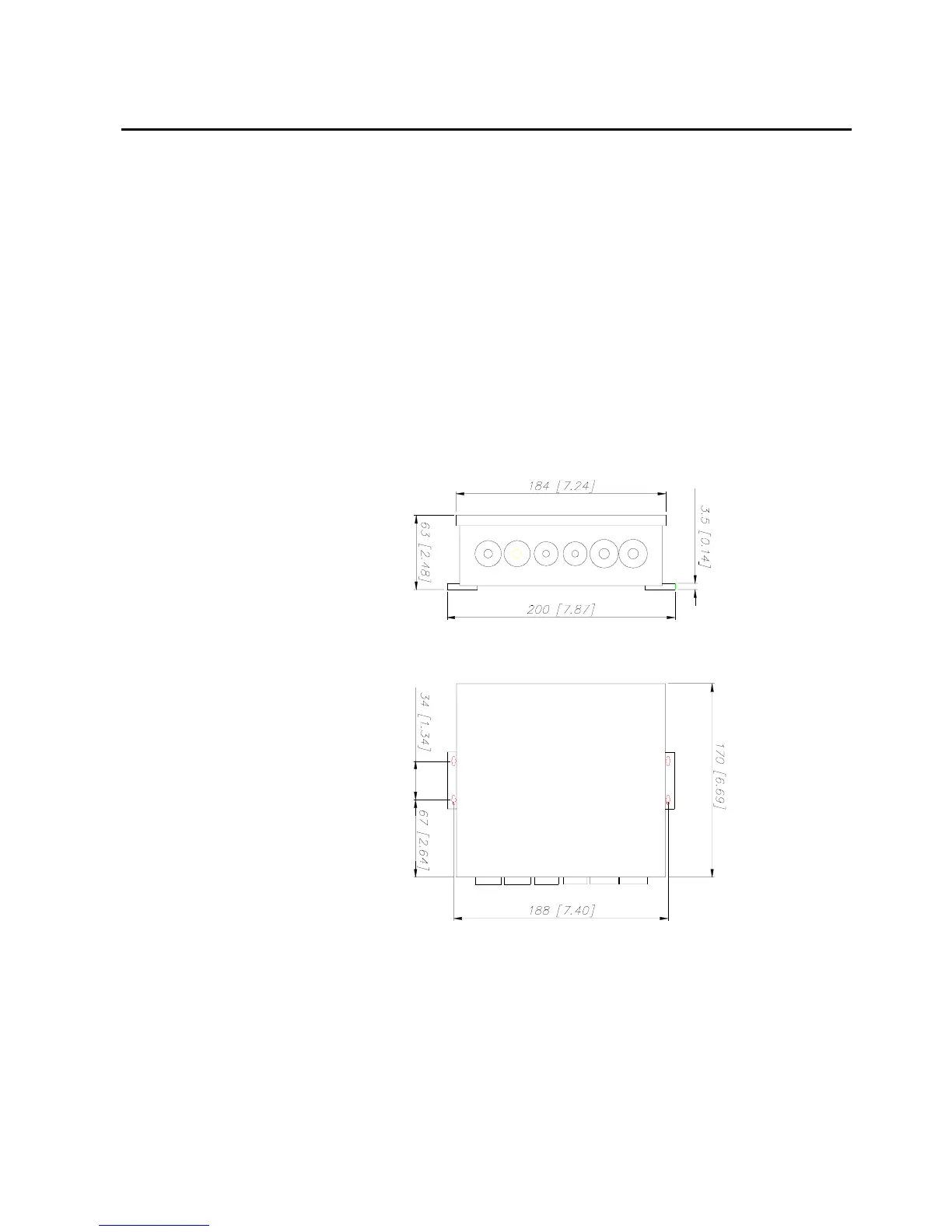

Fig. 4-8
J45S/J45A/G45 - Dimensions
J45S Junction Unit
J45A Junction Unit
