Simrad ROBERTSON AP45 - RF14 XU Rudder Feedback Unit; F Eedback Unit - Dimensions

Page 4-6 Robertson AP45 Autopilot
Technical specifications
Simrad Robertson AS
Egersund - Norway
Dimensions: ................................................See Fig. 4-7.
Protection:...................................................IP56
Ambient temperature: ...............................–10 - +55°C
Operating voltage:......................................19-40V
(Frequency section 12-40V DC)
Voltage output, Rudder indicator:.............0-18V DC (9V as midship reference)
Frequency output, Autopilot feedback:.....3400Hz (midship reference)
Port: +20Hz/degree, stbd: -20Hz/degree
Rudder indicator capacity:.........................5 indicators in parallel
Rudder angle: .............................................+/-45° (Changeable to 60, 70 or 90°)
Limit switches: ...........................................Adjustable from ±5 to ±160°
120 (4.8")
40 (1.6")
75 (3")
80 (3.15")
Ø12 (0.47")
185 (7.3")
150 (5.9")
240 (9.5")
160 (6.3")
Ø
8
(
0
.
3
"
)

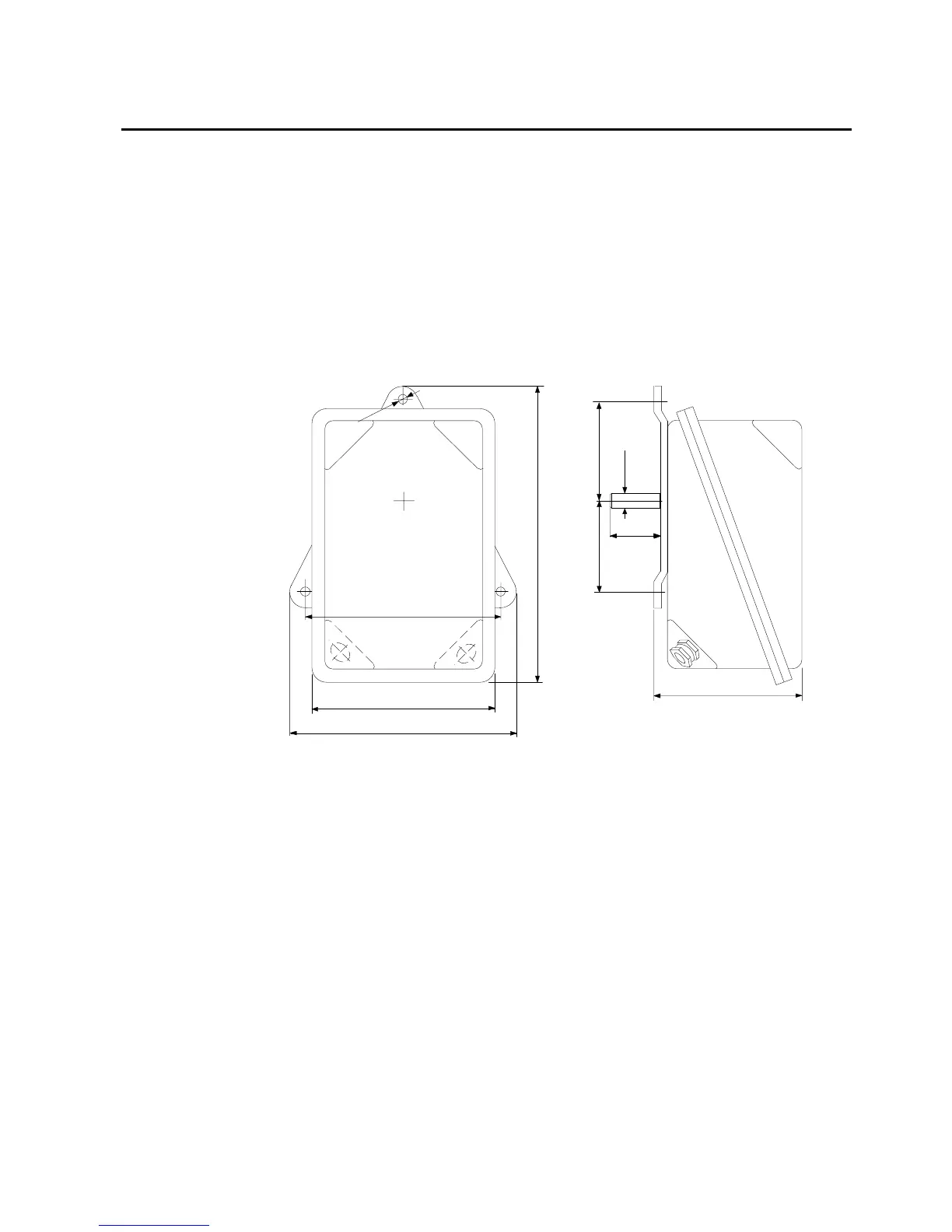

Fig. 4-7
RF14XU Rudder Feedback unit - dimensions
RF14XU Rudder
Feedback Unit
