Page 4-12 Robertson AP45 Autopilot
Technical specifications
Simrad Robertson AS
Egersund - Norway
Dimensions:................................................See Fig. 4-15.
Supply voltage:...........................................24/32V DC ±20%
Current consumption:................................Maximum 100 mA
Input signal: ................................................. Voltage (0-18V) or
current (0.1 - 1.1mA)
Rudder angle: .............................................45°-0-45° (other angles as option)
Ambient temperature, storage: ............–25 - +70°C
operation: ........–10 - +55°C
Protection:...................................................IP56
Safe distance to magnetic compass:..........2.6 m (9 ft.)
Rudder Feedback Units: RF45X, RF14XU, RF14XI.
137 (5.40")
144 (5.67")
Panel cut-out:138x138 (5.44")
65 (2.56")
57 (2.24")
144 (5.67")
153 (6.02")
RI9

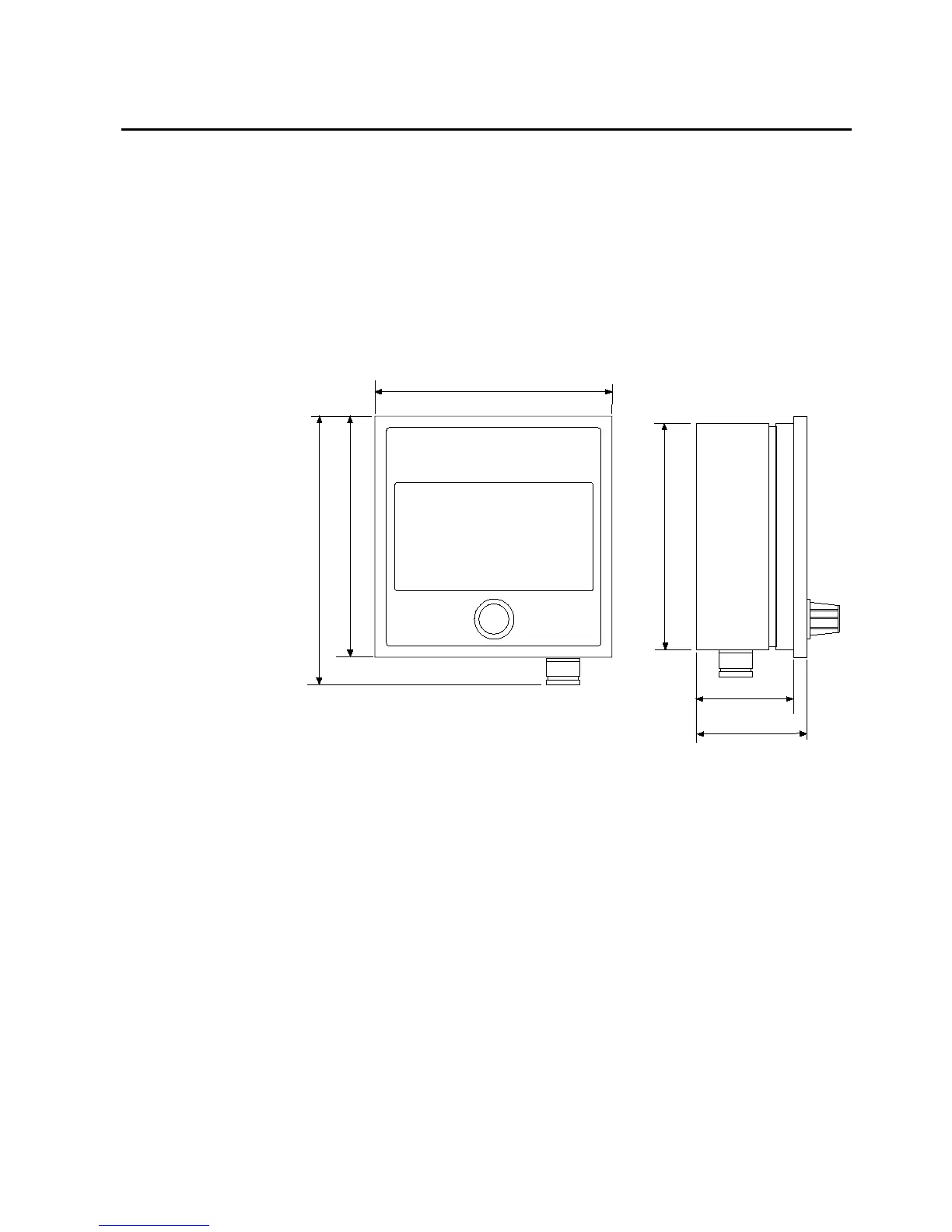

Fig. 4-15
RI9 Rudder Angle Indicator - Dimensions
RI9 Rudder Angle
Indicator
