Simrad ROBERTSON AP45 User Manual

Page 4-8 Robertson AP45 Autopilot
Technical specifications
Simrad Robertson AS
Egersund - Norway
Dimensions:................................................See Fig. 4-9.
Protection: ..................................................IP56
Ambient temperature:...............................–25 - +70°C
Safe distance to magnetic compass:..........0.3 m
Max. inductive load:...................................4A/24V DC, 60mA/110W AC,
25mA/220V AC
137 (5.40")
144 (5.67")
Panel cut-out:138x138 (5.44")
78 (3.1")
70 (2.75")
144 (5.67")
95 (3.75")

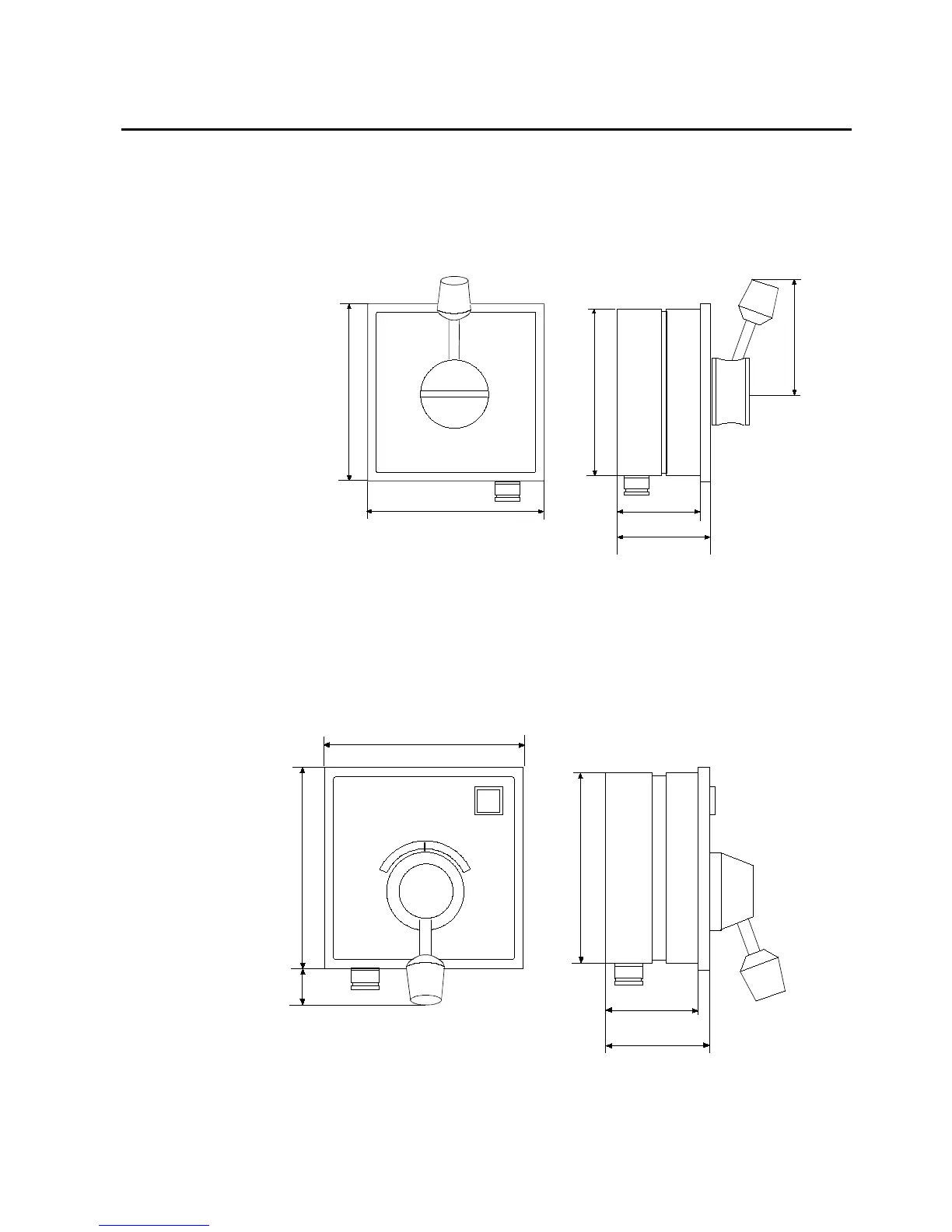

Fig. 4-9
S9 Steering Lever - Dimensions
Dimensions: ................................................See Fig. 4-10.
Protection:...................................................IP56
Ambient temperature, storage: ............–25 - +70°C
operation: ........–10 - +55°C
Safe distance to magnetic compass:..........0.3 m
144 (5.67")
68 (2.68")
76 (3.00")
137 (5.40")
144 (5.67")
30 (1.18")
Panel cut-out:138x138 (5.44")
Fig. 4-10
FU91 Steering Lever - Dimensions
S9 Steering Lever
FU91 Steering Lever

Simrad ROBERTSON AP45 Specifications

General

Brand	Simrad
Model	ROBERTSON AP45
Category	Autopilot System
Language	English
